Home > Products > Interlocking brick machine > WT2-20M diesel engine mud brick making machine with hopper and mixer

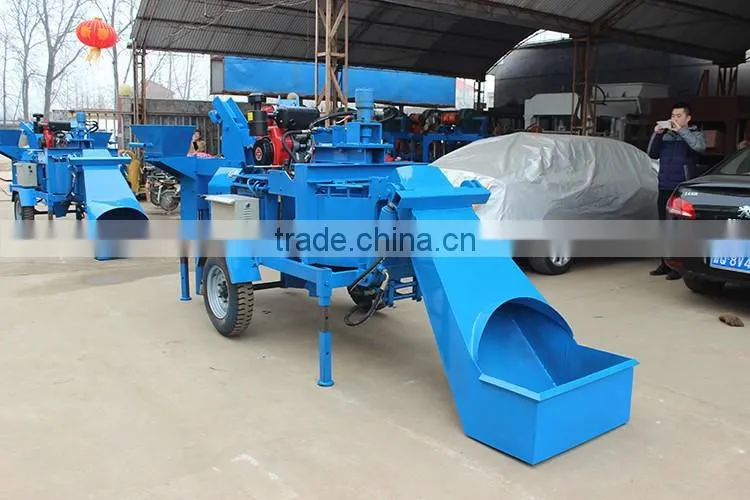

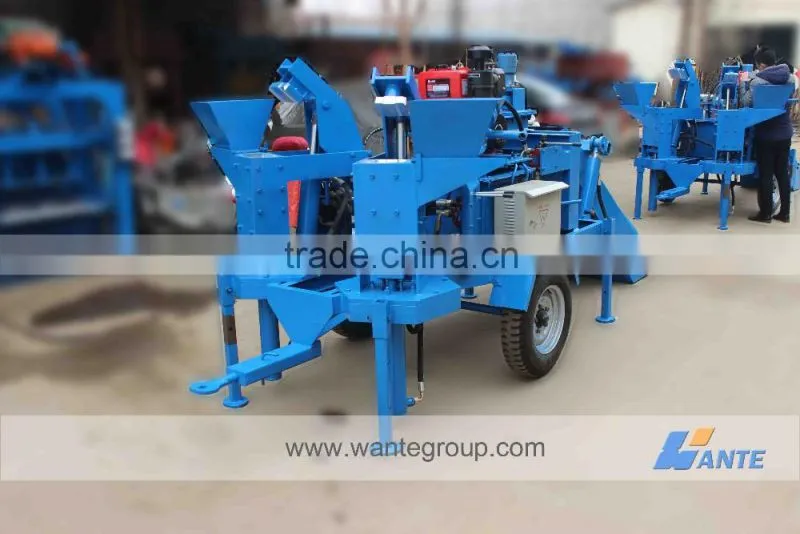

WT2-20M diesel engine mud brick making machine with hopper and mixer
- 20 Set / Sets per Month
- qingdao
- T/T Credit Card
- WT2-20M mud brick machine,eco brick machine for sale
- WT2-20M clay brick making machine for sale,block press for sale
- WT2-20M compressed earth block machine,earth brick press machine
- QT4-24 Cheap hollow core slab making machine
- WT1-25 Interlocking Brick Machine
- High quality best selling WT1-25 hand press soil brick making machine clay interlocking pavers Supplier's Choice
Product Details
Condition: | New | Type: | Interlock Block Making Machine | Brick Raw Material: | Clay |
Processing: | Brick Molding Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 2000-2500 pcs/day | Place of Origin: | Shandong, China | Brand Name: | WANTE |
Model Number: | M7MI | Voltage: | diesel engine | Dimension(L*W*H): | 2900x1500x1600mm |
Certification: | ISO/CE | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |

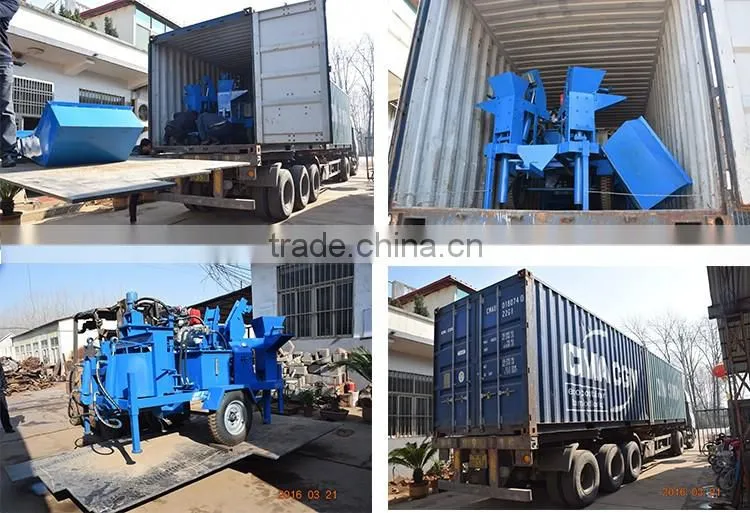

Packaging Details
wood package
Product Description

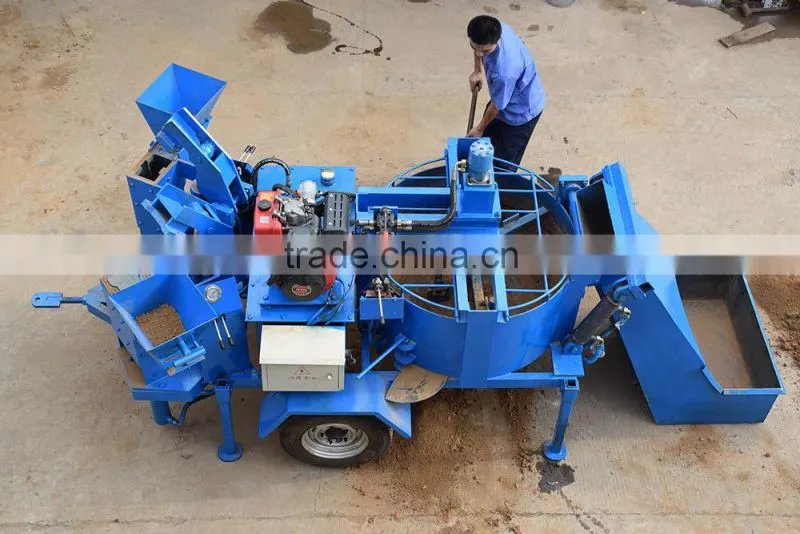

The SUPER M7MI is the latest development ,boasting an improvement of over 45% in production. The minimum daily production of 2200 blocks is equal to 45,000 blocks per month that could produce nine 50m² houses. The SUPER M7MI is an upgrade to the M7MI machine and retains its key features; an integrated pan mixer, diesel engine, all fitted on a mobile frame. The machine is the ideal solution for projects where the machine can be easily moved from site to site and the blocks produced as required.
WT1-20M SUPER M7MI interlocking block machine advantage |
1>M7MI type
2>Diesel engine as power
3>Factory for sale for 21 years
4>Super hydraulic pressure
5>Using soil, clay material, cheap cost
6>Double hopper, more capacity, higher effeiciency
WT1-20M SUPER M7MI interlocking block machine parameter |
Overall size | 2580(L)×1080(W)×1400(H)mm |
Shaping cycle | 20 seconds |
Power | 5.5 KW |
| 18 Hp diesel engine |
Pressure | 16Mpa |
Total weight | 1200 KGS |
WT1-20M SUPER M7MI interlocking block machine capacity |
No. Block Size Piece/mould pieces/hour pieces/day | ||||
1 | 230*220*110mm | 1 | 200-250 | 1600-2400 |
2 | 230*140*110mm | 1 | 200-250 | 1600-2400 |
3 | 230*230*115mm | 1 | 200-250 | 1600-2400 |

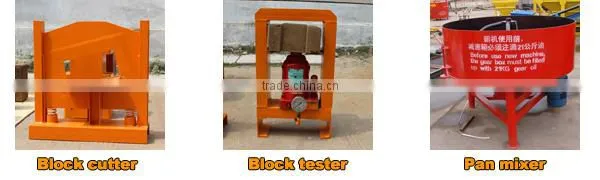

Accessory
Clay proportation:
This is the most popular proportion in making block making machine:
(1)cement,clay
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 6-8% |
clay | 80-90% |
Other specify | You can change the proportion depend on your needs. This block is heavy,but strong |
(2)Full clay
Raw Materials | Quantity per piece |
Water | 3% |
clay | 90-95% |
Other specify | You can change the proportion depend on your needs. This block is light,but not so strong |

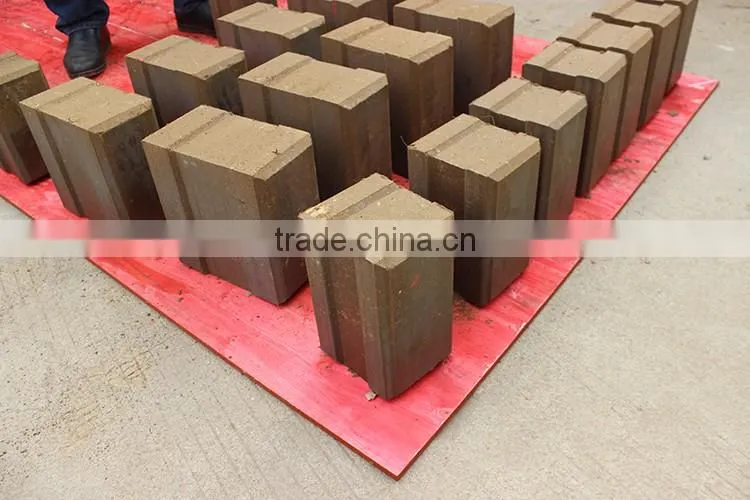

M7MI block making machines hydraulically compress soil that contains a small amount of clay and silt mixed with cement into soil cement blocks. When cured, the blocks can be dry-stacked with no mortar. soil cement interlocking blocks lock front and back, top and bottom so each block is dry stacked and locked into place. The unique dry-stacking building system uses mortar in the first few courses and the top 3-4 courses. The rest of the super structure is dry-stacked representing significant savings in time and construction costs. M7MI machines are ideal for remote sites where transport, cement and sand costs are high. They're also an eco-friendly, cost-saving alternative to conventional cement brick and block machines. M7MI machines are also available in diesel or electrical options.

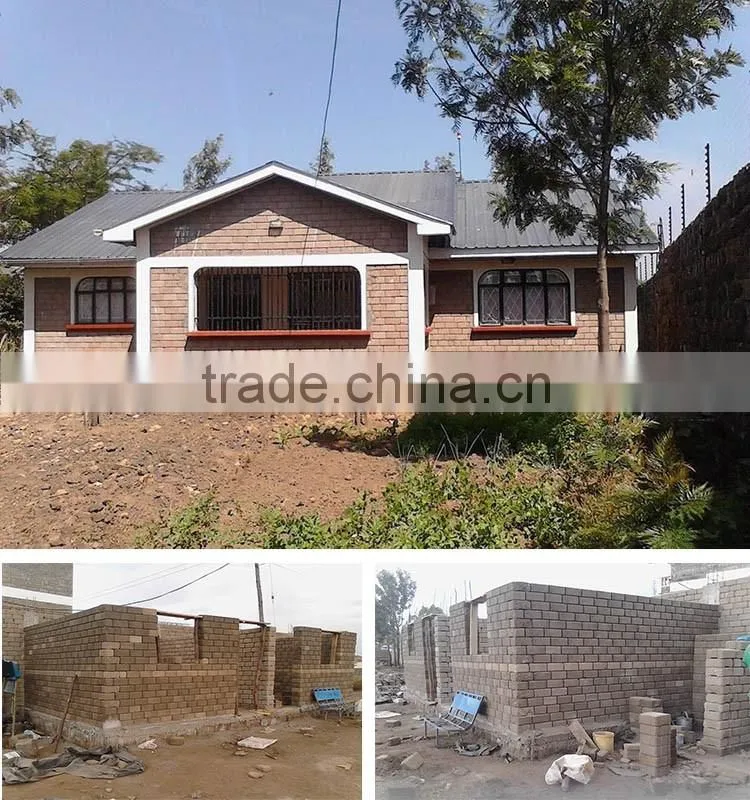

House build with interlocking bricks produced by WT2-20M
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry.
Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation.
Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service.
We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
