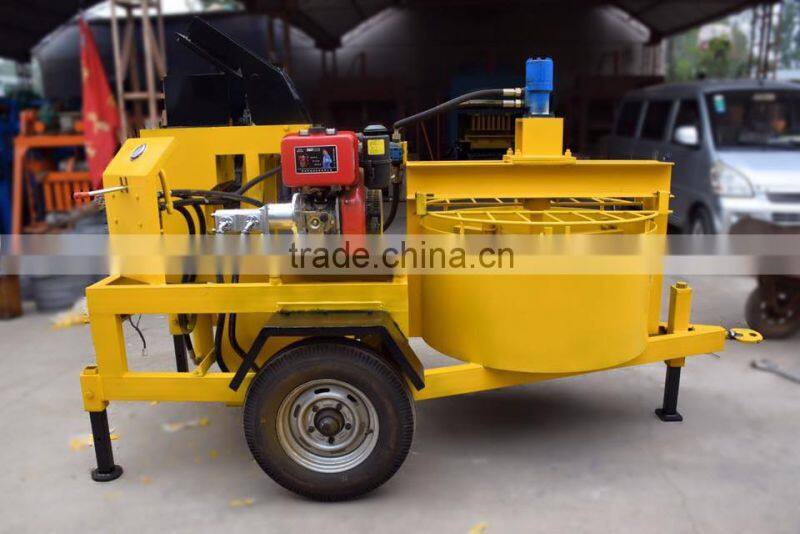

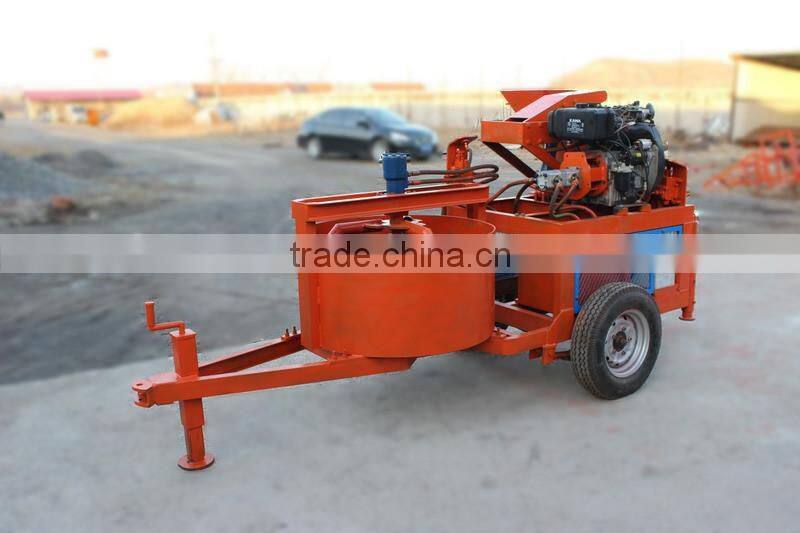

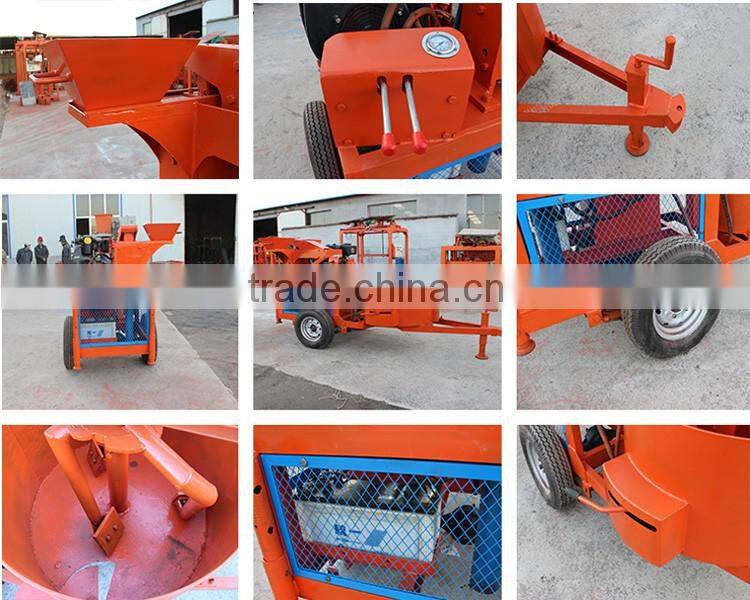

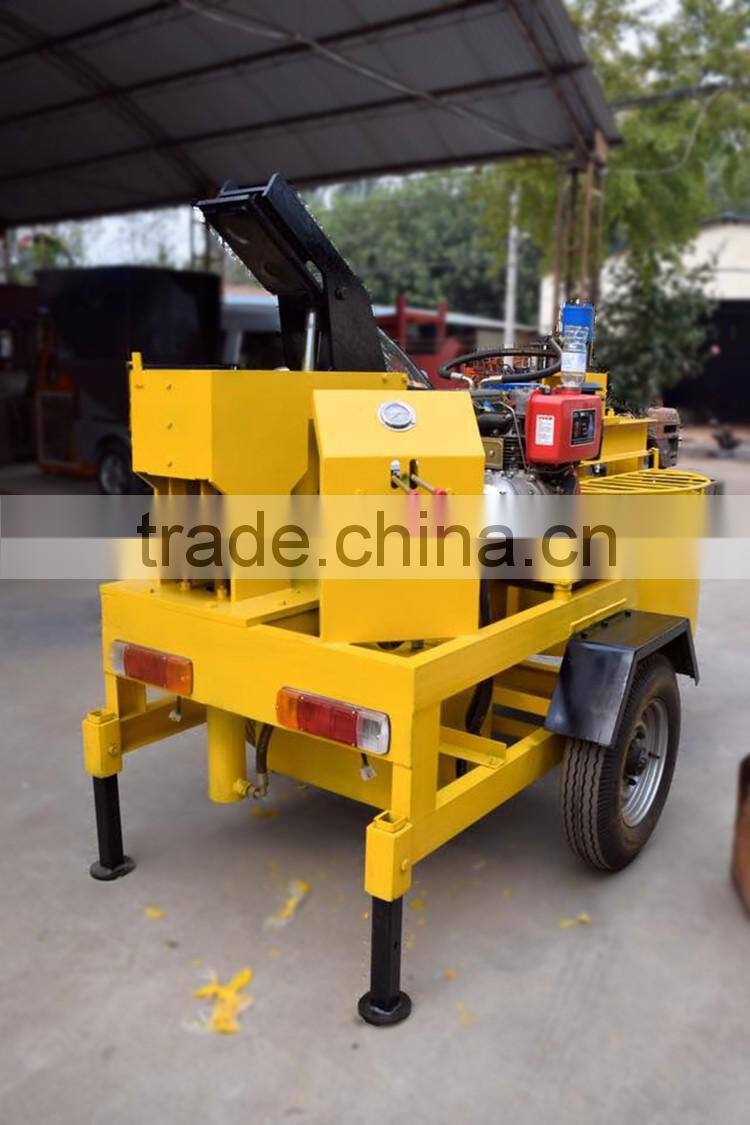

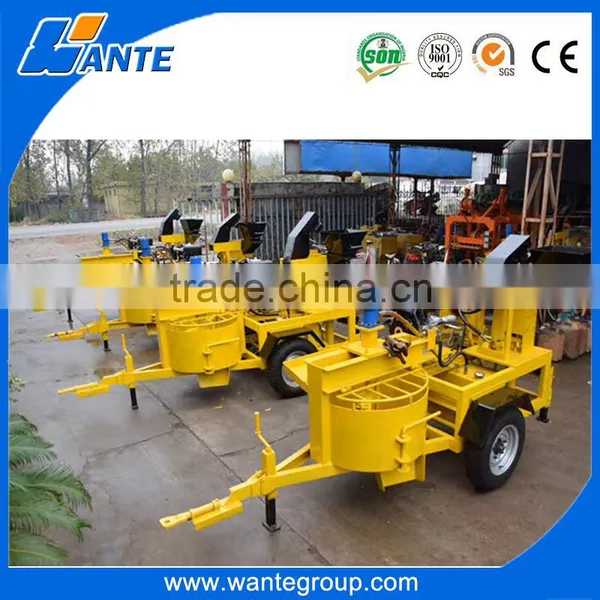

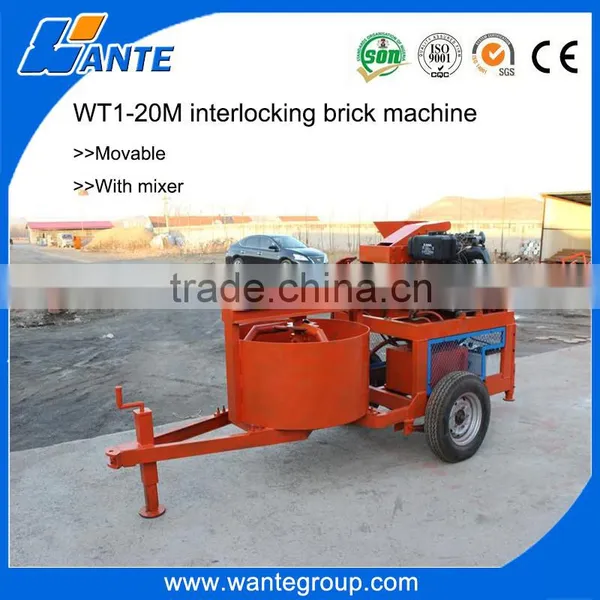

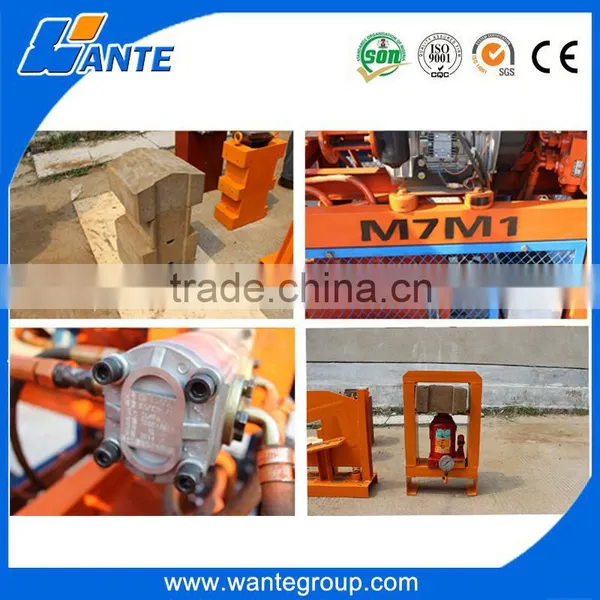

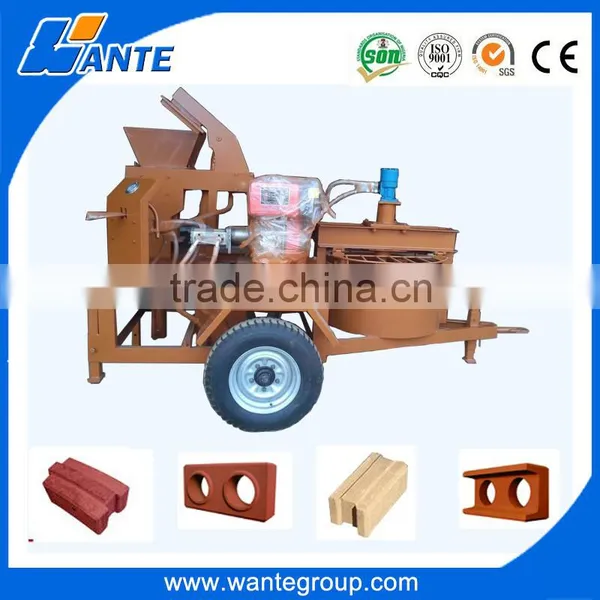

WT1-20M SUPER M7MI interlocking block machine advantage |
1>M7MI type
2>Diesel engine as power
3>Factory for sale for 21 years
4>Super hydraulic pressure
5>Using soil, clay material, cheap cost
6>Double hopper, more capacity, higher effeiciency
WT1-20M SUPER M7MI interlocking block machine parameter |
Overall size |
2580(L)×1080(W)×1400(H)mm |
Shaping cycle |
20 seconds |
Power |
5.5 KW |
|
18 Hp diesel engine |
Pressure |
16Mpa |
Total weight |
1200 KGS |

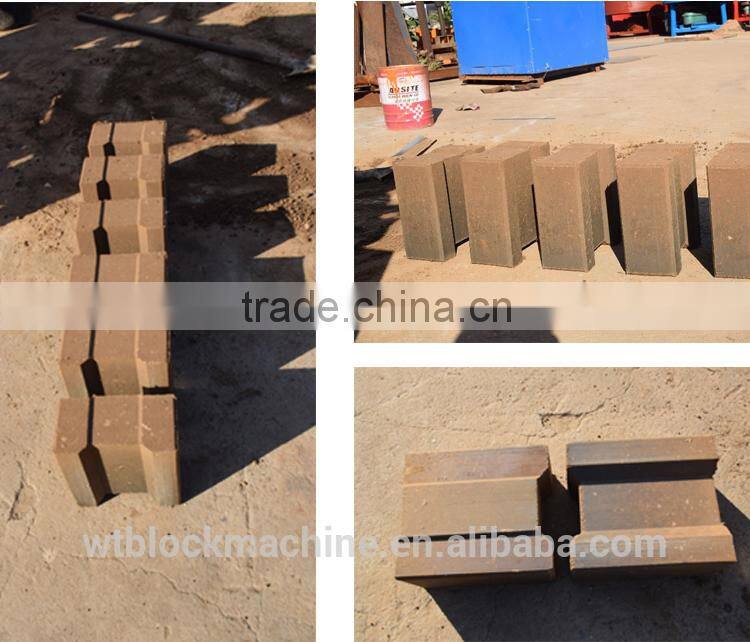

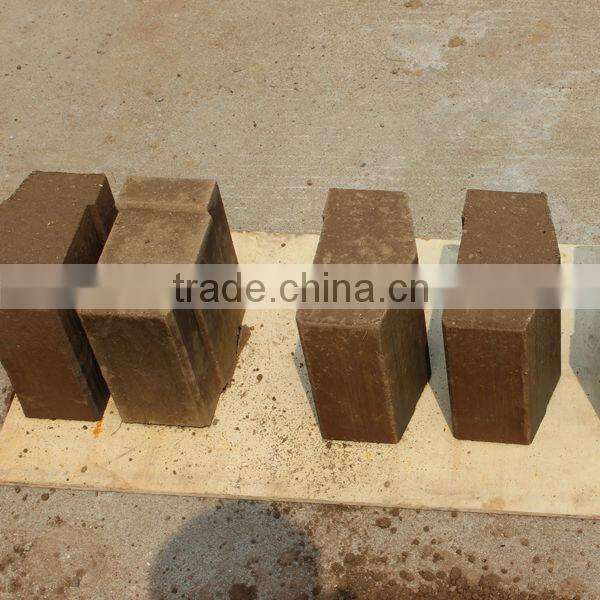

WT1-20M SUPER M7MI interlocking block machine capacity |
No. Block Size Piece/mould pieces/hour pieces/day | ||||
| 1 | 230*220*110mm | 1 |
200-250 |
1600-2400 |
| 2 | 230*140*110mm | 1 | 200-250 |
1600-2400 |
| 3 | 230*230*115mm | 1 | 200-250 | 1600-2400 |

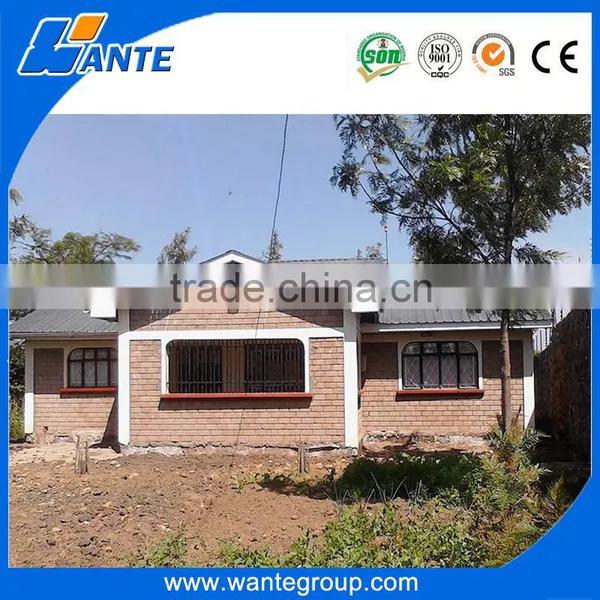

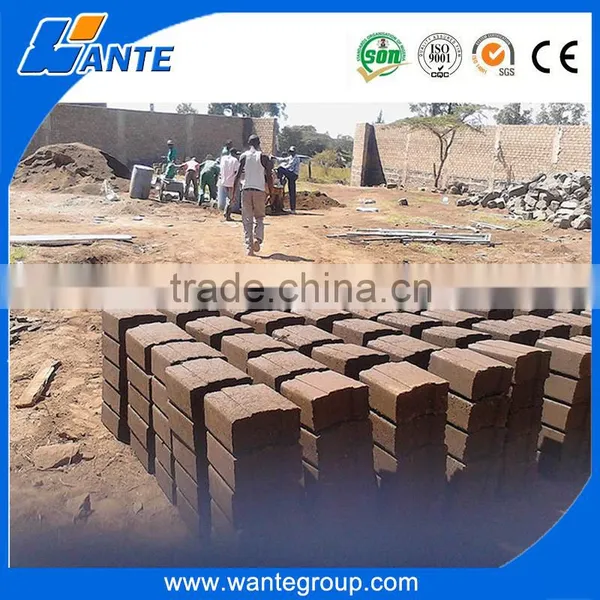

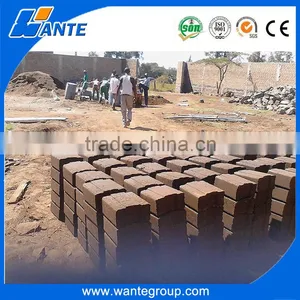

WT1-20M block making machines hydraulically compress soil that contains a small amount of clay and silt mixed with cement into soil cement blocks. When cured, the blocks can be dry-stacked with no mortar. soil cement interlocking blocks lock front and back, top and bottom so each block is dry stacked and locked into place. The unique dry-stacking building system uses mortar in the first few courses and the top 3-4 courses. The rest of the super structure is dry-stacked representing significant savings in time and construction costs. WT1-20Mmachines are ideal for remote sites where transport, cement and sand costs are high. They're also an eco-friendly, cost-saving alternative to conventional cement brick and block machines.WT1-20M machines are also available in diesel or electrical options.

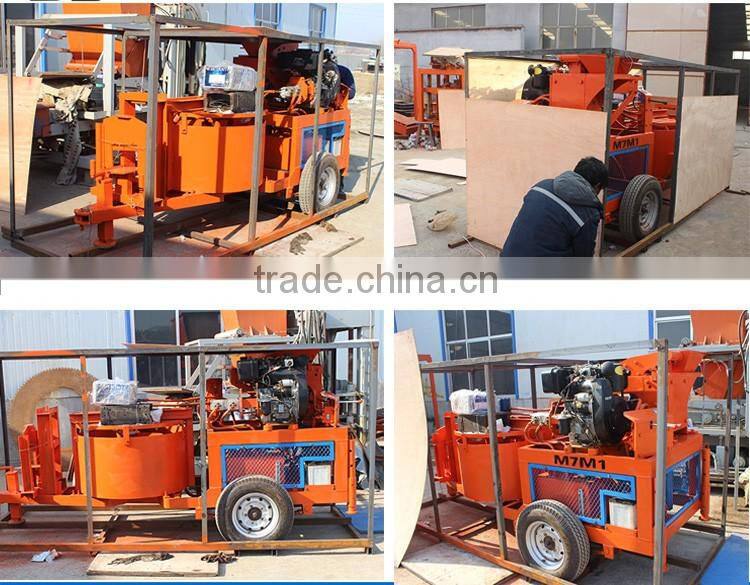

1.The machine usually transported by sea or by train.It depends on your country and port.
2.The package is according to customer's request,wood package,iron box,or nude package.
3.we have a good cooperation with the shipment company ,we give the client the best transport plan and the best freight cost.
1 Provide the space planning, plant planning,and equipment layout,
2 Provide on-site equipment installation, commissioning until normal production;
3 Train the workers in production operations, equipment maintenance
4 Provide the necessary production technology formula and costing budget
5 Guarantee one year warranty,spare parts supply
6 Supply molds and accessories in costing price
Storage in factory |
