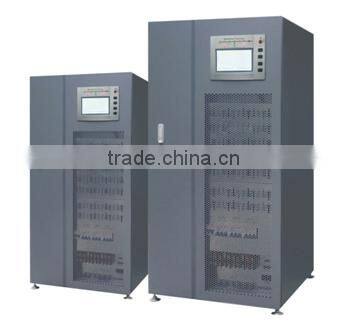

M33, Three Phase LED LCD 380VAC Low Frequency Online UPS

M33, Three Phase LED LCD 380VAC Low Frequency Online UPS thumbnail-1
M33, Three Phase LED LCD 380VAC Low Frequency Online UPS photo-1
US$ 2,330 - 31,330 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
kemapower
Model Number:
M33
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name kemapower
Model Number M33
Phase Three Phase
Protection Short Circuit
Weight 48-70KG
Output Voltage 380VAC
Type On-line
Application Instrumentation

Key Features

1.Three phase in, three phase out
2.Microprocessor control
3.100% unbalance protection design
4.True on-line double conversion design providing
5.Full protection,overload,over voltage,short circuit,over temperature etc.
6.Isolated output
7.Sine wave pulse width modulation
8.Sixth generation IGBT,much higher efficiency,lowe temperature,more reliable
9.Wide Input voltage windows
10.Pure sine wave output less than 3% THD
11.Expandable battery run time
12.Generator compatible
13.Cold start
14.Load/Battery power meter display

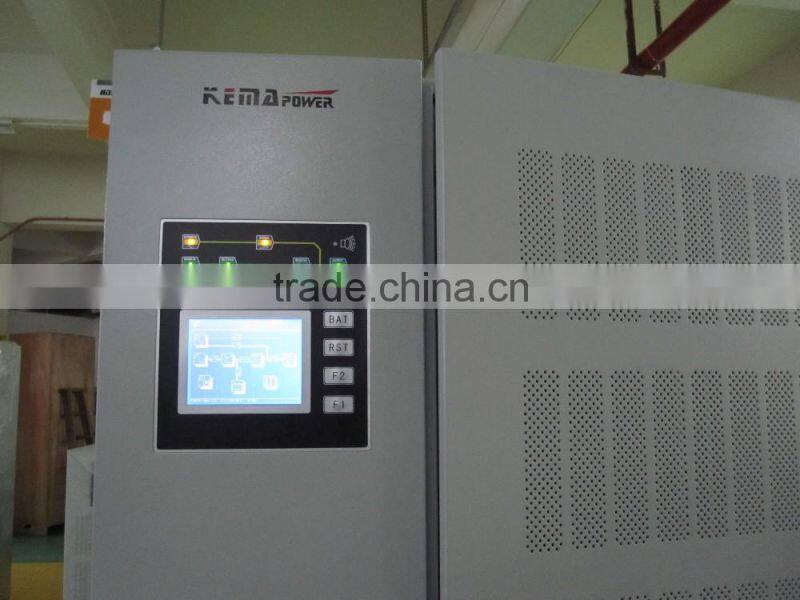

15.Overload, on-line, battery status LED/LCD
16.Advanced Battery Management
17.Automatic charging in UPS off mode
18.with ECO and EPO Mode for Choice
19.Smart RS-232 and Rs485 communication port
20.Optional SNMP card and try contact connection
21.Option battery manage function



Technical  specifications
Rectifier parameters Mode  M33-10K M33-20K M33-30K M33-40K M33-50K M33-60K M33-80K M33-100K M33-120K M33-160K M33-200K M33-250K M33-300K M33-400K M33-500K
Nominal capacity(KVA) 10 20 30 40 50 60 80 100 120 160 200 250 300 400 500
Phase number 3L+N+G
Input power factor ≥0.85(option ≥0.95)
Input rated voltage 380VAC,400VAC,415VAC(option208VAC,220VAC)
Range ±25%
Input nominal frequency 50Hz±10%,60Hz±10%
Input overtone current 6pulses rectifier<30% 12pulses rectifier<5%
Output ripple wave <2%
Soft start 0-100% 5sec
Charging Charge mode constant current first then constant voltage,charge with temperature compensation,automatic switch of even charge and float charge,programmable timing battery charge-discharge automatic maintanace
Folat charging voltage 432VDC
Equalized charging voltage 445VDC
Temeperature compensation voltage 3mV℃(Cell battery)
Charging current 0.1C(automatic adjust according to battery capacity
Charging power 20% of rated capacity
Battery Type  maintenance-free lead acid battery
Capacity 7-999AH settable(capacity vary with power)
Battery number 12V-32pcs,2V-192pcs(option 208 VAC,220VAC)
Invertor Phase number 3 phase+N
Rated power rated capacity*0.9
Nominal voltage 380VAC,400VAC,415VAC(option208VAC,220VAC)
Output voltage stability ±1%(steady load),±3%(fluctuation of load)
Frequency stability 50Hz,60Hz<±0.5%(desynchronised)
Factor of wave crest >5:1
Output waveform distortion degree sine wave,linear load<3%;non-linear load<5%
Dynamic feature transient voltage<±5%(jump form 0%to 100%),instant recovery time<10ms
Unbalance load voltage <±5%
Overload protection 115% normal work 125% 10min,150%lmin,200%ls
Invertor efficiency >95%(full load)
Bypass Phase number 3 phase+N
Input nominal voltage 380VAC,400VAC,415VAC(option208VAC,220VAC)
Output nominal voltage 380VAC,400VAC,415VAC(option208VAC,220VAC)
Switching time 0ms(adopted static switch)
Protection Input protection voltage,frequency ultralimit,phase wrong,phase lost
Output prorection overcurrent,short circuit,powr factor low
Battery protection overcharge,overdischarge
Overheat protection environmental thermal,inverter overheat protection
Hardware fault protection auxiliary power supply abnormal,breaker trip,fuse break,power device overcurrent or overvoltage
System specification Ecomomic running mode economic mode available,overall efficiency reach up to 98%
Audio alert fuction any failure will be alerted
Work environment ambient temperature:'-30-50℃,relative humidity:30%-90%,altitude:<2000M(power reduce 1%every 100Mraised,4000M utmost)
Cooling method forced ventilation
Telecom interface RS232,RS485,dry contact interface,SNMP card(network remote control)
Redundancy function cascade or multiple hot spare
Anti-surge 10/700uS,20KA
Protection level lp31
Safety performance I/O on ground residtance(3000VAC),stray current less than3.5mA;insulation resistance exceeding 2M∩(500VDC)
Noise(Db) 48-55 55-60 60-65 65-70
Mechanical dimension(W*D*H)mm 600*620*1200 600*720*1500 980*800*1800 1380*950*1800 1600*1150*1800
Weight(Kg) 200 265 310 342 385 402 560 850 910 1300 1680 1750 1830 1980 2080
Remark: all specification subject to change without notice,customer-made specification are acceptable

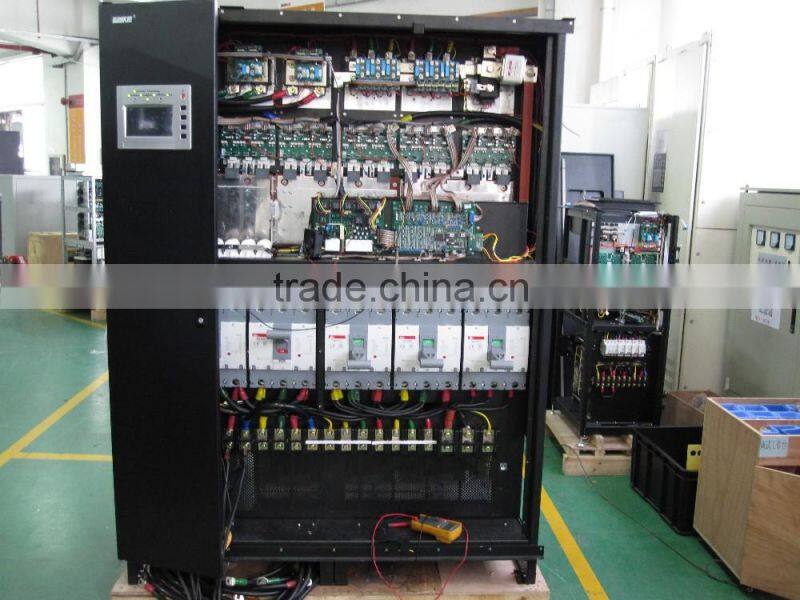

 M33, three phase LED LCD 380VAC Low Frequency Online UPSM33, three phase LED LCD 380VAC Low Frequency Online UPSM33, three phase LED LCD 380VAC Low Frequency Online UPS
