Sine Wave UPS C 6KVA 10KVA 20KVA

Sine Wave UPS C 6KVA 10KVA 20KVA thumbnail-1
Sine Wave UPS C 6KVA 10KVA 20KVA photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
kemapower
Model Number:
C Series
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name kemapower
Model Number C Series
Phase Single Phase
Protection Unbalanced Loads
Output Voltage 220VAC±1%
Type On-line
Application Instrumentation

Key Features

 1.High frequency and double conversion online UPS
 2.Single phase
 3.Fully digitized microprocessor control
 4.Wide input voltage range
 5.Advanced PFC technology
 6.Self-testing when UPS startup
 7.Advanced battery management
 8.Automatic battery charging in UPS off mode
 9.Lightning and surge protection
 10.Short circuit and overload protection
 11.Smart RS232 communication with monitoring software



C  SERIES  TECHNOLOGY SPECS



ITEM MODEL C6K/C6KS C10K/C10KS C15KS C20KS
 Capacity  VA / Watts 6KVA / 4.2KW 10KVA / 7KW 15KVA / 10.5KW 20KVA / 14KW
 Input  Normal voltage 220VAC
 220V Voltage range 176-276V for 24VDC
 Frequency range 40.5~55Hz
 Output  Voltage range 220VAC±1%
 Frequency range 50Hz/60Hz+-0.5% (Battery mode)
 Wave form Pure Sine Wave
 Transfer between AC  mode and battery mode 0 ms
 Transfer between AC  mode and bypass mode "<1ms"
 Distortion (Full Load)  linear load < 3%
 Degree of distortion  (Ful l Load) nonlinear  load < 5%
 Overload capacity 105%~130% 10min, >130% 1min, >150% 200ms
 Load peak ratio 3:1(max)
 Battery for C6K/10K  Type Maintenance free valve regulated lead acid (VRLA) battery
 Battery voltage 240VDC/192VDC 240VDC/192VDC
 Battery number (standard type) 20*12V*7AH or 16*12V*7AH 20*12V*7AH or 16*12V*7AH
 Around backup time (Full load) 8Mins 8Mins
 Around backup time (Half load) 24Mins 24Mins
 Recharge time 90%capacity after 8 hrs charging
 Battery for long backup  type  C6KS/10KS/15KS/20KS 24VDC or 192VDC External battery back.

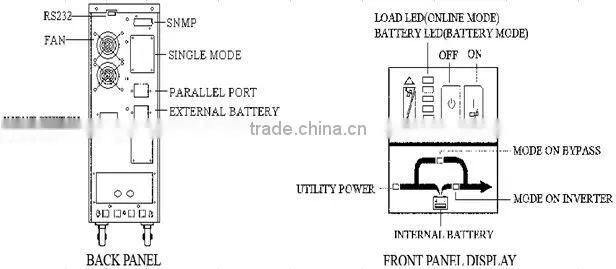

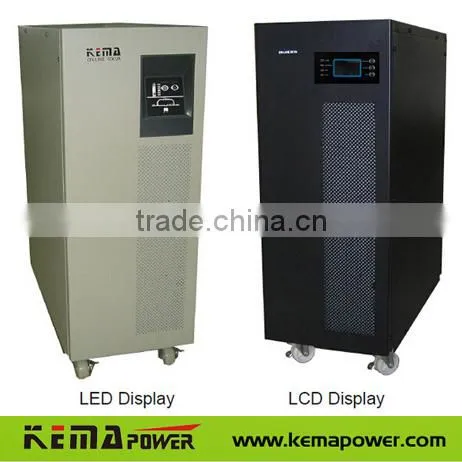

 Display  LED Load level / Battery level / Battery mode / Line mode / Inverter /B ypass /Over load / Fault
 Audible Alarm  Battery Mode Beeping every 4 seconds (re-settable) and every second when battery
 Overload Beeping twice every second
 Fault Beeping Continuously
 Communications  RS-232 Interface With monitoring software
 Working Environment  Surge protection RJ-45 I/O port avai lable for network or Fax/Modem
 Working temperature - 20°C~40°C
 Humidity 0-95% non-condensing
Package dimension WxDxH (mm) 710*440*860 710*440*860 710*440*860 710*440*860
Package size WxDxH (mm) 710*440*960 710*440*960 710*440*960 710*440*960
Package weight Gross weight(Kg) 93/44 101/48 65 65
 REMARK C*K --- Standard Type, C*KS(-N)---- Long Time Type

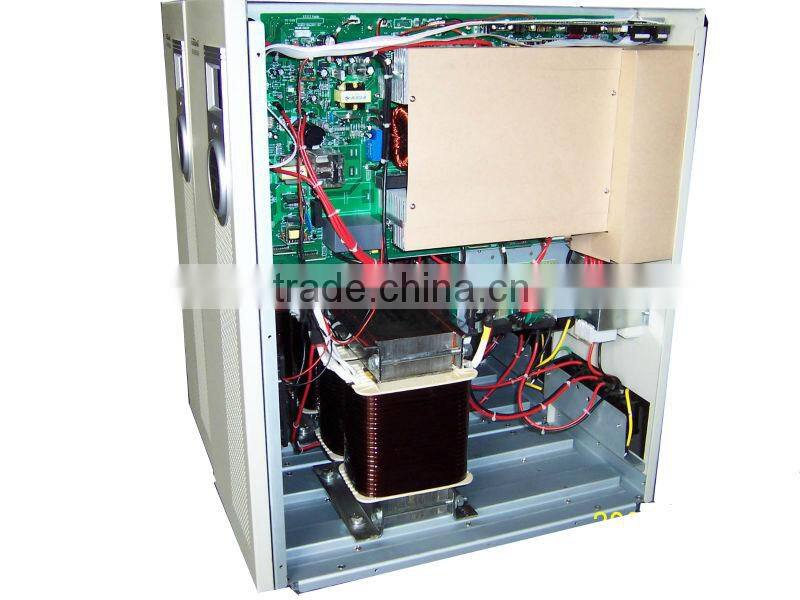

Sine wave UPS C 6KVA 10KVA 20KVA



Sine wave UPS C 6KVA 10KVA 20KVA
