NC6-20KS High Frequency Online UPS

NC6-20KS High Frequency Online UPS thumbnail-1
NC6-20KS High Frequency Online UPS photo-1
US$ 350 - 350 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
kemapower
Model Number:
High Frequency Online UPS C 6KVA 10KVA 20KVA
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name kemapower
Model Number High Frequency Online UPS C 6KVA 10KVA 20KVA
Phase Single Phase
Protection Unbalanced Loads
Weight 65-101KG
Output Voltage 220VAC±1%
Type On-line
Application Instrumentation

Key Features

1. High frequency and double conversion online UPS
2. Single phase, Power Factor 0.8/0.9
3. Fully digitized microprocessor control,Zero transfer time
4. Wide input voltage range and Advanced PFC technology
5. Self-testing when UPS startup
6. Advanced battery management
7. Automatic battery charging in UPS off mode
8. Lightning and surge protection
9. Short circuit ,overload and the others full protection
10. Battery voltage and load capacity display
11. Smart RS232 communication with monitoring software
12. SNMP card optional
13. LCD display,EPO,ECO,USB communication,Maintenance bypass optional
14. LCD with Fault Codes
15. N+X parallel design optional



Technical Specifications
ITEM MODEL N-C6K N-C6KS N-C10K N-C10KS N-C15KS N-C20KS
 Capacity  VA / Watts 6KVA/5.4KW 6KVA/4.8KW 10KVA/9KW 10KVA/8KW 15KVA / 12KW 20KVA/16KW
 Input  Normal voltage 220VAC, L+N+G
Input Voltage range 120V-275V+-5V
 Frequency range 50/60±10 %
Input power factor >0.99(220VAC,full R load)
Generator Support generator input(Generator rating≥2*UPS rating
 Output  Voltage range 220VAC+-1 %
 Frequency range 48Hz/54Hz(AC mode), 50HzX(1±0.1 % )(Battery mode)
 Wave form  Pure Sine Wave
 Transfer Time 0 ms
 Distortion (Full Load)  linear load < 3 %
distortion  (Ful l Load) nonlinear  load < 5 %
 Overload capacity 105 % ~125 % ,1min then transfer to bypass and alarm. 125%~150% 30s then transfer to bypass and alarm,1min then cut off output. >150% ,0.5s then transfer to bypass and alarm.
 Load peak ratio 3:1(max)
192VDC Battery   Type Maintenance free valve regulated lead acid (VRLA) battery
 Battery voltage 192VDC 192VDC 192VDC 192VDC 192VDC 192VDC
 Battery Capacity  internal 16*7AH External internal 16*7AH External External External
 Around backup time (Full load) 4Mins Depended on battery capacity 3Mins Depended on battery capacity
 Around backup time (Half load) 12Mins 9mMins Depended on battery capacity
 Recharge time 7 hours to 90 % capacity  Depended on battery capacity 7 hours to 90 % capacity  Depended on battery capacity
240VDC Battery   Type Maintenance free valve regulated lead acid (VRLA) battery
 Battery voltage 240VDC 240VDC 240VDC 240VDC 240VDC 240VDC
 Battery Capacity  internal 20*7AH External internal 20*7AH External External External
 Around backup time (Full load) 7Mins Depended on battery capacity 5Mins Depended on battery capacity
 Around backup time (Half load) 20Mins 13mMins Depended on battery capacity
 Recharge time 8 hours to 90 % capacity  Depended on battery capacity 8 hours to 90 % capacity  Depended on battery capacity

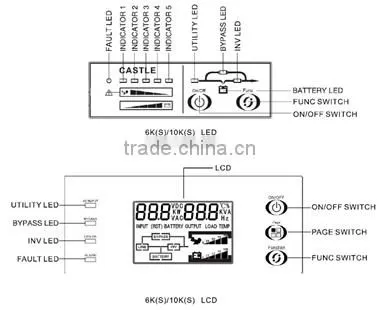

LED Display  LED Load level / Battery level / Battery mode / Line mode / Inverter /B ypass /Over load / Fault
 Audible Alarm  Battery Mode Beeping every 4 seconds (re-settable) and every second when battery
 Overload Beeping twice every second
 UPS Fault Beeping Continuously
Bettery low/charger fault Beeping every 1 second
Bypass mode Beeping every 2 min
L/N inverse Beeping every 2 min
 Communications  RS-232 Interface With monitoring software
working Environment  Working temperature - 20℃~40℃
 Humidity 0-95 % non-condensing
192VDC UPS  Product size WxDxH (mm) 260*565*715 260*565*490 260*565*715 260*565*490 260*565*715 260*565*715
package Size WxDxH (mm) 440*710*980 450*620*670 440*710*980 450*620*670 440*710*980 440*710*980
N.weight(Kg) 58 19 68.5 21 37 37
Gross weight(Kg) 72 25.5 85 27.5 50.5 50.5
240VDC UPS  Product size WxDxH (mm) 260*565*715 260*565*490 260*565*715 260*565*490 260*565*715 260*565*715
package Size WxDxH (mm) 440*710*980 450*620*670 440*710*980 450*620*670 440*710*980 440*710*980
N.weight(Kg) 67 19 75 21 37 37
Gross weight(Kg) 81 25.5 93 27.5 50.5 50.5
optional functions ECO optional
EPO optional
LCD display (optional) input / output VAC & HZ, Load Rate,Battery Rate,Temp.
 REMARK C*k --- Standard Type, C*Ks(-N)---- Long Time Type
