Home > Electrical & Electronics > Power Supply & Distribution > UPS > C 1KVA 2KVA 3KVA High Frequency Online UPS

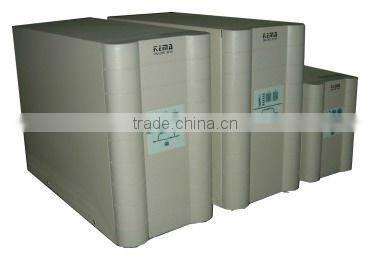

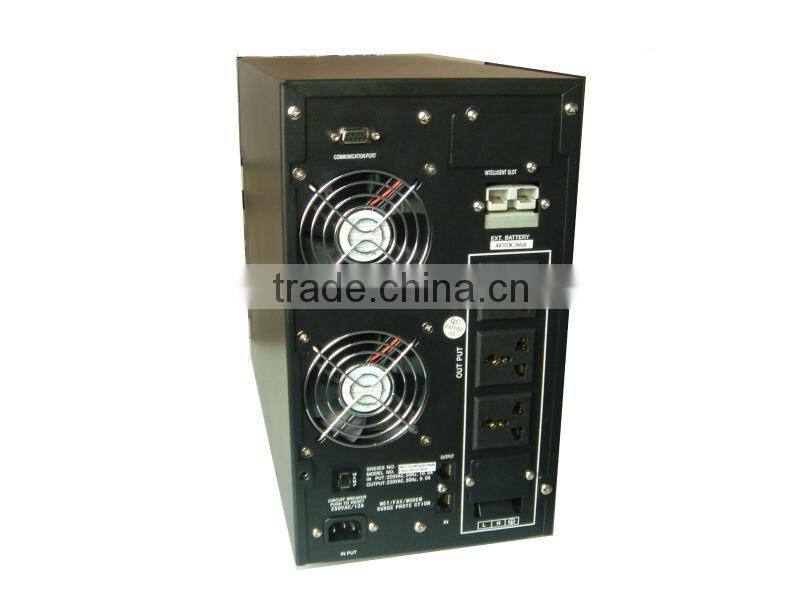

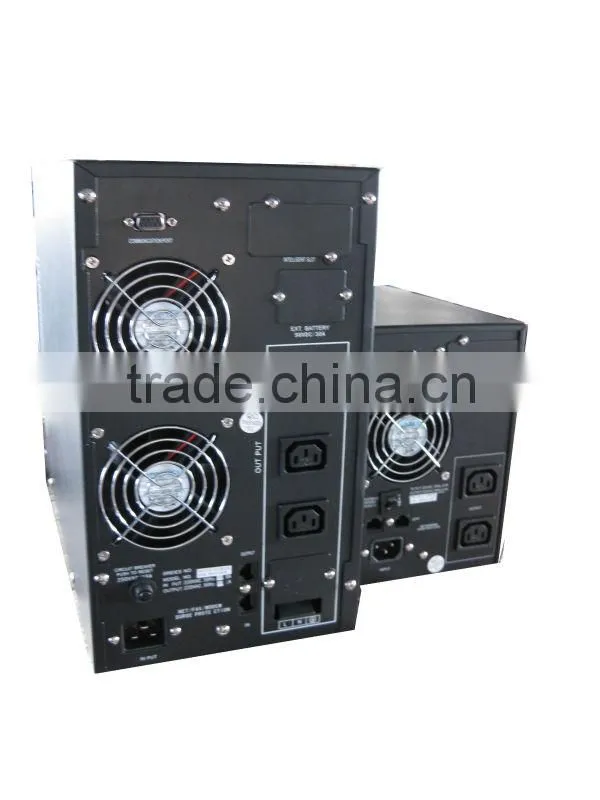

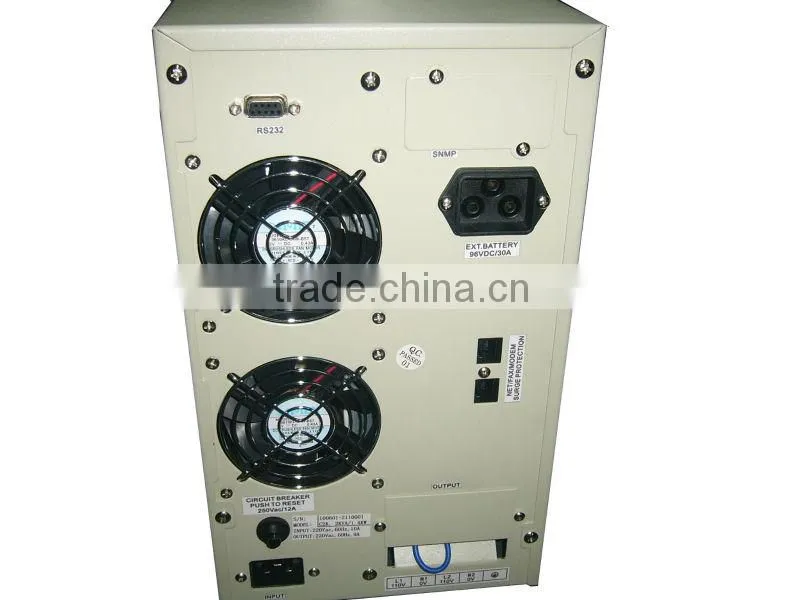

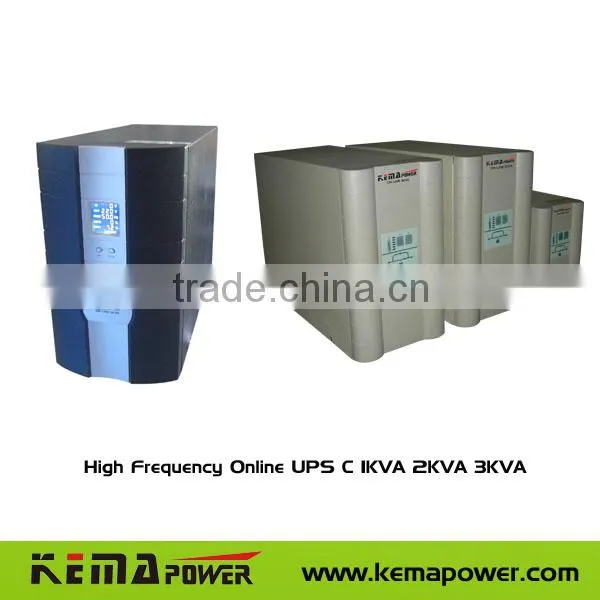

C 1KVA 2KVA 3KVA High Frequency Online UPS

Name: C 1KVA 2KVA 3KVA High Frequency Online UPS
Brand: kemapower
SKU: 112010469
Availability: InStock

C 1KVA 2KVA 3KVA High Frequency Online UPS thumbnail-1

C 1KVA 2KVA 3KVA High Frequency Online UPS photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

kemapower

Model Number:

High Frequency Online UPS C1-3K

Contact Supplier Request Quote Chat Now

Foshan Kemapower Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name kemapower

Model Number High Frequency Online UPS C1-3K

Phase Single Phase

Protection Unbalanced Loads

Weight 30-35KG

Output Voltage 220/110VAC±2%

Type On-line

Application Telecommunications

Online UPS

Key Features

1. High frequency and double conversion online UPS
2. Fully digitized microprocessor control
3. Wide input voltage range
4. Advanced PFC technology
5. Self-testing when UPS startup
6. Advanced battery management
7. Automatic battery charging in UPS off mode
8. Short circuit and overload protection
9. SNMP card is option

10. LCD display is option
11.Lightning and surge protection

C Series SERIES TECHNOLOGY SPECS

Item	Model	C1K/C1KS	C2K/C2KS	C3K/C3KS
Capacity	VA / Watts	1KVA / 0.7KW	2KVA / 1.4KW	3KVA / 2.1KW
Input	Normal voltage	220VAC/ 110VAC
	220V Voltage range	a) (118±5 ~ 300±5) VAC when Load≤50%
	220V Voltage range	b) (140±5 ~ 300±5) VAC when Load>50%
	110V Voltage range	80-150VAC
	Frequency range	40~60Hz(adjustable)
Output	Voltage range	220/110VAC+-2%
	Frequency range	50Hz/60Hz+-0.5% (Battery mode)
	Wave form	Pure Sine Wave
	Transfer between AC mode and battery mode	0 ms
	Transfer between AC mode and bypass mode	Transfer time: 4ms (typical 2.5ms)
	Distortion (Full Load) linear load	≤3%	≤4%	≤4%
	Degree of distortion (Full Load) nonlinear load	≤6%	≤7%	≤7%
	Overload capacity	>110% 30s turn to bypass mode; >150%, 200ms turn to bypass
	Load peak ratio	3:1(max)
Battery For C1K/2K/3K	Type	Maintenance free valve regulated lead acid (VRLA) battery
	Battery voltage	36VDC/24VDC	96VDC/72VDC/48VDC	96VDC/72VDC/48VDC
	Battery number (standard type )	312V7AH	812V7AH	812V7AH
	Backup time (Full load)	6Mins	9.5Mins	7.5Mins
	Backup time (Half load)	14Mins	21Mins	17.5Mins
	Recharge time	90%capacity after 8 hrs charging
Long backup	C1KS/2KS/3KS	36VDC, External	96VDC, External
Display	LED	Load level / Battery level / Battery mode / Line mode / Inverter , Bypass ,Over load , Fault
Audible Alarm	Battery Mode	Beeping every 4 seconds (re-settable) and every second when battery low
	Overload	Beeping twice every second
	Fault	Beeping Continuously
Communications	RS-232 Interface	With monitoring software
Working Environment	Surge protection	RJ-45 I/O port available for network or Fax/Modem
	Working temperature	- 20°C~40°C
	Humidity	0-95% non-condensing
Product size	WxDxH (mm)	405145220	455195330	455195330
package dimension	WxDxH (mm)	505485345	595335495	595335495
package weight	Kg	30/18	32/15	35/18
REMARK	CK --- Standard Type, CKS---- Long Time Type. The 24VDC,72VDC and 48VDC are not normal model
