High Capacity Online UPS

High Capacity Online UPS thumbnail-1
High Capacity Online UPS photo-1
US$ 486 - 512 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
kemapower
Model Number:
C 6-20K
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name kemapower
Model Number C 6-20K
Phase Single Phase
Protection Unbalanced Loads
Output Voltage 220VAC±1%
Type On-line
Application Instrumentation

Online UPS

Key Features

 1.High frequency and double conversion online UPS
 2.Single phase
 3.Fully digitized microprocessor control
 4.Wide input voltage range
 5.Advanced PFC technology
 6.Self-testing when UPS startup
 7.Advanced battery management
 8.Automatic battery charging in UPS off mode
 9.Lightning and surge protection
 10.Short circuit and overload protection
 11.Smart RS232 communication with monitoring software



TECHNOLOGY SPECS



ITEM MODEL C6K/C6KS C10K/C10KS C15KS C20KS
 Capacity  VA / Watts 6KVA / 4.2KW 10KVA / 7KW 15KVA / 10.5KW 20KVA / 14KW
 Input  Normal voltage 220VAC
 220V Voltage range 176-276V for 24VDC
 Frequency range 40.5~55Hz
 Output  Voltage range 220VAC±1%
 Frequency range 50Hz/60Hz+-0.5% (Battery mode)
 Wave form Pure Sine Wave
 Transfer between AC  mode and battery mode 0 ms
 Transfer between AC  mode and bypass mode "<1ms"
 Distortion (Full Load)  linear load < 3%
 Degree of distortion  (Ful l Load) nonlinear  load < 5%
 Overload capacity 105%~130% 10min, >130% 1min, >150% 200ms
 Load peak ratio 3:1(max)
 Battery for C6K/10K  Type Maintenance free valve regulated lead acid (VRLA) battery
 Battery voltage 240VDC/192VDC 240VDC/192VDC
 Battery number (standard type) 20*12V*7AH or 16*12V*7AH 20*12V*7AH or 16*12V*7AH
 Around backup time (Full load) 8Mins 8Mins
 Around backup time (Half load) 24Mins 24Mins
 Recharge time 90%capacity after 8 hrs charging
 Battery for long backup  type  C6KS/10KS/15KS/20KS 24VDC or 192VDC External battery back.

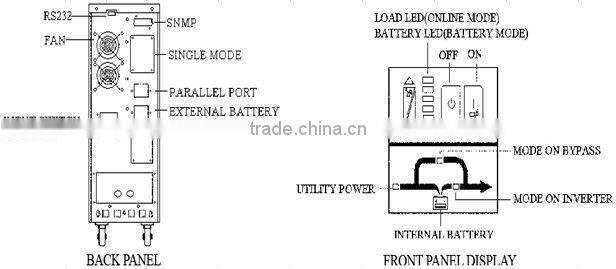

 Display  LED Load level / Battery level / Battery mode / Line mode / Inverter /B ypass /Over load / Fault
 Audible Alarm  Battery Mode Beeping every 4 seconds (re-settable) and every second when battery
 Overload Beeping twice every second
 Fault Beeping Continuously
 Communications  RS-232 Interface With monitoring software
 Working Environment  Surge protection RJ-45 I/O port avai lable for network or Fax/Modem
 Working temperature - 20°C~40°C
 Humidity 0-95% non-condensing
Package dimension WxDxH (mm) 710*440*860 710*440*860 710*440*860 710*440*860
Package size WxDxH (mm) 710*440*960 710*440*960 710*440*960 710*440*960
Package weight Gross weight(Kg) 93/44 101/48 65 65
 REMARK C*K --- Standard Type, C*KS(-N)---- Long Time Type
