Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Energy System > Off-Grid Solar Power System

Off-Grid Solar Power System

Name: Off-Grid Solar Power System
Brand: KEMAPOWER
SKU: 112010275
Availability: InStock

US$ 500 - 2,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

KEMAPOWER

Model Number:

FG-SPS5000/6000W

Contact Supplier Request Quote Chat Now

Foshan Kemapower Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name KEMAPOWER

Model Number FG-SPS5000/6000W

Specification Normal

Application Commercial

Output Voltage (V) 220V/50HZ

Load Power (W) 5KW-6KW

Solar Power (W) 5KW-6KW

Work Time (h) 6-8 hours

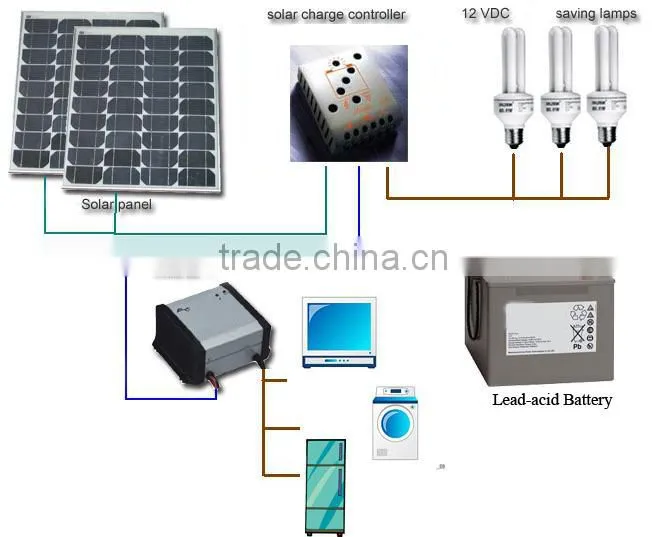

Off-Grid Solar Power system

TECHNOLOGY SPECS

ITEM	MODEL	FG-SPS5000W	FG-SPS6000W
System power capacity	Rated power capacity	5000W	6000W
System rated DC voltage		24VDC or 48VDC	48VDC
System output	Voltage	220V50HZ or 110V/60HZ	220V50HZ or 110V/60HZ
	Phase	Single phase	Single phase
	Wave form	Pure sine wave	Pure sine wave
Sunshine conditions		effectual recharge time mini 6 hours. Longer time will Generate more electricity
Sunshine conditions		capacity
Generate electricity capacity		18000WH/day	20500WH/Day
Reference loads and expend	only for Reference. You can use the other loads also.please
	connect with Kemapower to get more advice for different loads condition
	TV 25/29 inch	2PCS 6 horus(25’)	2PCS 6 horus(29’)
	Desk Fan s	4PCS 5 horus	4PCS 5 horu
	Ceiling Fan	1PCS 5 horus	1PCS 5 horus
	Energy Save Lamp	8PCS 4 horus	8PCS 4 horus
	Energy Save Lamp	2PCS 4 horus	2PCS 4 horus
	Computer	1PCS 4 horus	1PCS 4 horus
	Home Printer	1PCS 0.5 horus	1PCS 0.5 horus
	Home Water Pump	1PCS 2 horus	1PCS 2 horus
	Washing Machine 6KG	1PCS 0.7 horus	1PCS 0.7 horus
	Refrigerator 160L	1PCS 24 horus	1PCS 24 horus
	micro-wave oven	1PCS 0.5 horus	1PCS 0.5 horus
	water dispenser 2-5L/H	1PCS 12 horus	1PCS 12 horus
	Air-condition 2P	1PCS 5 horus	1PCS 5 horus
	Expend capacity	18000WH/day	20500WH/Day
Power Inverter	Mode	N-PSW5KW	N-PSW 6KW
	Max load capacity	5000W	6000W
	Design features	High Frequency Pure sine wave
	Efficiency	> 88%
	Standing by wastage	less than 12W	less than 12W
	IP grade	IP21	IP21
	Remark	please refer to the N-PSW series product details
Grid hybrid Inverter (optional)	Mode	N-PSW-G5KW	N-PSW-G5KW
	Combine Charge voltage	24VDC or 48VDC	48VDC
	Combine Charge current	0-70Amp/24VDC or 0-45Amp/48VDC	50Amp for requirement
	Combine Charge current	for requirement	50Amp for requirement
	Charger manage	CPU control three step charge stage
	Transfer voltage	transfer to Grid power when DC < 21.0V or 42V. Back to Battery mode again when DC > 37.4V or 74.8V
Controller	Mode/PCS MPPT1224-50,4PCS SCH60AMP,2PCS
	Rated charge current	200AMP/24VDC	120Amp/48VDC
	Rated charge voltage	24VDC	48VDC
	Charge control mode	Series PWM charge mode & State of Charge(SOC),Automatic compensation
	Optional	SCH60-50, LCD display,48VDC
	Remark	please refer to the MPPT and SCH series product details
Battery Bank	Mode	GEL100AH/12VDC	GEL100AH/12VDC
	Battery type	Deep cycle gel battery
	Capacity	100AH* 64PCS	100AH*76PCS,4S19P
	Battery cabinet	A16*4pcs. 4 layer with wheels	A20*4pcs, 4layer with wheels
	backup days	3 days under for the Reference loads and expend. Extensible
	Remark	please refer to the GEL series product details
Solar module	Mode	MONO130/35VDC	MOMO150/35VDC
	capacity	130WP*40PCS	MOMO150/35VDC
	Cell efficiency	14.44%	14.13%
	Remark	please refer to MONO series product details
Solar mounting		10 Array,for 4*10PCS	19 array, for 4*19 pcs
The other parts	Breaker,Arrester,wire collector,Cables set
