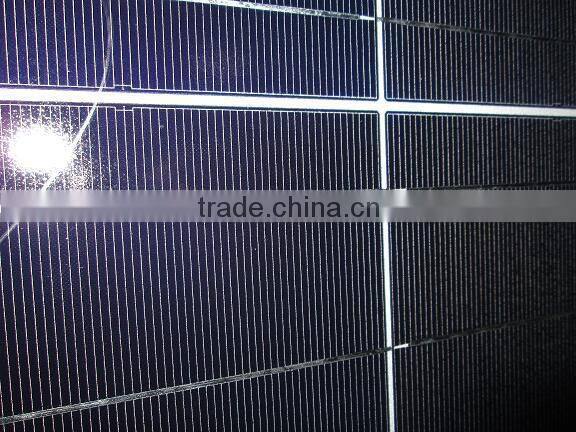

Polysilicon Module Solar Panel

Name: Polysilicon Module Solar Panel
Brand: KEMAPOWER
SKU: 112010261
Availability: InStock

US$ 0.4 - 0.6 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

KEMAPOWER

Model Number:

Polysilicon module Solar Panel GYP 90-195W

Foshan Kemapower Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NingBo/Shenzhen/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name KEMAPOWER

Model Number Polysilicon module Solar Panel GYP 90-195W

Material Polycrystalline Silicon

Number of Cells 18-72

Max. Power 90-195W

TECHNOLOGY SPECS

Temperature Coefficients of Isc(%)°C	0.04	Allowable Hail Load	23m/s ,7.53g
Temperature Coefficients of Voc(%)°C	-0.38	Junction Box Type	Pass the TUV Certificate
Temperature Coefficients of Pm(%)°C	0.047	Bypass Diode Rating(A)	12
Temperature Coefficients of Im(%)°C	0.04	Caple & Connector Type	Pass the TUV Certificate
Temperature Coefficients of Vm(%)°C	-0.38	Backing (Brand Type)	TPT
Temperature Range	-40eC to +85eC	Warranty	90% of 10 years,80% of 25 years.
Tolerance Wattage(e.g.+/-5%)	±5%	Standard Test Conditions	AM1.5 1000W/ 25 +/-2°C
Surface Maximum Load Capacity	2400Pa	FF (%)	70-76%

Model	Max power	Cell Size	Cell Array	Cell Efficiency	Max	Max	Short	Open	Dimension	Weight
	(W)	(mm)		(academic)	Power	Power	Circuit	Circuit	(mm)	(Kg)
	(W)	(mm)		(academic)	Current(A)IMP	Vltage(V)VMP	Current(A)ISC	Voltage(V)VOC
GYP90-36	90	156X104	4X9	15.80%	4.95	18.2	5.3	22	1080X670X35	8.5
GYP95-36	95	156X104	4X9	16.50%	5.19	18.3	5.65	22.1	1080X670X35	8.5
GYP100-36	100	156X130	4X9	14.10%	5.81	17.2	6.46	21.6	1245X668X35	11
GYP105-36	105	156X130	4X9	14.80%	6	17.5	6.55	21.8	1245X668X35	11
GYP110-36	110	156X130	4X9	15.40%	6.18	17.8	6.67	22	1245X668X35	11
GYP115-36	115	156X130	4X9	16.10%	6.25	18	6.82	22.2	1245X668X35	11
GYP120-36	120	156X130	4X9	16.70%	6.39	18.4	6.98	22.5	1245X668X35	11
GYP130-36	130	156X156	4X9	15.20%	7.27	17.9	7.8	21.9	1482x676x35	12
GYP135-36	135	156X156	4X9	15.80%	7.43	18.2	7.95	22	1482x676x35	12
GYP140-36	140	156X156	4X9	16.40%	7.65	18.3	8.14	22.2	1482x676x35	12
GYP145-36	145	156X156	4X9	16.90%	7.84	18.5	8.25	22.3	1482x676x35	12
GYP165-54	165	156X156	6X9	13.00%	6.35	26	7.11	31.2	1482X992X40	17
GYP170-54	170	156X156	6X9	13.40%	6.51	26.1	7.3	31.3	1482X992X40	17
GYP175-54	175	156X156	6X9	13.80%	6.68	26.2	7.48	31.4	1482X992X40	17
GYP180-54	180	156X156	6X9	14.10%	6.84	26.3	7.67	31.6	1482X992X40	17
GYP185-54	185	156X156	6X9	14.50%	6.98	26.5	7.82	31.8	1482X992X40	17
GYP190-54	190	156X156	6X9	14.80%	7.12	26.7	7.97	32	1482X992X40	17
GYP195-54	195	156X156	6X9	15.20%	7.25	26.9	8.12	32.3	1482X992X40	17
ATTENTION	OEM/ODM is welcome
ATTENTION	the specs are subject to change without notice at anytime
