DYDH-S Series Solar power light system
Negotiable
/ Set
1 Set(Min.Order)
- 10000 Set / Sets per Month
- Shenzhen/Guangzhou
- T/T Credit Card
You May Like
Product Details
| Input Voltage(V) | 24VDC | Lamp Power(W) | 120 | |
| Lamp Luminous Flux(lm) | 9900LM-13200LM | Color Temperature(CCT) | Other, warm/neutral/cool | |
| Working Temperature(℃) | -30, 40 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Aluminum | IP Rating | IP65 | |
| Place of Origin | Guangdong, China | Brand Name | KEMAPOWER | |
| Model Number | DYDH-S Series |
Product Description

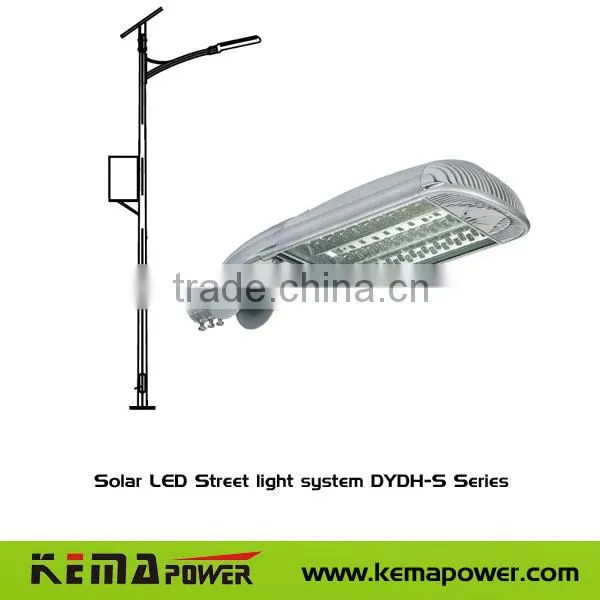

Solar power light system
Key features

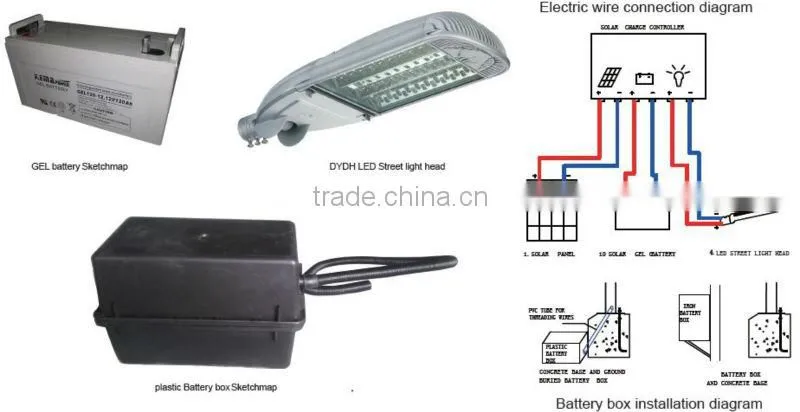

1.The solar LED street light system included Lamp head( light source),Pole and light Arm,Battery Box,Solar Panel Mounting,Solar Panel,Solar Street light charge Controller,Battery and the other,Accessories
2. Big heat sink to keep under low operation temperature to extend system life
3.Highest efficiency PV panel used watertight terminal box
4.PWM charge controller with time and light control and full protection function
5.The steel parts all are electrostatic spraying of polyester Powder after hot dip galvanizing
TECHNOLOGY SPECS
| ITEM | System Model | DYD090H-S | DYD120H-S | |
| System parameter | Power Capacity (W) | 90W | 120W | |
| System DC voltage | 24VDC | 24VDC | ||
| Light source | High Power LED | |||
| Luminous Flux (LM) | 9900LM | 13200LM | ||
| Central illuminans (LX) | 10M≥20Lux | 10M≥25Lux | ||
| Design recharge time | HRS/Day | 6 | 6 | |
| Design Running time | HRS/Day | 10 | 10 | |
| Design Backup Days | Days | Max 3 days under cloudy or rainy days | ||
| ATTENTION | if the above design condition is different, the following parts will be change too. Pls confirm before place order. | |||
| Parts of the system | LED stree light head | model | DYDH90W | DYDH120W |
| Luminous Flux (LM) | 9900 | 13200 | ||
| Product size | DYD=(L*W*H=780*325*205mm) | |||
| Solar Charge Controller | MODEL | HN1024R | HN1524R | |
| Current/VDC | 10AMP/24VDC,ligh and time control | 15AMP/24VDC,ligh and time control | ||
| Matched pole Height | 8-12M | 8-12M | ||
| Advice Pole and Arm | Height | 10M,subulate | 12M,subulate | |
| Dia. | Top 85mm, Bottom 195mm | Top 100mm, Bottom 230mm | ||
| Thickness | 4mm | 4.5mm | ||
| Base Place | 400*400*16mm | 450*450*20mm | ||
| material | Q235,hot dip galvanizing. electrostatic spraying agan is option | |||
| Arm | Dia 60mm, length 1500mm | Dia 60mm, length 1500mm | ||
| Solar Panel Mounting (mm) | yes. Iron, hot dip galvanized. electrostatic spraying agan is option | |||
| Gel battery for 3 days | Model | GEL150-12 | GEL200-12 | |
| PCS/Capacity | 2*150AH/12VDC | 2*200AH/12VDC | ||
| product Size(mm)/KG | 484*171*241/45kg | 520*240*244/63kg | ||
| Plastic Battery box | Model | PBX150-24V | PBX200-24V | |
| inside Size (mm) | 495*365*260 | 540*540*260 | ||
| the others | modified strengthen plastics,One-time injection moulding,to Put Under Ground, IP65 | |||
| Solar panel | Model | GYP130-36 | GYM170-72 | |
| PCS/Capacity | 2*130WP/17.9VMP | 2*170WP/35.6VMP | ||
| product Size(mm)/KG | 1480*675*30/12kg | 1580*808*35/15.5kg | ||
| Solar Panel bracket (mm) | yes. Iron, hot dip galvanized | |||
| Accessories | Cable,Nut , Bolt and installtion base and so on | |||
| Option | Iron Bat box | yes To replace the plastic bat box, | ||
| electrostatic spraying | yes. The all iron or steel parts hot dip galvanized is must. electrostatic spraying agan is option | |||
| Grid Hybrid Solution | yes. Replace the Normal Solar Controller by Grid Hybrid solar street lamp Controller | |||
