Home > Lights & Lighting > LED Outdoor Lighting > LED Street Light > Fiber Optic Solar Light System

Fiber Optic Solar Light System

Name: Fiber Optic Solar Light System
Brand: KEMAPOWER
SKU: 112010153
Availability: InStock

Fiber Optic Solar Light System thumbnail-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Input Voltage(V):

12/24VDC

Lamp Power(W):

Lamp Luminous Flux(lm):

3300LM-8800LM

Contact Supplier Request Quote Chat Now

Foshan Kemapower Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Input Voltage(V) 12/24VDC

Lamp Power(W) 80

Lamp Luminous Flux(lm) 3300LM-8800LM

Color Temperature(CCT) Other, warm/neutral/cool

Working Temperature(℃) -30, 40

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP65

Place of Origin Guangdong, China

Brand Name KEMAPOWER

Model Number DYCH-S Series Street power light system

Street light system

Key features

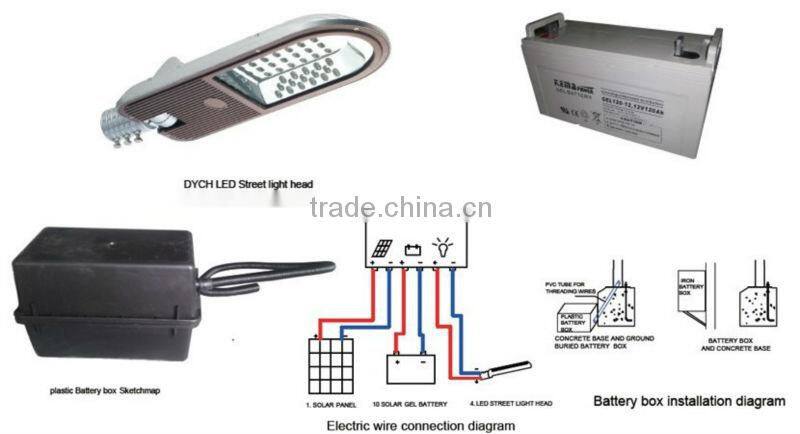

1.The solar LED street light system included Lamp head( light source),Pole and light Arm,Battery Box,Solar Panel Mounting,Solar Panel,Solar Street light charge Controller,Battery and the other,Accessories

2. Big heat sink to keep under low operation temperature to extend system life

3.Highest efficiency PV panel used watertight terminal box

4.PWM charge controller with time and light control and full protection function

5.The steel parts all are electrostatic spraying of polyester Powder after hot dip galvanizing

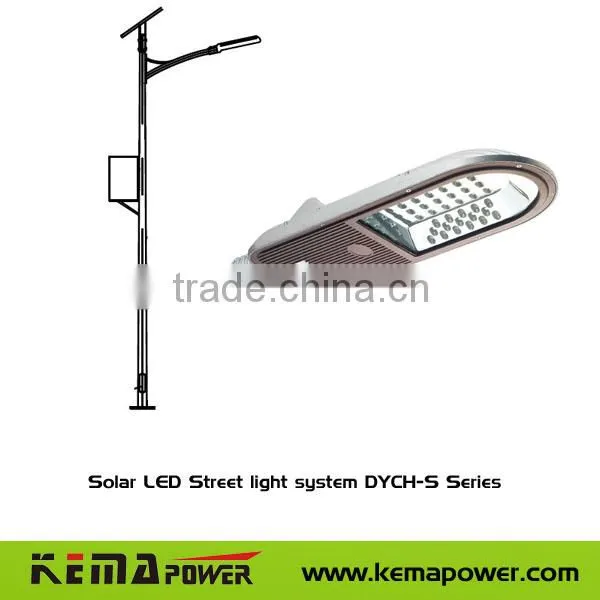

Solar LED Street light system DYCH-S TECHNOLOGY SPECS

ITEM	System Model		DYC030H-S	DYC040H-S	DYC050H-S	DYC060H-S	DYC080H-S
System parameter	Power Capacity (W)		30W	40W	50W	60W	80W
	System DC voltage		12VDC	12VDC	12VDC	24VDC	24VDC
	Light source		High Power LED
	Luminous Flux (LM)		3300LM	4400LM	5500LM	6600LM	8800LM
	Central illuminans (LX)		4M≥35Lux 6M≥18Lux	7M≥18Lux 8M≥13Lux	7M≥28Lux 8M≥20Lux	7M≥32Lux 8M≥24Lux	6M≥45Lux 8M≥26Lux 10M≥17Lux
	Design recharge time	HRS/Day	6	6	6	6	6
	Design Running time	HRS/Day	10	10	10	10	10
	Design Backup Days	Days	Max 3 days under cloudy or rainy days
	ATTENTION		if the above design condition is different, the following parts will be change too. Pls confirm before place order.
Parts of the system	LED stree light head	model	DYCH30W	DYCH40W	DYCH50W	DYCH60W	DYCH80W
		Luminous Flux (LM)	3300LM	4400LM	5500LM	6600LM	8800LM
		Product size	DYC(LWH=680270130mm)
	Solar Charge Controller	MODEL	HN1024R
	Solar Charge Controller	Current/VDC	10AMP/24VDC,ligh and time control
	Matched pole Height		3-7M	7-8M	5-8M	5-8M	6-10M
	Advice Pole and Arm	Height	6M,subulate	6M,subulate	8M,subulate	8M,subulate	10M,subulate
		Dia.(mm)	Top 65mm, Bottom 130	Top 65mm, Bottom 130	Top 75mm, Bottom 165	Top 75mm, Bottom 165	Top 85mm, Bottom 195
		Thickness	3mm	3mm	3.5mm	3.5mm	4mm
		Base Place(mm)	28028012	280*28012	32032014	32032014	40040016
		material	Q235,hot dip galvanizing. electrostatic spraying agan is option
		Arm(mm)	Dia 60, length1000	Dia 60, length 1000	Dia 60, length 1200	Dia 60, length 1200	Dia 60, length 1500
	Solar Panel Mounting (mm)		yes. Iron, hot dip galvanized. electrostatic spraying agan is option
	Gel battery for 3 days	Model	GEL120-12-113	GEL150-12	GEL100-12D01	GEL100-12D01	GEL150-12
		PCS/Capacity	1*120AH /12VDC	1*150AH /12VDC	2*100AH /12VDC	2*100AH /12VDC	2*150AH /12VDC
		product Size(mm)/KG	406174238 /36kg	484171241 /45kg	330173240 /26kg	330173240 /26kg	484171241 /45kg
	Plastic Battery box	Model	PBX120	PBX200	PBX120-24	PBX120-24	PBX150-24
		inside Size (mm)	420195245	540275260	420370245	420370245	495365260
		the others	modified strengthen plastics,One-time injection moulding,to Put Under Ground, IP65
	Solar panel	Model	GYP85-36	GYP115-36	GYP70-36	GYP85-36	GYP115-36
		PCS/Capacity	1*85WP /17.8VMP	1*115WP /18VMP	2*70WP /17.5VMP	2*85WP /17.8VMP	2*115WP /18VMP
		product Size(mm)/KG	99566835 /10kg	124566835 /11kg	78067525 /6.2kg	99566835 /10kg	124566835 /11kg
	Solar Panel bracket (mm)		yes. Iron, hot dip galvanized
	Accessories		Cable,Nut , Bolt and installtion base and so on
Option	Iron Bat box		yes To replace the plastic bat box,
	electrostatic spraying		yes. The all iron or steel parts hot dip galvanized is must. electrostatic spraying agan is option
	Grid Hybrid Solution		yes. Replace the Normal Solar Controller by Grid Hybrid solar street lamp Controller
