Solar Street Lighting System

Solar Street Lighting System thumbnail-1
Solar Street Lighting System photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Input Voltage(V):
12VDC
Lamp Power(W):
60
Lamp Luminous Flux(lm):
220LM-660LM
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Input Voltage(V) 12VDC
Lamp Power(W) 60
Lamp Luminous Flux(lm) 220LM-660LM
Color Temperature(CCT) Other, warm/neutral/cool
Working Temperature(℃) -30, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Place of Origin Guangdong, China
Brand Name KEMAPOWER

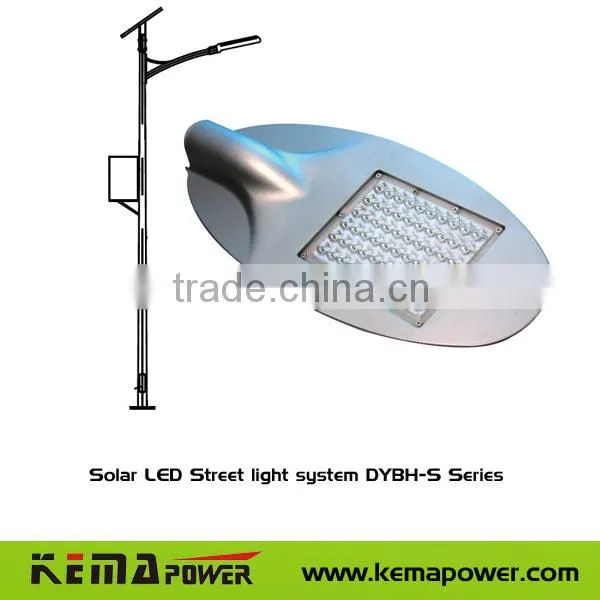

Model Number Solar LED Street light system DYBH-S Series

Solar Streeting Light System



Key features

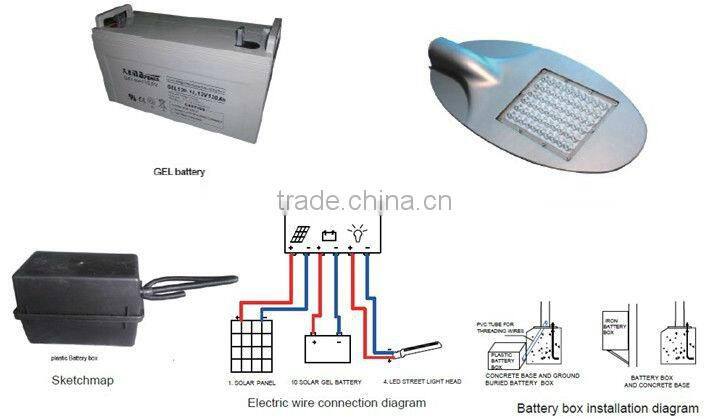

1.The solar LED street light system included Lamp head( light source),Pole and light Arm,Battery Box,Solar Panel Mounting,Solar Panel,Solar Street light charge Controller,Battery and the other,Accessories

2. Big heat sink to keep under low operation temperature to extend system life

3.Highest efficiency PV panel used watertight terminal box

4.PWM charge controller with time and light control and full protection function

5.The steel parts all are electrostatic spraying of polyester Powder after hot dip galvanizing



Solar LED Street light system DYBH-S TECHNOLOGY SPECS



ITEM System Model DYB020H-S DYB030H-S  DYB040H-S  DYB050H-S DYB060H-S
System parameter Power Capacity (W) 20W 30W 40W 50W 60W
System DC voltage 12VDC 12VDC 12VDC 12VDC 24VDC
Light source High Power LED
Luminous Flux (LM) 2200LM 3300LM 4400LM 5500LM 6600LM
Central illuminans (LX)

4M≥22lux

6M≥12lux

4M≥32lux

6M≥16lux

6M≥28lx

8M≥18lx

7M≥28lux

8M≥20lux

6M≥40Lux

8M≥22Lux
Design recharge time HRS/Day 6 6 6 6 6
Design Running time HRS/Day 10 10 10 10 10
Design Backup Days Days Max 3 days under cloudy or rainy days
ATTENTION if the above design condition is different, the following parts will be change too. Pls confirm before place order.

Parts of

the system

LED stree

light head

 model DYBH20W DYBH30W DYBH40W DYBH50W DYBH60W
Luminous Flux (LM) 2200LM 3300LM 4400LM 5500LM 6600LM
Product size DYB(L*W*H=606*250*128mm)
Solar Charge Controller MODEL HN0512R HN1024R
Current/VDC 5AMP/12VDC,ligh and time control 10AMP/24VDC,ligh and time control
Matched pole Height 3-6M 3-7M 4-7M 5-8M 6-10M

Advice Pole

 and Arm

 Height 3.5M isodiametric 6M,subulate 6M,subulate 8M,subulate 8M,subulate
Dia.(MM) Top 76mm, Bottom140

Top 65mm,

Bottom 130

Top 65mm,

Bottom 130

Top 75mm,

Bottom 165

Top 75mm,

Bottom 165
Thickness 2.5mm 3mm 3mm 3.5mm 3.5mm
Base Place(MM) 280*280*10 280*280*12 280*280*12 320*320*14 320*320*14
material Q235,hot dip galvanizing. electrostatic spraying agan is option
Arm(MM)

Dia 48mm,

length 500

 Dia 60mm, length 1000 Dia 60mm, length 1000 Dia 60mm, length 1200 Dia 60mm, length 1200
Solar Panel Mounting (mm) yes. Iron, hot dip galvanized. electrostatic spraying agan is option

Gel battery

for 3 days

 Model GEL65-12 GEL120-12-113 GEL150-12 GEL100-12D01 GEL100-12D01
PCS/Capacity

1*65AH

/12VDC

1*120AH

/12VDC

1*150AH

/12VDC

2*100AH

/12VDC

2*100AH

/12VDC
product Size(mm)/KG

350*167*178

/21kg

406*174*238

/36kg

484*171*241

/45kg

330*173*240

/26kg

330*173*240

/26kg
Plastic Battery box Model PBX80 PBX120 PBX200 PBX120-24 PBX120-24
inside Size(mm) 360*180*260 420*195*245 540*275*260 420*370*245 420*370*245
the others modified strengthen plastics,One-time injection moulding,to Put Under Ground, IP65
Solar panel Mode GYP60-36 GYP85-36 GYP115-36 GYP70-36 GYP85-36
PCS/Capacity

1*60WP

/17.5VMP

1*85WP

/17.8VMP

1*115WP

/18VMP

2*70WP

/17.5VMP

2*85WP

/17.8VMP
product Size(mm)/KG

780*675*25

/6.2kg

995*668*35

/10kg

1245*668*35

/11kg

780*675*25

/6.2kg

995*668*35

/10kg
Solar Panel bracket (mm) yes. Iron, hot dip galvanized
Accessories Cable,Nut , Bolt and installtion base and so on
Option Iron Bat box yes To replace the plastic bat box,
electrostatic spraying yes. The all iron or steel parts hot dip galvanized is must. electrostatic spraying agan is option
Grid Hybrid Solution yes. Replace the Normal Solar Controller by Grid Hybrid solar street lamp Controller



 Solar street lighting system
