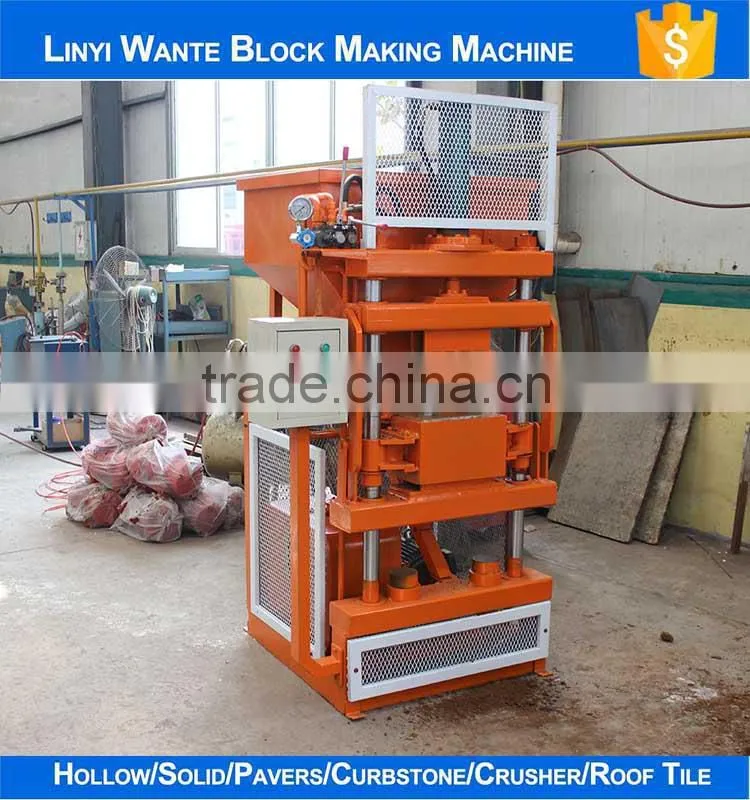

WT1-10 fully automatic clay brick making machine price

Name: WT1-10 fully automatic clay brick making machine price
Brand: Wante
Price: USD $6,500 - 7,555 / Set

FOB Price

USD $6,500 - $7,555 / Set

1 Set(Min.Order)

Supply Ability 1500 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Interlock Block Making Machine	Brick Raw Material:	Cement
Processing:	Brick Production Line	Method:	Hydraulic Pressure	Automatic:	Yes
Capacity:	4800pcs/8hr	Place of Origin:	Shandong, China	Brand Name:	Wante
Model Number:	WT1-10	Voltage:	220/240/380/440V	Power:	7.5KW
Dimension(LWH):	1450x1600x2000mm	Certification:	ISO9001&CE	Warranty:	One year
After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

Nude pacakge, if needed, clients pay for it.

Product Description

WT1-10 fully automatic clay brick making machine price

Simple introduction

WT1-10 has automatic and semi-automatic two types, full automatic one is controlled by Electrick box, meanwhile the semi-automatic is controlled by hudraulic valves.The main functions, the pressure, the capable block designs are same. This machine can achieve 12-16 Mpa, which gurantee the perfect density of blocks.

One adult can stand on the brick (We did not put any cement inside), the main material can be caly. laterite, mud and

earth, cement can be added also based on real situation.

Full automatic type

Semi automatic type

WT1-10 Full automatic

Main specification and technical parameters
Overall size	1200(L)×1600(W)×2100(H)mm
Shaping cycle	6 seconds
Power	7.5KW
Pressure	16-25Mpa
Total weight	1100 KGS

WT1-10 Semi automatic

Main specification and technical parameters
Overall size	1200(L)×1200(W)×1800(H)mm
Shaping cycle	10seconds
Power	7.5KW
Pressure	16-25Mpa
Total weight	900 KGS

Visit of our factory

The capable designs

Similar interlocking machines

Capacity

WT1-25

No.	Block size	Pcs/mould	Pcs/hour	Pcs/day
1	250x125x75MM	1	250-300	2000-2400
2	250x125x75mm	1	250-300	2000-2400

WT1-10 Full automatic

No.	Block size	Pcs/mould	Pcs/hour	Pcs/day
1	300x150x100MM	1	600	4800
2	150x150x100mm	1	600	4800

WT1-10 Semi automatic

No.	Block size	Pcs/mould	Pcs/hour	Pcs/day
1	300x150x100MM	1	350-400	2500-3000
2	150x150x100mm	1	400-500	3000-4000

WT2-10

Block size	Piece/mold	Pieces/hour	Pcs/day
300x150x100mm	2	500-600	5000-6000

Delivery photos

Port of shipment: Qingdao ,China

Time of delivery: within 25- 30 days after receiving the deposit

Shipping Marks: The buyer should supply the main shipping mark or seller will use the company as the

main shipping mark,

the side mark will be the machine name/model/weight and serial package information.

Our facotry

2015 Canton fair

If you want to get more informations about this machine or our comany,kindly contact Stella yang :

Skype: Stella.yang.qi

Email:

Whatsupp(Mobile): +008618765395011;17853995635

Company Profile

Linyi Wante Machinery Co., Ltd.

Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry.

Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation.

Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service.

We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
