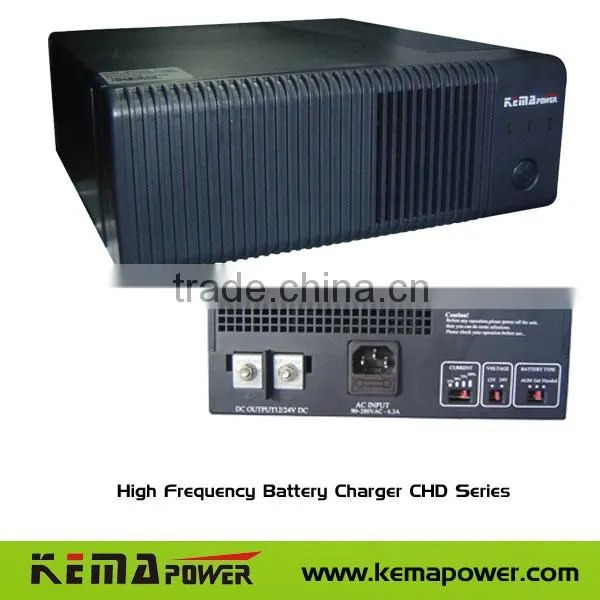

High Frequency Battery Charger CHD2040 12V24V 10A-40AMP

High Frequency Battery Charger CHD2040 12V24V 10A-40AMP thumbnail-1
High Frequency Battery Charger CHD2040 12V24V 10A-40AMP photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
KEMAPOWER
Model Number:
CHD2040
Input Voltage:
90-280VAC
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU /SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name KEMAPOWER
Model Number CHD2040
Input Voltage 90-280VAC
Output Voltage 12/24VDC

Key Features:
1. CPU Controlled Three step charge
2. High Frequency design, small and light
3. Universal wide input be in same with 110V and 220V mains.
4. Selective output 12VDC or 24VDC
5. Selective charge current of 4 step for diverse battery capacity to extending the battery lifetime
6. Max Charge Current 40Amp/12VDC, 20A/24VDC while 220V range input
7.Max Charge Current 20Amp/12VDC, 10A/24VDC while 110V range input
8.Parallel output Connection is workable for bigger Battery Bank.
9.Charge Voltage is selectable for different type Battery and extending the battery lifetime
10.Reverse Battery Polarity Protection
11.Smart fan control
12.LED indicator for input, output, temperature and charge state voltage



High Frequency Battery Charger  CHD2040 Series TECHNOLOGY SPECS



ITEM MODEL CHD2040
Capacity 12VDC40A,24VDC20A
Efficiency >80%
AC Input Normal voltage 90-280VAC
Frequency range 40Hz to 70Hz
DC Output Voltage (V) 12VDC or 24VDC
Charge Voltage 13.4-14.4V difference for different charge stage and different type battery.
Charge Current Max 12VDC40AMP or 24VDC20AMP while AC Input 180-280V,
Max 12VDC20AMP or 24VDC10AMP while AC Input 90-180V,
Manual adjustable at 25% 50% 75% 100% rated current
Current Accuracy ± 6% of full rated output current @25°C, for target currents across the range from 10% rated output (for absorption exit criteria accuracy) to the current limit set point.
Current Limit 40-44Amp
Cooling Fan Cooling with Smart fan control
Parallel Outputs Maximum two charger units connection in parallel
Battery selector Flooded Lead-Acid, Gel, AGM, manual adjustable
Charger Current selector 25%, 50%,75% ,100% ,4 stage
output voltage selector 12VDC or 24VDC manual adjustable
Protection Reverse Polarity yes
Input Over Voltage normal safety voltage:0-300V, peak 430V
Input Under-voltage Shutdown or input current limit out of normal voltage
Over Temperature shut off while over 60°C. restart while 55°C
Output over voltage (12V/24VDC) Unit will shut down if Vcharging > Vcharging (target) + 1.0Vdc for more than 2 seconds; unit will restart when voltage <= Vcharging (target) for more than 2 seconds.
For battery OVP the unit will restart in the same stage.
Unit will shut down if Vcharging > Vcharging (target) + 1.5Vdc for more than 2 seconds; unit will restart when voltage <= Vcharging (target) for more than 2 seconds.
For battery OVP the unit will restart in the same stage.
output short Circuit. yes
Working Environment Temperature Operating range: -10°C to 60°C. over 40°C will be Derated mode
Noise 50dB max
Humidity 5~95% without condensation
Product Size 224 x 255 x 80(mm)
product Weight 1.7Kg
Carton size 41*345*562mm/6PCS
Carton weight 13KG/6PCS
