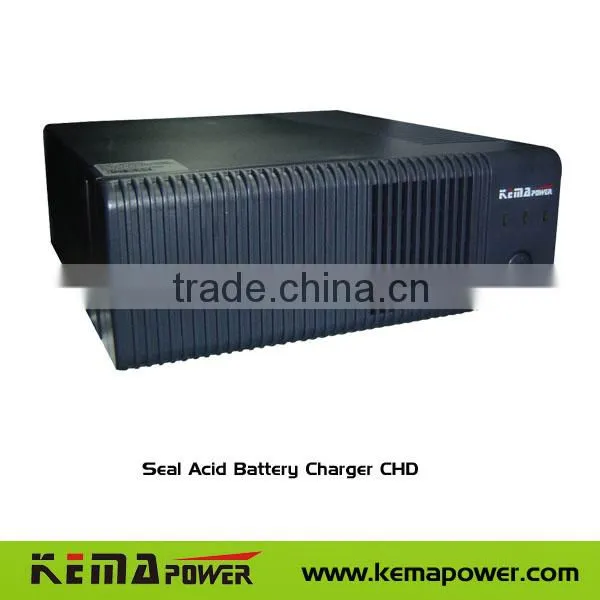

Multiway Battery Charger CHD2040 12V24V 10A-40AMP

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port GUANGZHOU /SHENZHEN
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	KEMAPOWER		Model Number	CHD2040
Input Voltage	90-280VAC		Output Voltage	12/24VDC

Product Description

Multiway Battery Charger

Key Features:
1. CPU Controlled Three step charge
2. High Frequency design, small and light
3. Universal wide input be in same with 110V and 220V mains.
4. Selective output 12VDC or 24VDC
5. Selective charge current of 4 step for diverse battery capacity to extending the battery lifetime
6. Max Charge Current 40Amp/12VDC, 20A/24VDC while 220V range input
7.Max Charge Current 20Amp/12VDC, 10A/24VDC while 110V range input
8.Parallel output Connection is workable for bigger Battery Bank.
9.Charge Voltage is selectable for different type Battery and extending the battery lifetime
10.Reverse Battery Polarity Protection
11.Smart fan control
12.LED indicator for input, output, temperature and charge state voltage

High Frequency Battery Charger CHD2040 Series TECHNOLOGY SPECS

ITEM	MODEL	CHD2040
Capacity		12VDC40A,24VDC20A
Efficiency		>80%
AC Input	Normal voltage	90-280VAC
	Frequency range	40Hz to 70Hz
DC Output	Voltage (V)	12VDC or 24VDC
	Charge Voltage	13.4-14.4V difference for different charge stage and different type battery.
Charge Current		Max 12VDC40AMP or 24VDC20AMP while AC Input 180-280V,
		Max 12VDC20AMP or 24VDC10AMP while AC Input 90-180V,
		Manual adjustable at 25% 50% 75% 100% rated current
Current Accuracy		± 6% of full rated output current @25°C, for target currents across the range from 10% rated output (for absorption exit criteria accuracy) to the current limit set point.
Current Limit		40-44Amp
Cooling		Fan Cooling with Smart fan control
Parallel Outputs		Maximum two charger units connection in parallel
Battery selector		Flooded Lead-Acid, Gel, AGM, manual adjustable
Charger Current selector		25%, 50%,75% ,100% ,4 stage
output voltage selector		12VDC or 24VDC manual adjustable
Protection	Reverse Polarity	yes
	Input Over Voltage	normal safety voltage:0-300V, peak 430V
	Input Under-voltage	Shutdown or input current limit out of normal voltage
	Over Temperature	shut off while over 60°C. restart while 55°C
	Output over voltage (12V/24VDC)	Unit will shut down if Vcharging > Vcharging (target) + 1.0Vdc for more than 2 seconds; unit will restart when voltage <= Vcharging (target) for more than 2 seconds. For battery OVP the unit will restart in the same stage.
		Unit will shut down if Vcharging > Vcharging (target) + 1.5Vdc for more than 2 seconds; unit will restart when voltage <= Vcharging (target) for more than 2 seconds. For battery OVP the unit will restart in the same stage.
	output short Circuit.	yes
Working Environment	Temperature	Operating range: -10°C to 60°C. over 40°C will be Derated mode
	Noise	50dB max
	Humidity	5~95% without condensation
Product Size		224 x 255 x 80(mm)
product Weight		1.7Kg
Carton size		41345562mm/6PCS
Carton weight		13KG/6PCS
