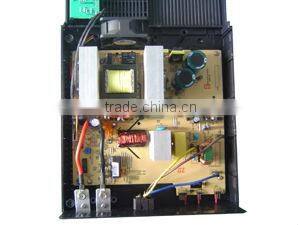

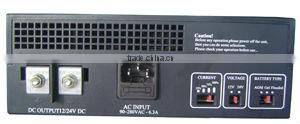

Help CenterHigh Frequency Battery Charger CHD 2040 12V24V 10A-40AMP
Related Products
-
High Frequency Battery Charger HFBC (12V/ 24V) 5-30AMPNegotiableMOQ: 100 Pieces -
Battery Charger High Frequency YMC.6V-48V,5A-40AMPNegotiableMOQ: 1 Piece
-
Seal Acid Battery Charger HFBC (12V/ 24V) 5-30AMPNegotiableMOQ: 100 Pieces
-
High Frequency Battery Charger CHD2040 12V24V 10A-40AMPNegotiableMOQ: 1 Piece
-
Multiway Battery Charger CHD2040 12V24V 10A-40AMPNegotiableMOQ: 1 Piece
Key Features
3. Universal wide input be in same with 110V and 220V mains.
4. Selective output 12VDC or 24VDC
5. Selective charge current of 4 step for diverse battery capacity to extending the battery lifetime
6. Max Charge Current 40Amp/12VDC, 20A/24VDC while 220V range input
7.Max Charge Current 20Amp/12VDC, 10A/24VDC while 110V range input
8.Parallel output Connection is workable for bigger Battery Bank.
9.Charge Voltage is selectable for different type Battery and extending the battery lifetime
10.Reverse Battery Polarity Protection
11.Smart fan control
12.LED indicator for input, output, temperature and charge state voltage
13.Used switching power technology, with small size, low weight, high efficiency and excellent function.
14.MCU control charging quickly based on all kinds of battery charging curve, check correctly the whole process of the charge and the discharge, ensuring battery full of charge.
15. Protection for over current, over voltage, over temperature, short circuit, battery polarity anti-connected
16.Adjusting voltage automatically according to weather with temperature compensation function, the battery temperature rising is very slight, with pulse charging mode, rehabilitate battery prolonging the service life of the battery
17.Adjust every segment charging max current, bulk or cyclic voltage and float charge time in the operating position.
18.Suitable for 6V, 12V, 24V, 36V, 48V and 72V battery etc.
19.Wide range of output current for option, from 1A to 100A by user.
20.Check automatically battery and its connector status while switch on
21.It is welcome to be designed for charging Ni-MH, Ni-CA and Li-ion Battery

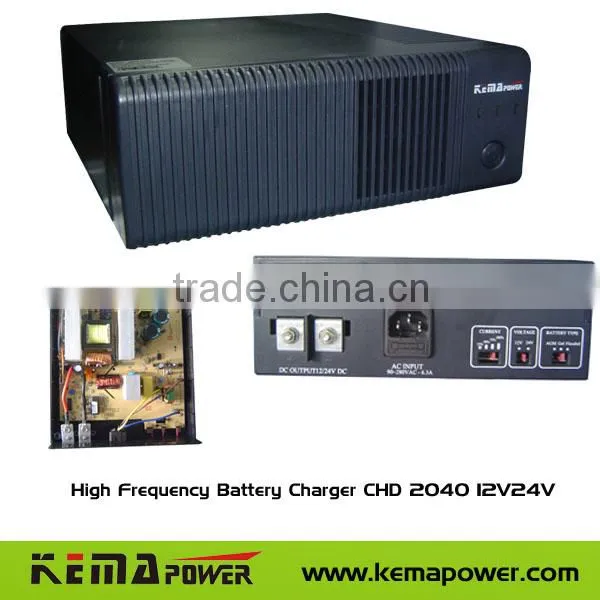

High Frequency Battery Charger CHD2040 Series TECHNOLOGY SPECS
| ITEM | MODEL | CHD2040 | ||
| Capacity | 12VDC40A,24VDC20A | |||
| Efficiency | >80% | |||
| AC Input | Normal voltage | 90-280VAC | ||
| Frequency range | 40Hz to 70Hz | |||
| DC Output | Voltage (V) | 12VDC or 24VDC | ||
| Charge Voltage | 13.4-14.4V difference for different charge stage and different type battery. | |||
| Charge Current | Max 12VDC40AMP or 24VDC20AMP while AC Input 180-280V, | |||
| Max 12VDC20AMP or 24VDC10AMP while AC Input 90-180V, | ||||
| Manual adjustable at 25% 50% 75% 100% rated current | ||||
| Current Accuracy | ± 6% of full rated output current @25°C, for target currents across the range from 10% rated output (for absorption exit criteria accuracy) to the current limit set point. | |||
| Current Limit | 40-44Amp | |||
| Cooling | Fan Cooling with Smart fan control | |||
| Parallel Outputs | Maximum two charger units connection in parallel | |||
| Battery selector | Flooded Lead-Acid, Gel, AGM, manual adjustable | |||
| Charger Current selector | 25%, 50%,75% ,100% ,4 stage | |||
| output voltage selector | 12VDC or 24VDC manual adjustable | |||
| Protection | Reverse Polarity | yes | ||
| Input Over Voltage | normal safety voltage:0-300V, peak 430V | |||
| Input Under-voltage | Shutdown or input current limit out of normal voltage | |||
| Over Temperature | shut off while over 60°C. restart while 55°C | |||
| Output over voltage (12V/24VDC) | Unit will shut down if Vcharging > Vcharging (target) + 1.0Vdc for more than 2 seconds; unit will restart when voltage <= Vcharging (target) for more than 2 seconds. For battery OVP the unit will restart in the same stage. | |||
| Unit will shut down if Vcharging > Vcharging (target) + 1.5Vdc for more than 2 seconds; unit will restart when voltage <= Vcharging (target) for more than 2 seconds. For battery OVP the unit will restart in the same stage. | ||||
| output short Circuit. | yes | |||
| Working Environment | Temperature | Operating range: -10°C to 60°C. over 40°C will be Derated mode | ||
| Noise | 50dB max | |||
| Humidity | 5~95% without condensation | |||
| Product Size | 224 x 255 x 80(mm) | |||
| product Weight | 1.7Kg | |||
| Carton size | 41*345*562mm/6PCS | |||
| Carton weight | 13KG/6PCS | |||
