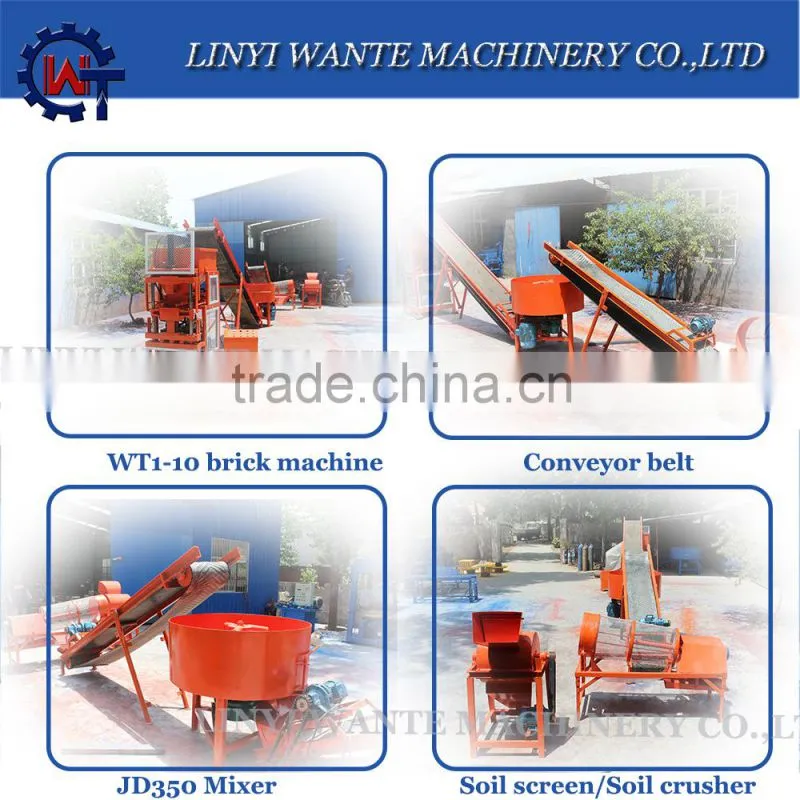

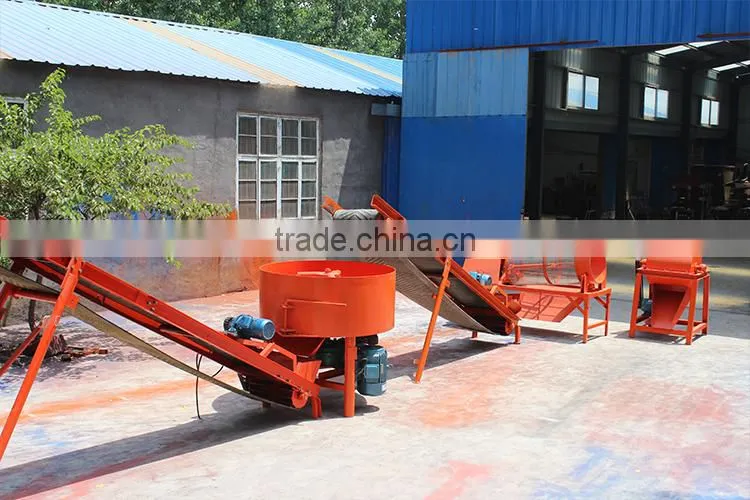

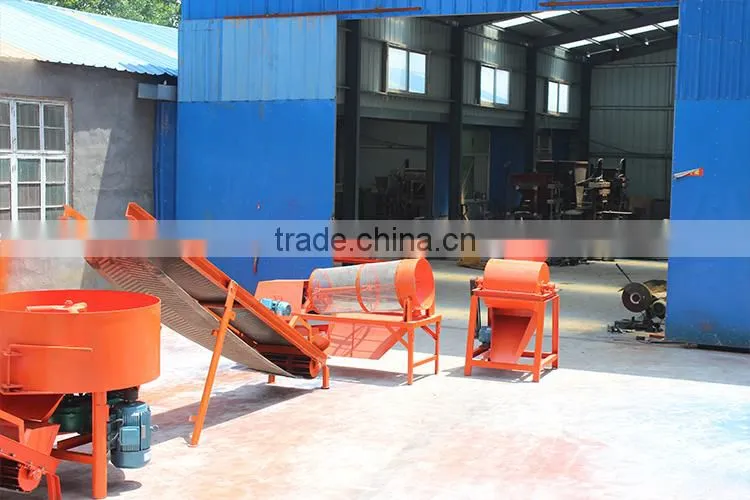

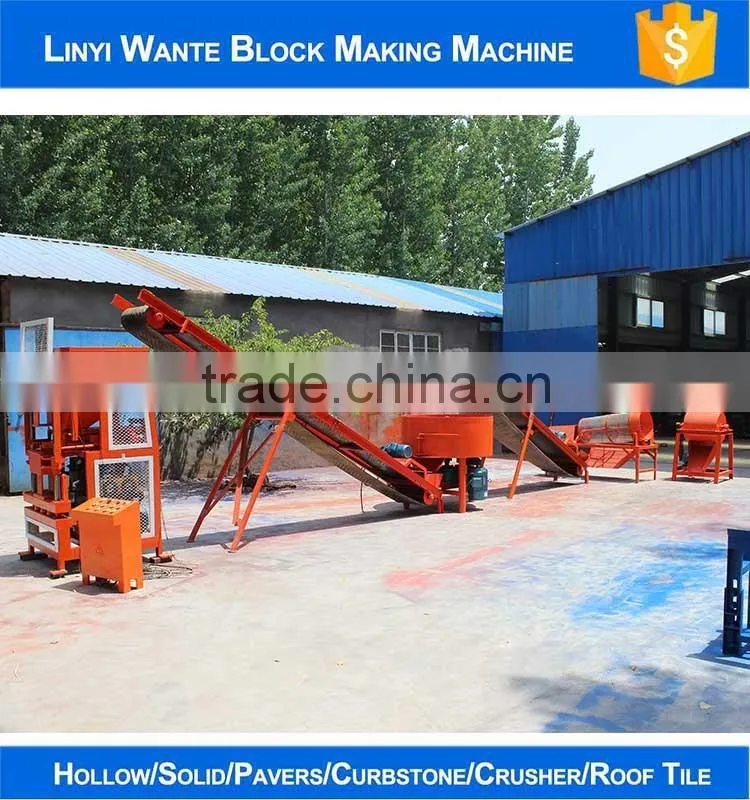

WT1-10 dry pressed clay brick production lines
Description of WT1-10A brick machine line |
Qty |
Weight KGS |
WT1-10A hydraulic interlocking block machine |
1 |
1100 |
Accessory for WT1-10A | ||
Free Interlocking Mold |
1 |
|
Hydraulic station and motor |
1 |
|
Tools |
1 |
|
Soil crusher |
1 |
200 |
Soil screen |
1 |
300 |
Conveyor belt |
1 |
200 |
JD350 mixer |
1 |
410 |

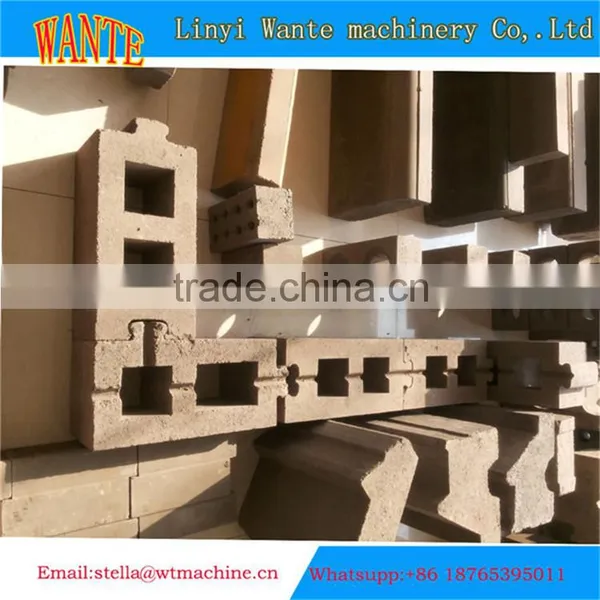

| NO | BLOCK SIZE | PCS/mold | PCS/HOUR | PCS/8HOURS |
| 1 |
300*150*100mm 250*125*65mm |
1 | 600 | 4800 |
| 2 |
300*150*100mm 250*125*65mm |
1 | 600 | 4800 |

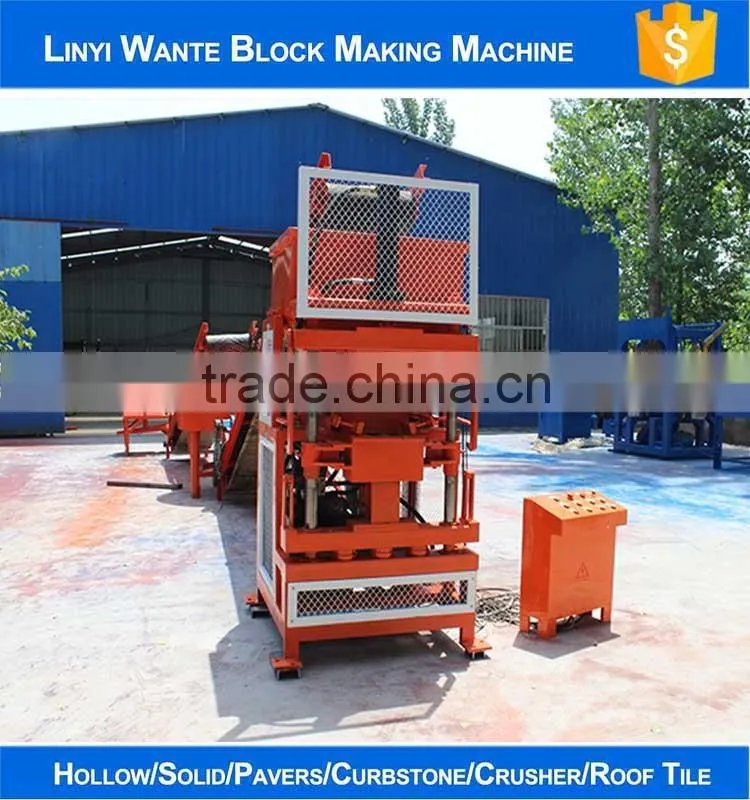

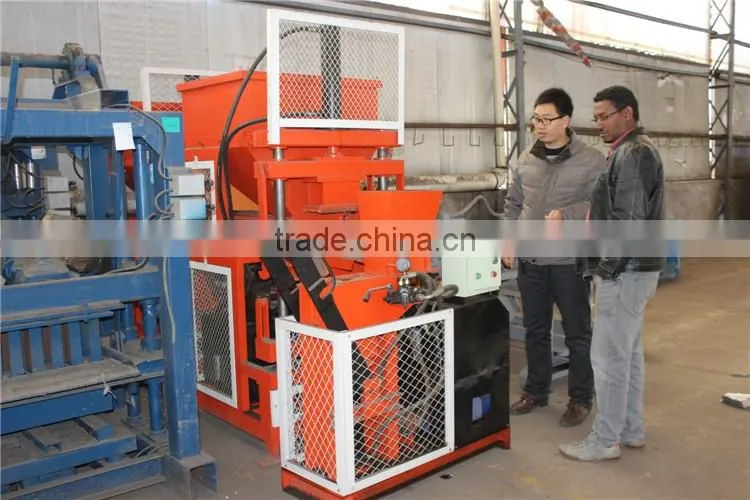

WT1-10 hydraulic interlocking block machine | |
Overall size |
1400(L)×1100(W)×2100(H)mm |
Shaping cycle |
10seconds |
Power |
7.5 KW |
|
15 Hp diesel engine |
Pressure |
16Mpa |
Total weight |
1100 KGS |
Soil crusher | |
Overall size mm |
1100(L)×1100(W)×1400(H)mm |
Motor |
3 KW |
Capacity |
500KGS/H |
Electricity |
380V/220V/ (adjustable) |
Total weight |
200 KGS |
Soil screen | |
Power |
3KW |
Capacity |
480KGS/h |
Rated power |
380V or 220V |
Size |
Diameter:500mm |
Total weight |
300 KGS |

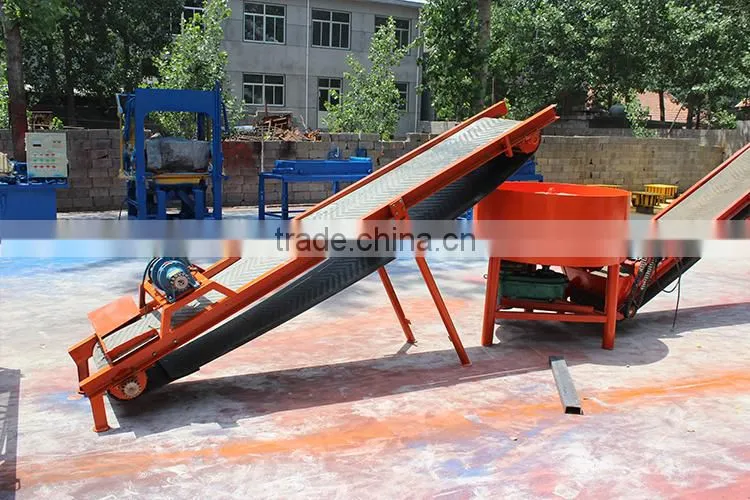

Conveyor belt | |
Power |
2.2KW |
length |
6M |
Rated power |
380V or 220V |
Capacity |
2M/S |
Total weight |
240 KGS |
JD350 mixer | |
Overall size |
1200(L)×1200(W)×1300(H)mm |
Shaping cycle |
5 mins |
Volume |
350L (25Kgs Cement) |
Electricity |
380V/220V/ (adjustable) |
Total weight |
330KGS |

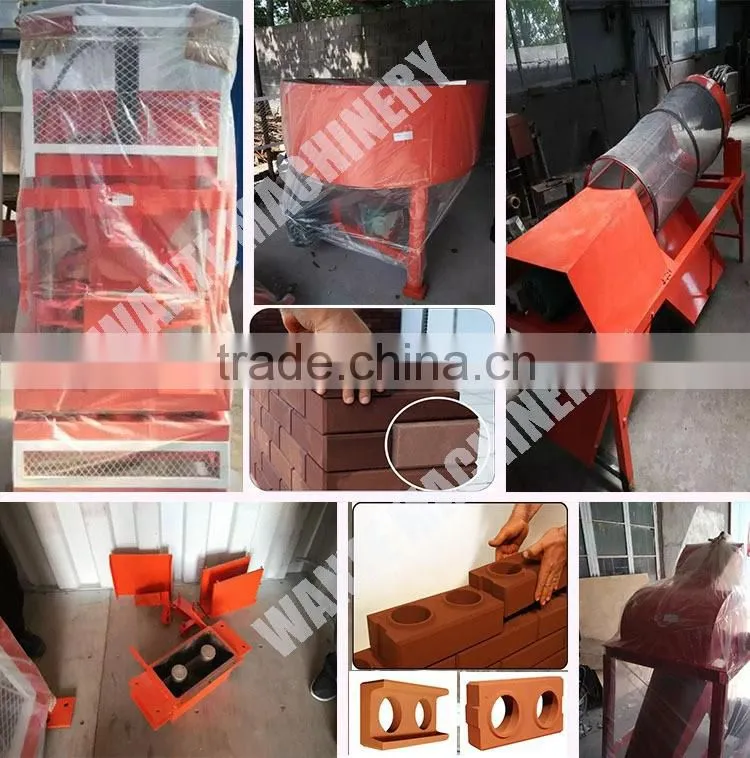

Delivery photos |
|
|
Port of shipment: Qingdao ,China Time of delivery: within 25- 30 days after receiving the deposit Shipping Marks: The buyer should supply the main shipping mark or seller will use the company as the main shipping mark, the side mark will be the machine name/model/weight and serial package information.
|
|
Our facotry |
|
|
2015 Guangzhou Fair |
|
Our Team |
|
If you want to get more informations about this machine or our comany,kindly contact Stella yang :
Skype: Stella.yang.qi
Email:
Whatsupp(Mobile): +008618765395011;17853995635
