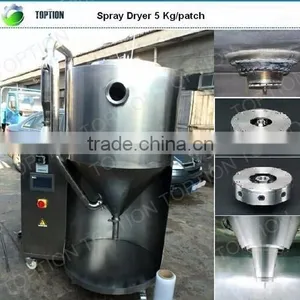

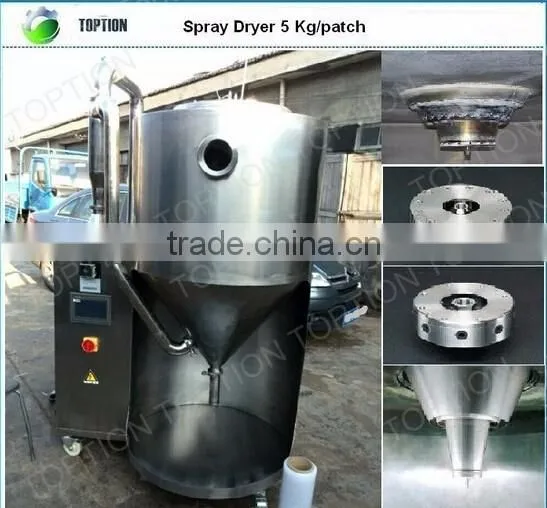

Pilot Centrifugal Rotary Atomizer Spray Dryer machine for milk powder
- 3000 Set / Sets per Month
- Shanghai/Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | TOPTION | Model Number: | TP-S50 |
Power: | Electronic | Usage: | Auto Testing Machine |
Product Description
Pilot Centrifugal Rotary Atomizer Spray Dryer machine for milk powder
Introduction of Centrifugal r Spray Dryer machine :
Laboratory table top spray dryer is the latest type of TOPTION which adopts advanced international technology and spare parts.
TOPTION Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.
Application of Centrifugal r Spray Dryer machine :
Spray dryer can be used in a wide range where the production of a free-flowing powder sample is required. This technique has processed materials in the following areas successfully:
Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Most solutions and supernsions can be spray dried providing that the resulting product has the characteristics of material.
It is popular in fields of Food, biology, material, pharmacy, university, and R&D institute, etc. especially for processing temperaturesensitive material , for e.g., powder, because material only touch air for a brief moment so that heat couldn't destroy the component of material.
Technical parameters of Mini Centrifugal Spray Dryer TP-S50:
1.Max capacity: 5000ml/h
2.Temperature range of Inlet air: 30°C -300°C
3.Temperature range of outlet air: 30°C -140°C
4.Precision of temperature: ± 1 °C
5.Dryer time: 1.0-1.5 S
6.Speed of squirt pump: 5000ml/h,
7.Spray direction: downwards co-current
8.Total power: 10KW 380V
9.Stainless steel tank diameter: 800mm
10.Dried powder restoring rate (%): ≥95
11.Atomizer speed: 40000rpm
12.Dimension: 1700*1100*150mm

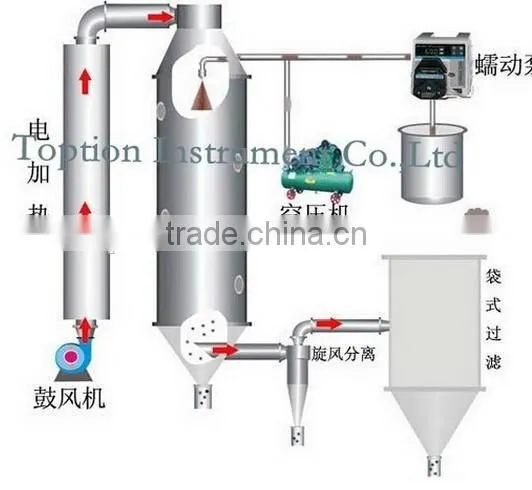

Working Principle of Centrifugal r Spray Dryer machine
The air are filtered and heated ,then into the distributor on the top of the dryer, spiral hot air evenly go into drying chamber .

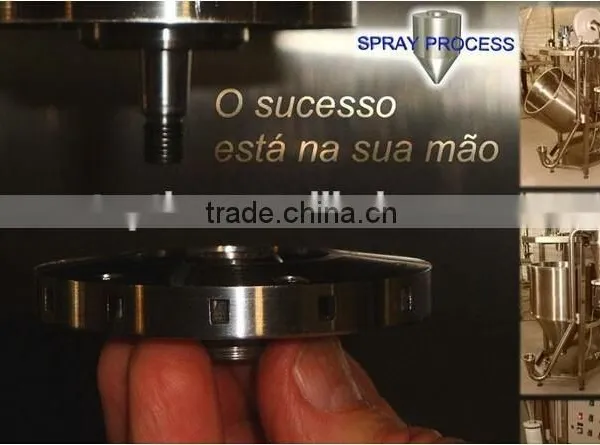

Liquid through the high-speed centrifugal atomizer on the top of the tower , then (rotation)spray into very fine mist droplets,contact with hot air and dried into the finished product in a very short time . Dried product are continuously produced from the bottom of the drying tower and the cyclone , the exhaust are vented by fan .
Features of Centrifugal r Spray Dryer machine
At a high speed of drying, after the spraying of the material liquid, the surface area of the material will be increased greatly. In the hot-air flow, 95%~98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.
This is especially suitable for drying the heat sensitive materials. Its final products own the good uniformity, mobility, dissolving capacity. And the final products are high in their purity and good in their quality. The production procedures are simple and the operation and control are easy. The liquid with the moisture contents 40~60% (for special materials, the contents may reach 90%.) can be dried into the powder or particle products once a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out the control and management.
We are professional for different capacity of spray dryer.
Customized spray deryer also welcome here !!!
TOPTION---Your top option !
