labt mini Freeze Spray Dryer machine TP-S3000 for organic solven
- 250 Set / Sets per Month
- Shanghai/Tianjin/Shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | TOPTION | Model Number: | TP-S3000 |
Power: | Electronic | Usage: | Auto Testing Machine |
Product Description

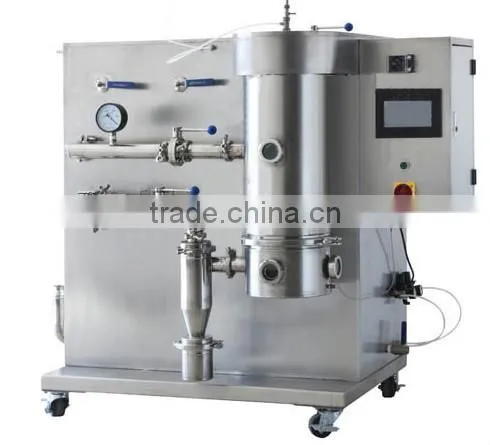

Freeze Spray Dryer TP-S3000
Parameter
1) Color LCD touch screen parameters displays drying chamber temp/peristaltic pump rotating speed/ fan frequency/ stylet frequency/ drying chamber pressure.
2) Capacity: 500ml/time
3) Spray freezing temperature: <-15℃
4) Cold trap temperature: ≤-60℃
5) Vacuum pump power: 2KW
6) Ultimate vacuum pressure: <20Pa (idle)
7) Spray pressure: 2-5BAR (adjustable)
8) Air compressor gas production rate: 4.2M3/h
9) Cold air volume: 5.5M3/min
Application scope:
TP-S3000 lab Spray freezing dryer can be used for low-temperature dehydration of heat-sensitive, viscous, active and high sugar materials, such as Chinese herbal medicine and nature product extract, dairy product, biological agent, enzyme, fruit original juice, and polymer materials.
Features
1. With combination of spray dehydration and vacuum lyophilization techniques, TP-S3000 lab Spray freezing dryer works with shorter drying time than traditional vacuum freeze-drying. The dried solid powdered materials basically retain their original biological and chemical properties for easy and long-term preservation and when added water, materials return to the state of pre-freeze-drying.
2. The present equipment adopts a cooling system of air-cooled condensing closed compressor with rapid cooling performance, low freezing temperature and strong moisture absorption ability. Temperature and vacuity are displayed in a digital, accurate, and direct manner.
3. In dehydration, the present equipment heats and sublimates natural air to maintain the security of samples.
4. The present equipment provides convenience with a vacuum pump attaching plug on the body, no need for any additional power supply.
5. The convenient and reliable vacuum connection adopts international standard clamp.
6. Stable performance, easy operation and low noise.
7. Compared with traditional freeze dryer: rapid freeze-drying of wall sticking and organism containing liquid materials (juice, traditional Chinese medicine extract, etc). The dried granulated product enjoys fine fluidity and particle diameter is adjustable within a certain range.
OEM spray dryer could be done here. Welcome to inquire for discussion!
