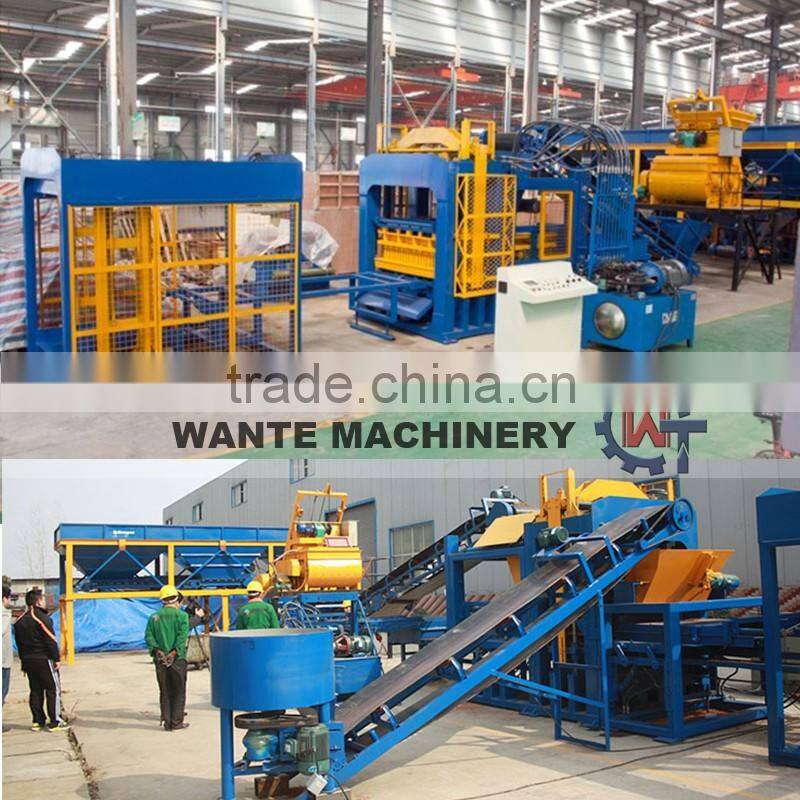

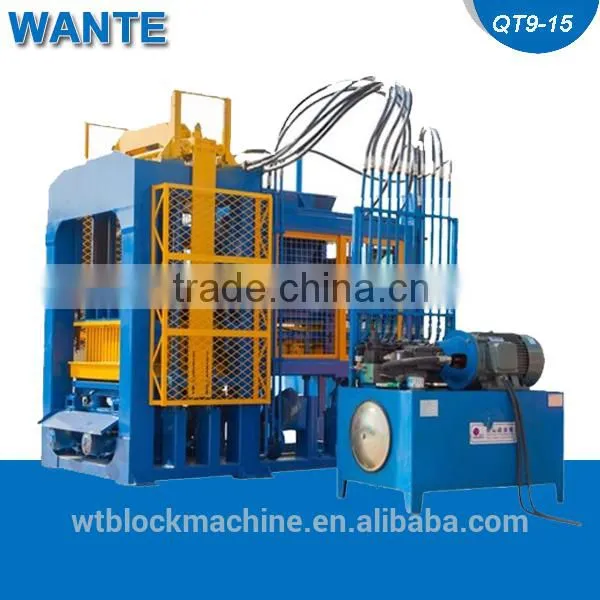

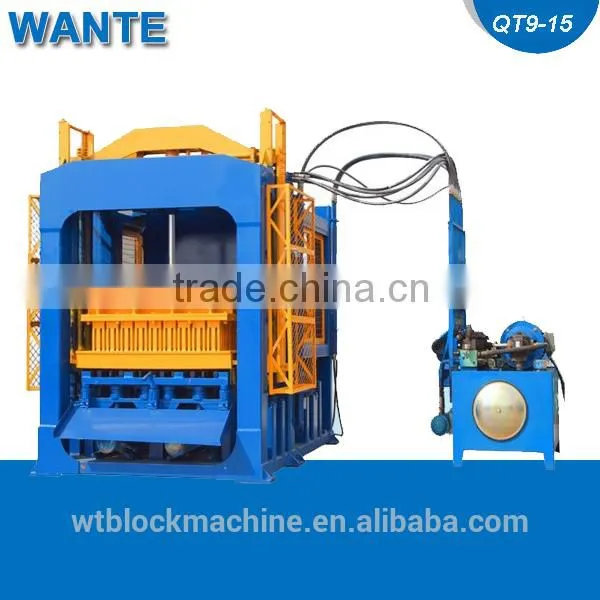

1.QT8-15 hollow bricks wall building machine

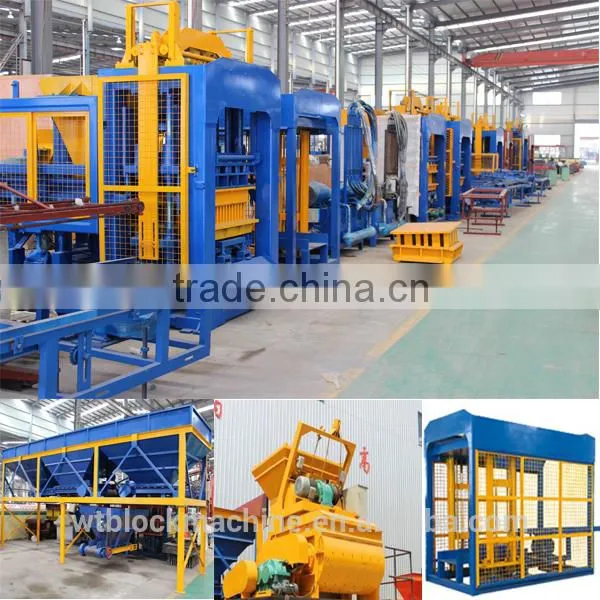

QT8-15 hollow bricks wall building machine Whole production line including :
1 |

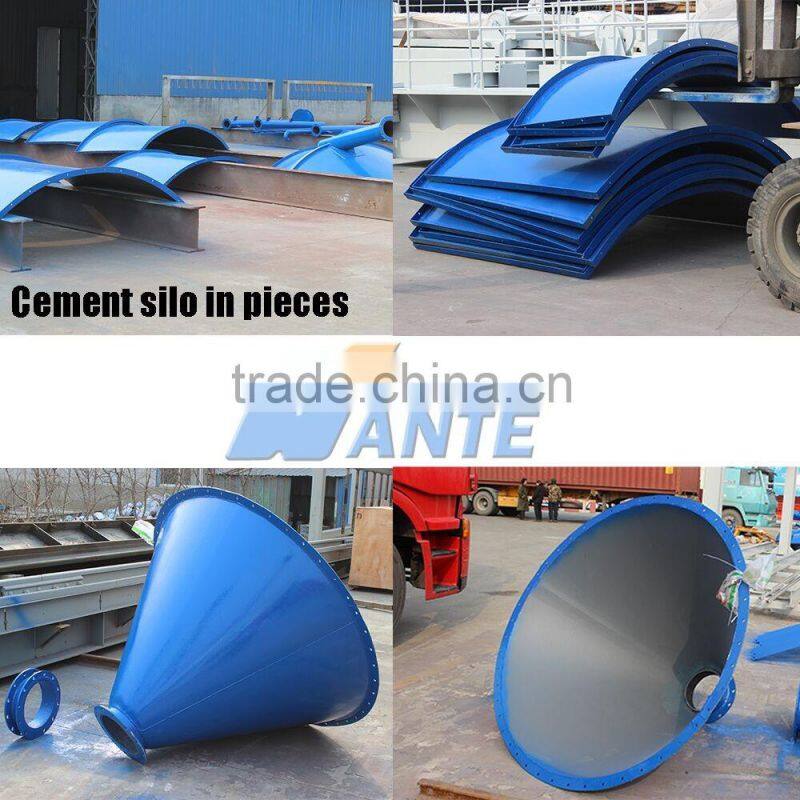

Cement silo |
2 |
Wheel loader |
3 |
Batching machine |
4 |
Screw conveyor |
5 |

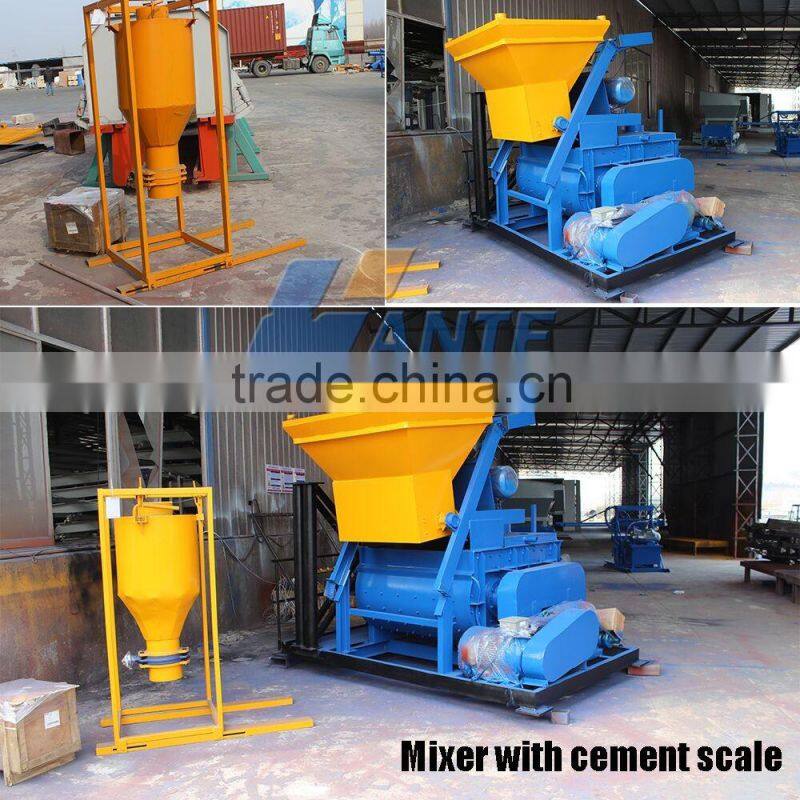

Mixer |
6 |
Belt conveyor |
7 |
Block machine |
8 |
Stacker machine |
9 |
Forklift |
QT8-15 hollow bricks wall building machine main parameters
Dimension |
3500x1700x2930mm |
||||||||
Moulding area |
936x880mm |
||||||||
Moulding period |
15S |
||||||||
Pallet Size |
980×900×25mm |
||||||||
Weight |
12.5T |
||||||||
Voltage |
380V |
||||||||
Host machine power |
34KW |
||||||||
Vibration force |
60KN |
||||||||
Capacity |
93.55KVA |
||||||||
Mixer model |
JS750 |
||||||||
Water Consumption |
9T/day |
||||||||
QT8-15 hollow bricks wall building machine working process
1. Material Batching and preparation Section: Raw materials are discharged to the mixer from three Hopper batching machine,
as there is a hole under ground. The mixed raw materials are sent to the mixer.
2.Mixing Section: After being mixed evenly with water, raw material are unloaded to
the block making machine through belt conveyor.
3.Block pressin Section: .Mixed raw material are then sent to the mould case. Under PLC
computer intelligent control. Hydraulic transmission, vibration, shaping takes place.
4.Automatic Stacker Section:After demoulding ,green brick will be unloaded to the bamboo pallet.
5.Block Curing Section :.Wet product will be conveyed through green block conveyor then to the stacker.
QT8-15 hollow bricks wall building machine capacity
Size LXWXH |
Pcs/Mould |
Pcs/8Hours |
|||||||
Hollow block 400X100X200mm |
14 |
16800-23520 |
|||||||
Hollow block 400X150X200mm |
10 |
12000-16800 |
|||||||
Hollow block 400X200X200mm |
8 |
9600-13440 |
|||||||
Hollow block 400X250X200mm |
6 |
7200-10100 |
|||||||
Solid block 240X115X53mm |
42 |
60480 |
|||||||
Paver 200X100X60 |
28 |
33600 |
|||||||
Paver 200X163X60 |
12 |
14400 |
|||||||
2. QT8-15 hollow bricks wall building machine simple block machine line area | |||||||||
workshop |
200m2 |
office |
100m2 |
||||||
Total area |
2000m2 |
||||||||
3. QT8-15 hollow bricks wall building machine Worker amount | |||||||||
PLC Operator |
1 |
Material loader |
1 |
||||||
Forklift Driver |
1 |

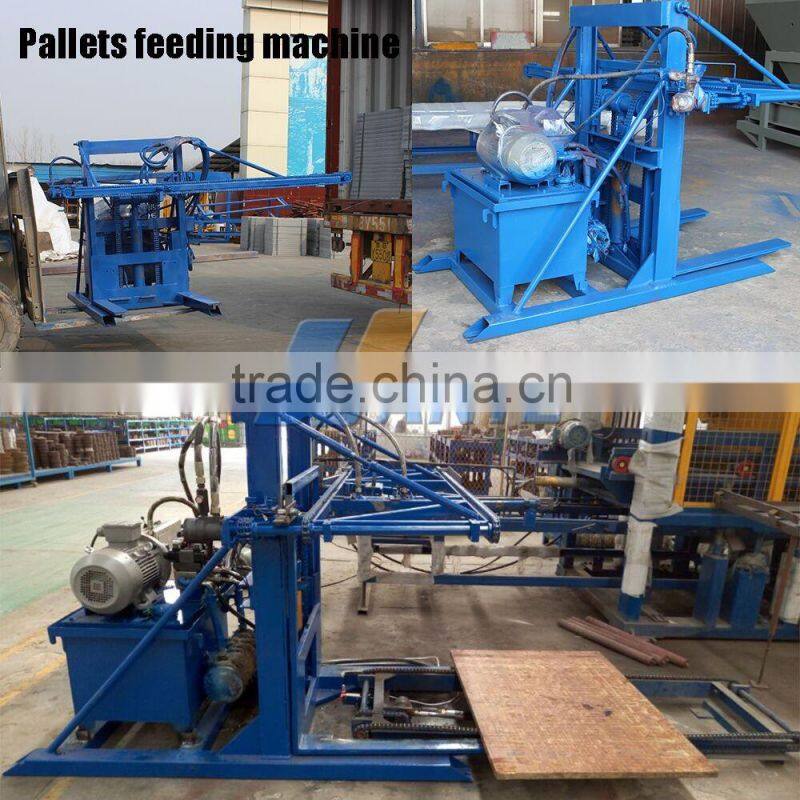

Feeding pallet |
1 |
||||||
Maintainer |
1 |
Transport wet block |
2 |
||||||
Total |
7 |
||||||||
QT8-15 hollow bricks wall building machine advantages
(1) Full automatic and hydraulic automatic block making machine , can produce all kinds of bricks, and just change the moulds,
such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure

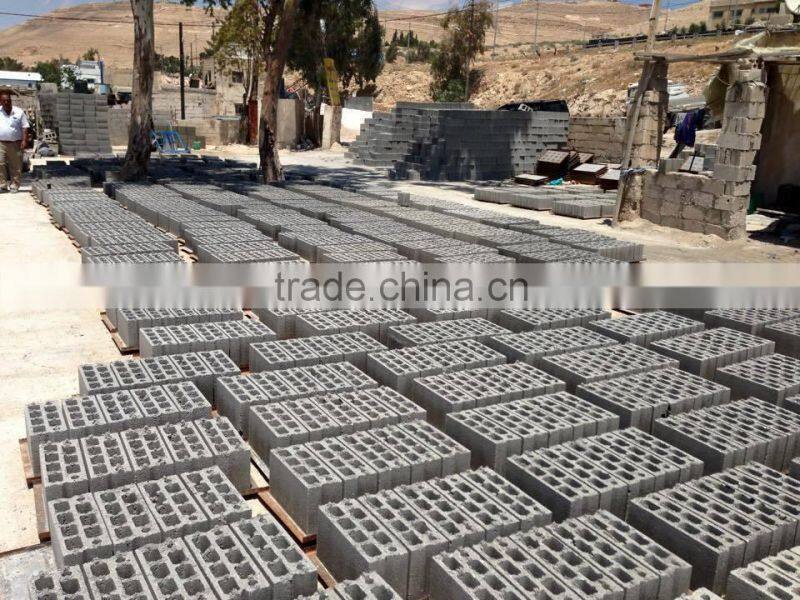

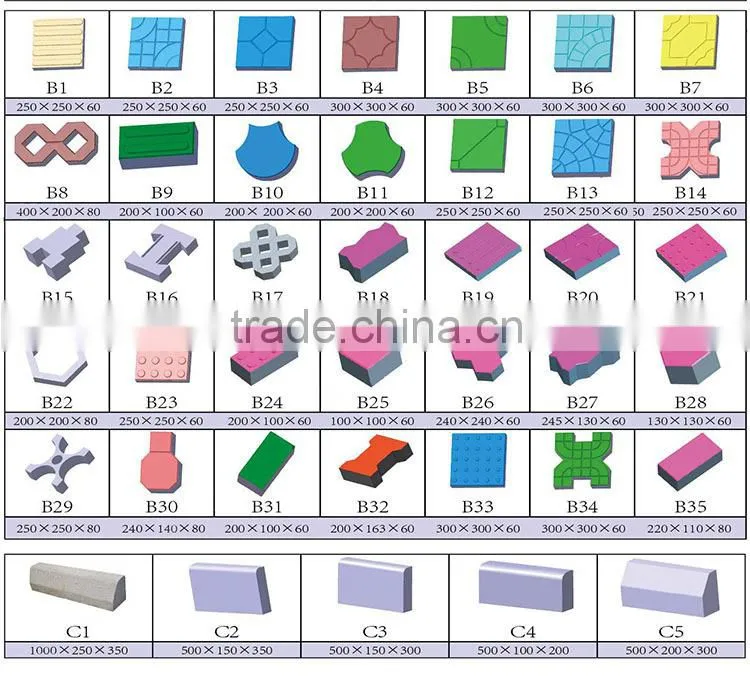

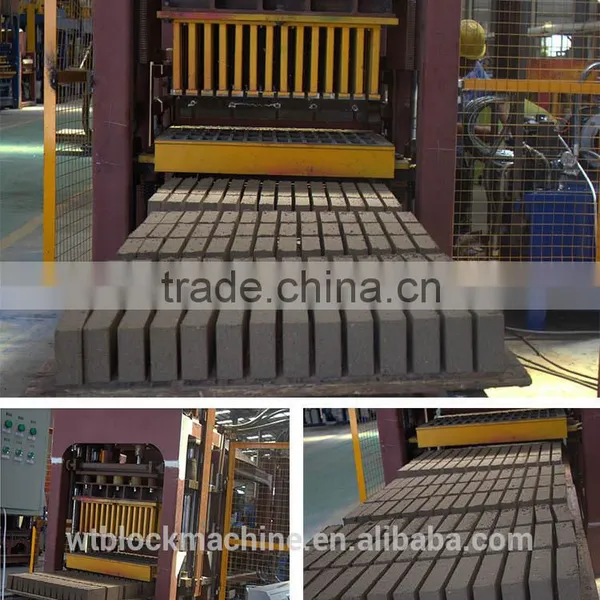

Block samples

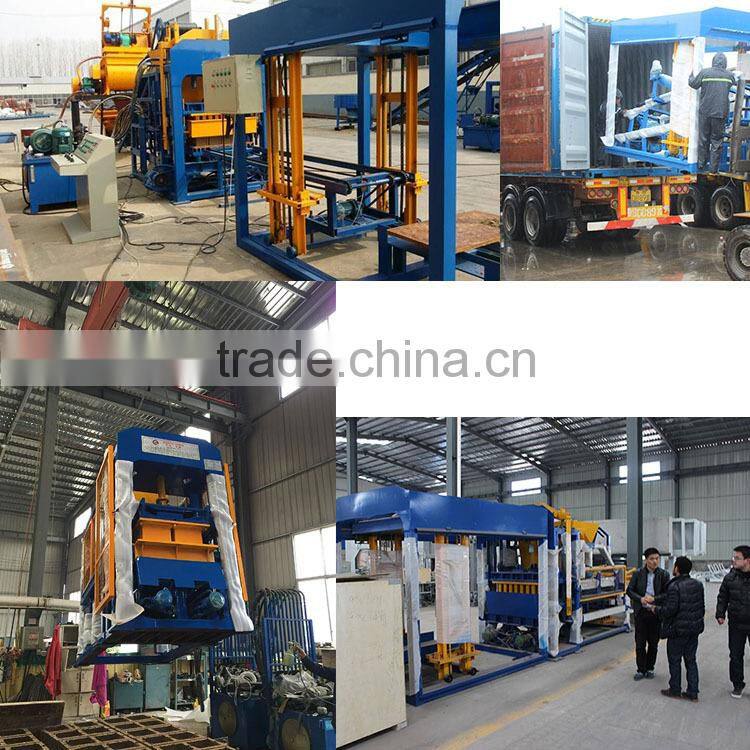

For A set of QT8-15 production line, it need about two 40HQ containers, and by nude package to save space.
Our factory, built in 1994, and business is involves concrete block machine, AAC production line, interlocking block machine,sand lime block machine etc. By now, our machine has been sent to more than 120 countries and areas, and have set up office in Indonesia, India etc 8 countries.
