Low Investment QT4-18 Fully Automatic Block Machine Brick Machine

Linyi Wante Machinery Co., Ltd. Gold Verified Supplier
5Yrs
Low Investment QT4-18 Fully Automatic Block Machine Brick Machine thumbnail-1
Low Investment QT4-18 Fully Automatic Block Machine Brick Machine thumbnail-2
Low Investment QT4-18 Fully Automatic Block Machine Brick Machine thumbnail-3
Low Investment QT4-18 Fully Automatic Block Machine Brick Machine thumbnail-4
Low Investment QT4-18 Fully Automatic Block Machine Brick Machine thumbnail-5
Low Investment QT4-18 Fully Automatic Block Machine Brick Machine thumbnail-6
Low Investment QT4-18 Fully Automatic Block Machine Brick Machine photo-1
Low Investment QT4-18 Fully Automatic Block Machine Brick Machine photo-2
Low Investment QT4-18 Fully Automatic Block Machine Brick Machine photo-3
Low Investment QT4-18 Fully Automatic Block Machine Brick Machine photo-4
Low Investment QT4-18 Fully Automatic Block Machine Brick Machine photo-5
Low Investment QT4-18 Fully Automatic Block Machine Brick Machine photo-6
US$ 9,580 - 11,650 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Hollow Block Making Machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 4000-24000 Pieces/day
Place of Origin Shandong, China
Brand Name WANTE
Model Number QT4-18
Voltage 440/380/220/adjustable
Power 17.7kw
Dimension(L*W*H) 3600X1650X2100
Certification ISO/CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Low investment QT4-18 fully automatic block machine brick machine
1.Simple automatic production line

2.Hydraulic pressure system

3.Can make both concrete block,pavers,curstone

Low investment QT4-18 fully automatic block machine brick machine



Technical Parameter



Low investment QT4-18 fully automatic block machine brick machine

QT4-25 block machine

Overall size

3600(L)×1650(W)×2100(H)mm

Shaping cycle

20 seconds

Pallet size

850×450×25mm (bamboo)

850×450×25mm (Plastic)

Vibration frequency

Max.4000 R/Min

Upper vibrator

4KW

Nether vibrator

4kw

Electricity

380V/220V/ (adjustable)

Total weight

3200 KGS

Low investment QT4-18 fully automatic block machine brick machine

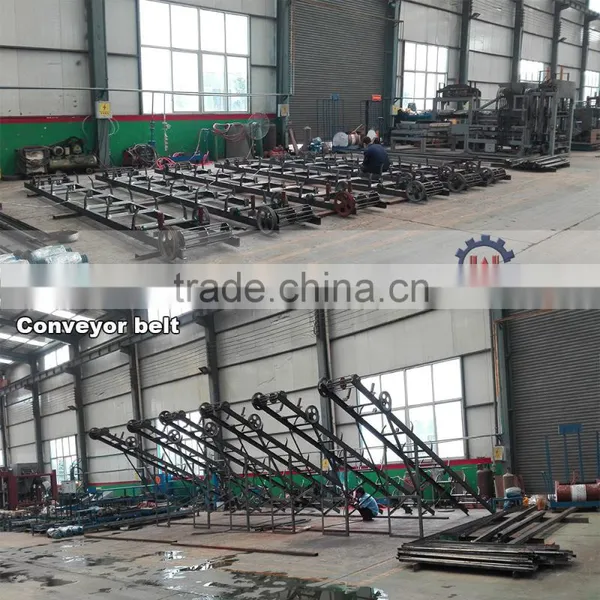

Conveyor belt

Belt width (M)

6

Belt length (M)/KW

6/2.2

Belt speed (M/S)

2

Low investment QT4-18 fully automatic block machine brick machine

JD500 mixer

Overall size

1500x1500x1400mm

Shaping cycle

5 mins

Volume

500L (50Kgs Cement)

Electricity

380V/220V/ (adjustable)

Total weight

600KGS

Low investment QT4-18 fully automatic block machine brick machine

Stacker machine

Overall size

2100(L)×1800(W)×2300(H)mm

Power (KW)

3KW

Electricity

380V/220V/ (adjustable)

Stacker layer

3 floor

Speed

0.5M/S

Total weight

2000KGS





Capacity table

Block Type

Size(L x W x H)

Pcs./Pallet

Pcs./Hour

Pcs./8 Hours

Hollow Block

390x190x190mm

4

625

5000

Hollow Block

390x150x190mm

5

780

6240

Hourdi Block

530x160x195mm

5

780

6240

Stock Brick

220x110x70mm

20

4500

36000

Paving Block

200x100x60mm

16

2300

18400

Paving Block

225x112.5x60mm

14

2000

16000



More details about WANTE MACHINE AND FACTORY

Steel board cutting~

Low investment QT4-18 fully automatic block machine brick machine

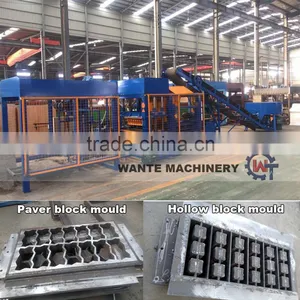

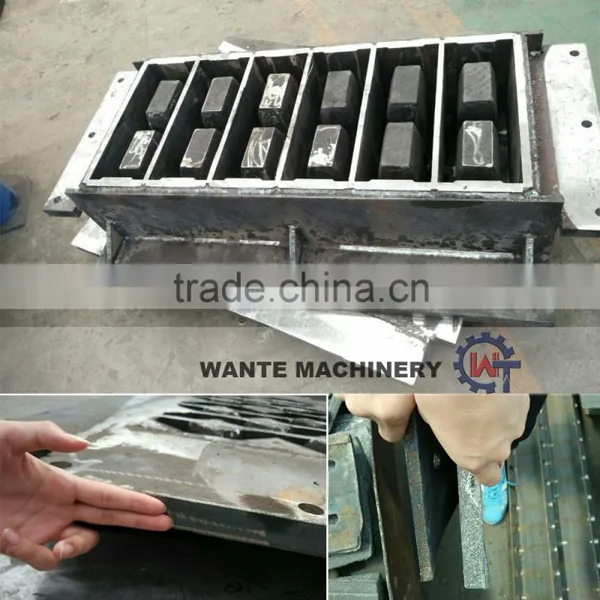

Block mould made by WANTE FACTORY~

Low investment QT4-18 fully automatic block machine brick machine

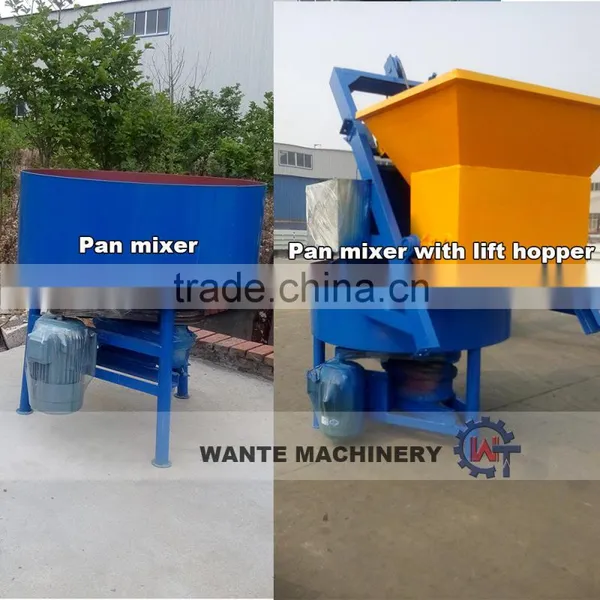

WANTE JD500 pan mixer with scaleboard~

Low investment QT4-18 fully automatic block machine brick machine



WANTE FACTORY manufactures machines mass production~

Low investment QT4-18 fully automatic block machine brick machine



Pan mixer with lift material hopper is customerized to save manpower~

Low investment QT4-18 fully automatic block machine brick machine



Low investment QT4-18 fully automatic block machine brick machine ~

fully automatic working process controlled by PLC, 16MPA working pressure with auto hydraulic system.

Low investment QT4-18 fully automatic block machine brick machine

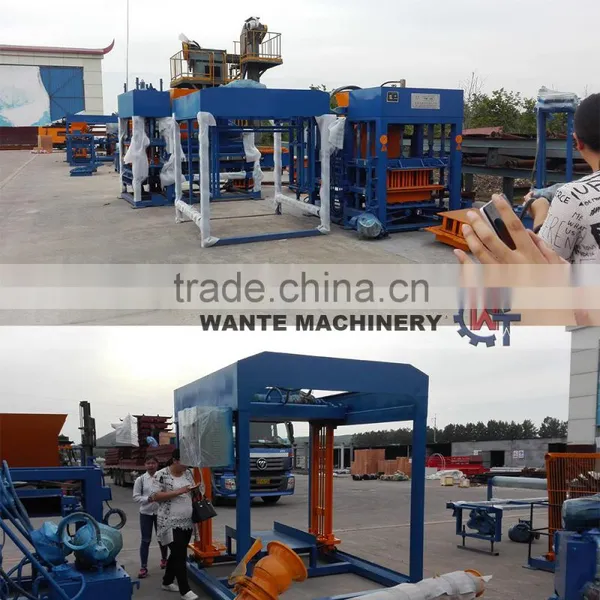

Machiner delivery~

Low investment QT4-18 fully automatic block machine brick machineLow investment QT4-18 fully automatic block machine brick machine



WANTE FACTORY spare parts warehouse~

Considerate after sale service is offered by WANTE FACTORY.

Low investment QT4-18 fully automatic block machine brick machineLow investment QT4-18 fully automatic block machine brick machine

We have different models of block making machine.Please contact us if you want to start block making bussiness.
