QT6-15 block moulding machines for sale,columbia concrete block machine

Name: QT6-15 block moulding machines for sale,columbia concrete block machine
Brand: wante
Availability: InStock

FOB Price

USD $23,560 - $46,900 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port qingdao port or any port of China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Paving Block Making Machine
Brick Raw Material	Concrete	Processing	Brick Molding Machine
Method	Hydraulic Pressure	Automatic	Yes
Capacity	1260pcs/hrs	Place of Origin	Shandong, China
Brand Name	wante	Model Number	QT6-15 brick making machine price
Voltage	220/240v/380v/adjustable	Power	29.1KW
Dimension(LWH)	3500x1700x2930mm	Certification	ISO9001&CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

The package divided
The full line need container loading
The spare parts will packed in small package
Some big parts will divided into small part of loading

Product Description

QT6-15 fully automatic block machine introduction:

1>QT6-15 can realized fully automatic,4 workers is enough for whole line.it including PLD1200 batching,JS750 mixer,,QT6-15 host machine,stacker.

2>one machine can produce hollow blocks,solid blocks,paving blocks,curbstone by changing different molds.we have specialized engineer team,whom can give you best solution for block design.

3>High quality of every parts of line.sensor brand omron,motor brand siemens or shanbo,ABB.PLC brand japan mitubishi.

4>Mass process of machines.All machines have the same standard,so one mold can be shared to other machines.and accesory avilable for customers all the time.

5>Mold all made by manganese steel with carburizing treatment,it will be wear-resistance and can be used for more than 200,000times.

6>High capacity.one mold 6 pieces for 400*200*200mm hollow blocks.the shaping clycle is 15s.

Production line showing:

QT6-15 block making machine line parts:

1.wheel loader

To transport the material like sand,gravel,stone chips to batching machine hopper.	Wheel loader
	Rated weight of the hopper (m3)	1
	Rated loading weight (T)	1.8
	Maximum breakout force	≥58kN
	Max discharging height (mm)	2510mm
	Maximum drawbar pull	2510mm
	Maximum drawbar pull	≥56kN
	Maximum grade ability	30°
	Gross weight (kg)	6200
	Demission(mm)	579821402920

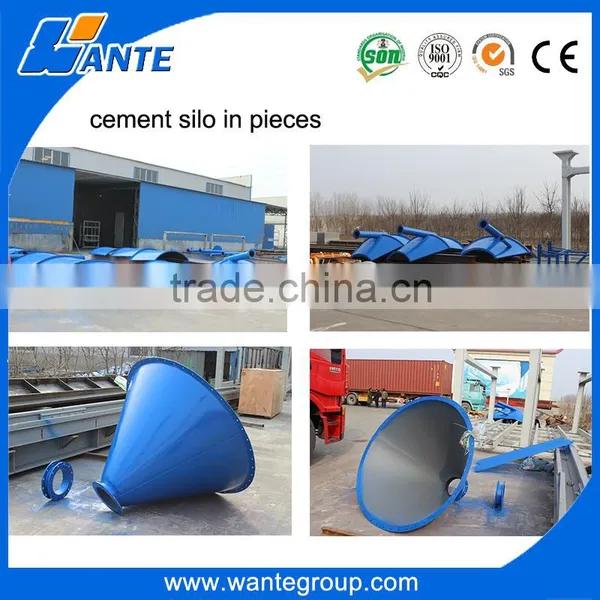

2.cement silo

To store the cement	Cement silo
	Length	11M
	capacity	50T
	Diameter	2.15M
	Total weight	5T

3.Batching machine

To store the material of sand,garvel,stone chips it adopts accumulate meaturing.	PLD1200 Batching machine
	Weigh bucket capacity (L)	1200
	Productivity (m3/h)	56
	Batching precision	±1%
	Max weighing capacity (kg)	3000
	Number of material matching	3
	Work loading height (mm)	3000
	Feeding belt speed (m/s)	1
	Power (kw)	12
	Gross weight (kg)	4000
	Dimension (mm)	900022003500

4.JS500 mixer

Roll compulsory mixer,water and cement filled automaticlly	JS500 mixer
	Charging Capacity (L)		800
	Discharging Capacity (L)		500
	Production Capacity (m3/h)		≥25
	Max Aggregate Diameter mm		≤40/60
	Cycle Time (s)		72
	Stirring Vane	Rev Speed (r/min)	31
		Quantity	2×7
	Stirring Motor	Model
		Power (KW)	18.5
	Lifting Motor	Model
		Power (KW)	5.5
	Pump Motor	Model
		Power (KW)	0.75
	Dimensions ( mm)	Travel State	3030×2520×2880
		Operation State	5025×3100×5680
	Total weight (Kg)		3500

nveryor belt

	Conveyor belt
	Belt width (M)	6
	Belt length (M)/KW	6/2.2
	Belt speed (M/S)	2

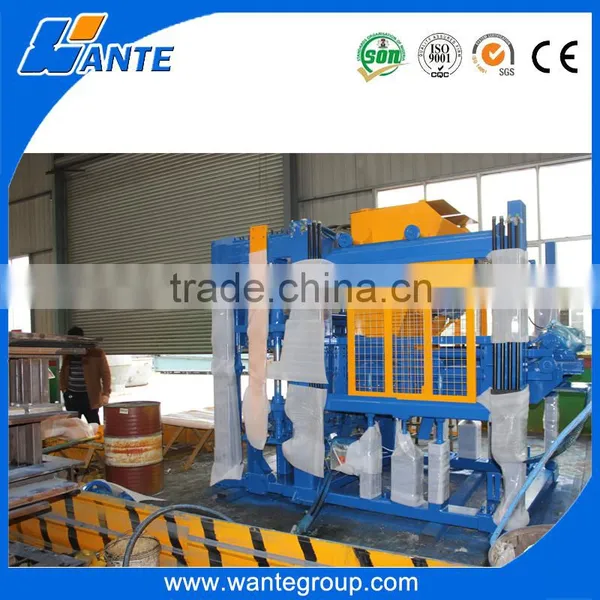

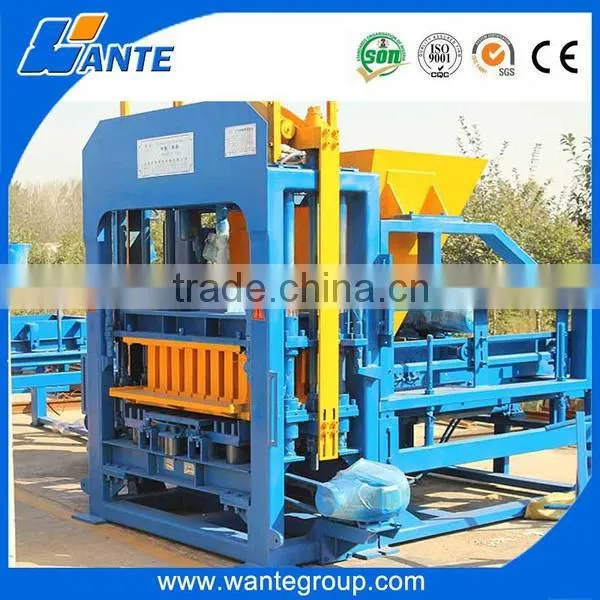

6.Host machine

	QT6-15 block machine
	Overall size	2850x2100x2600mm
	Shaping cycle	15-18 seconds
	Pallet size	850x750x25mm (bamboo)
		850x750x20mm (plastic)
	Vibration frequency	Max.5500 R/Min
	Electricity	380V/220V/ (adjustable)
	Vibration force	55KN
	Total weight	7000 KGS

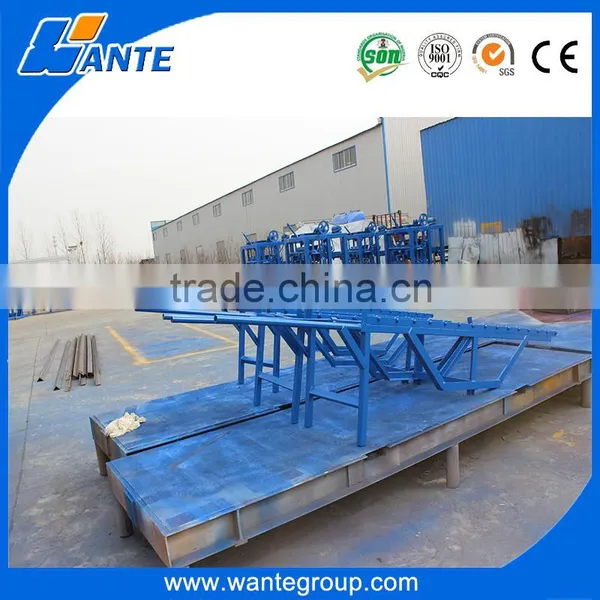

7.Stacker machine

it can be stacked with 3-4 layers	Stacker machine
	Overall size	2100(L)×1800(W)×2300(H)mm
	Power (KW)	3KW
	Electricity	380V/220V/ (adjustable)
	Stacker layer	3 floor
	Speed	0.5M/S
	Total weight	2000KGS

8.Forklift

	FORKLIFT
	Model	CPC 30
	Power supply	Diesel engine
	Lifting capacity	3000KGS
	Lifting height(mm)	3000
	Fork size (mm)	1000x120x35
	Diesel engine brand	CHINA XINCHANGN
	Size(mm)	2700x1250x2150

Product Display

QT4-15 working principle is the same with QT6-15,the biggest difference is capacity.

Packaging & Shipping

We have shipping company cooperated for years,can give you best advice about delivery.

You can tell me your port,and we check the delivery cost for you.

About the package,usually wood package,iron package or as customer's request.

Welcome to visit our factory at anytime.

Send email to get more information,like video,quotation,photos,delivery.

Our Services

Our services:

Pre-sale service support
According to each customer's demand and budget, we offer you the professional solution, process flow design and production equipment. More importantly, we welcome every customer to visit our factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.

During-sale service support

Assist clients to finish the factory planning. Before delivery equipment to customer s, complete debugging and checking. Provide a full instruction manual for the whole system. Provide technical guidance for the installation and use of the unit, including installation advice and electrical connection. Provide unit debugging and training for the operation of the machine on the working site and coordiante the customers with check and acceptance of the unit.
After-sale service support
Send technicians to installation site for the guidance, equipment adjustment and training. Provide high-quality spare parts thoughout the year, and the maintenance technicians are always ready to provide technical help

Company Profile

Linyi Wante Machinery Co., Ltd.

Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry. Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation. Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service. We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
