Help CenterWANTE BRAND QT4-18latest Product Fully Automatic and Decorative Concrete Block Making Machine in India Supplier's Choice
Related Products
-
WANTEBRAND Most Searched Product QT4-18 Fully Automatic Cement Block Moulding Machine Supplier's ChoiceUS$ 10,000 - 25,170MOQ: 1 Set -
WANTE BRAND QT4-18 Construction Equipment Automatic Cement Hollow Block Making Machine Type Supplier's ChoiceUS$ 10,000 - 25,170MOQ: 1 Set
-
QT4-18 Factory Supply Building Material Equipment Hollow Block Making Machine Supplier's ChoiceUS$ 10,000 - 25,170MOQ: 1 Set
-
WANTE BRAND QT4-18 High Capacity Automatic Concrete Hollow Block Making MachineUS$ 10,000 - 25,170MOQ: 1 Set
-
QT4-25 Cement Brick Making Machine, Concrete Block Making Machine Price in South AfricUS$ 10,000 - 25,170MOQ: 1 Set
1. Almighty. This block machine can produce hollow blocks, solid blocks and paver blocks of all shapes you want.
2. PLC of Mitstibishi, Motor of Simens and Sensor of Omron, their using life is much longer.
3. Water cooling system, much safer and efficient.
4. Material feeding,pressing, and pallet feedeing are all controlled by hydraulic fluid.
5. Fully automatic.
6. Can be drived by both electricity and diesel.
7. Easier to operate due to the fully automatic controller.
Main technical parameters
| dimension of host machine | 3700*2100*2300mm | power of host machine | 16.35kw |
| weight of host machine | 3.5T | vibration force | 35.5kn |
| the size of pallet | 850*550*25mm | models of mixer | JD500 |
| rated voltage | 380V/220V | forming period | 20-25s |
Details of the machine
Hollow blocks
Paver blocks
Curbstone

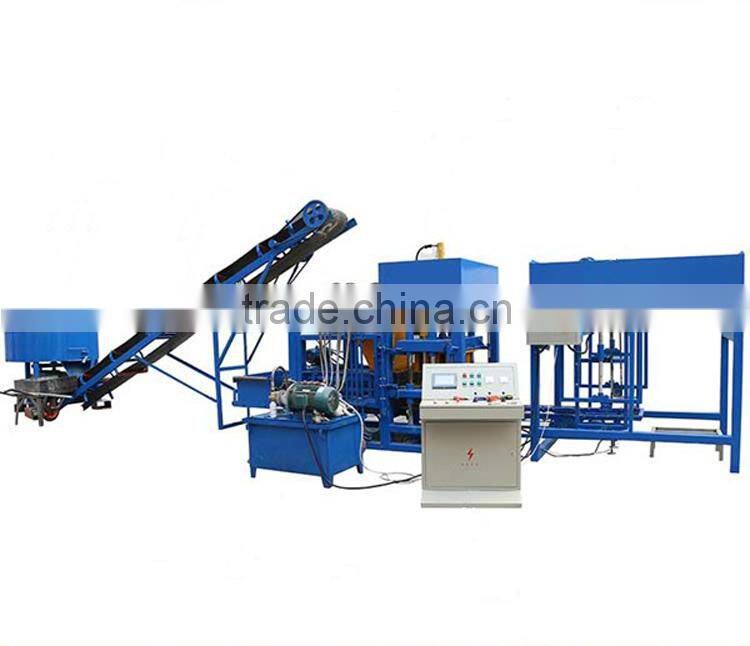

QT4-18 Automatic block machine line
Model | Qty | |
QT4-18 block machine | 1 | |
JD500 mixer | 1 | |
Accessory |
| |
Hollow block Mould | 1 | |
Barrow | 2 | |
Controller | 1 | |
Tools and fittings | 1 | |
Conveyor | 1 | |
Stacker | 1 | |
Pallets | 1000 | |

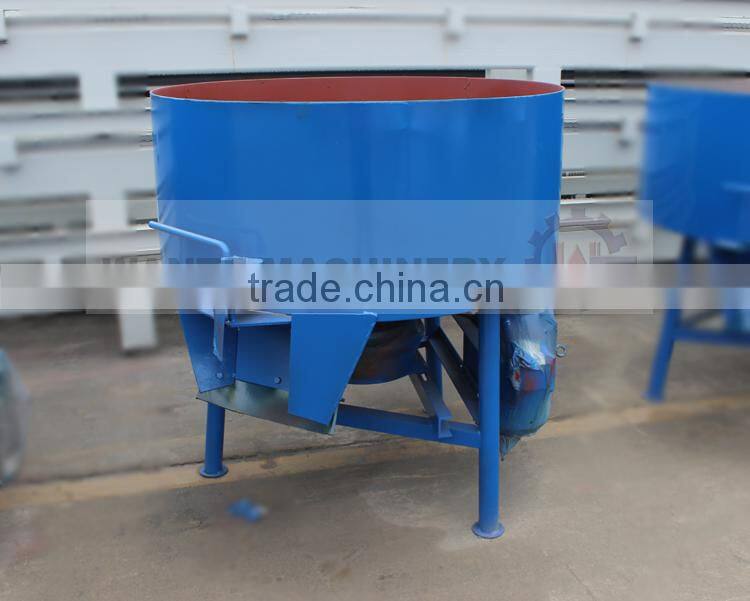

JD500
Main technical parameters
| charging capacity(L) | 800 | overall size(mm) | 1500*1500*1500 |
| discharding capacity(L) | 500 | mixer pan size(mm) | 1500*500 |
| production capacity(m3/h) | 10-12 | total mass | 700 |
| max aggregate diameter(mm) | 30-60 | electric power(kw) | 380V/50HZ |
Conveyor belt
Main technical parameters
Belt width (M) | 6 |
Belt length (M)/KW | 6/2.2 |
Belt speed (M/S) | 2 |

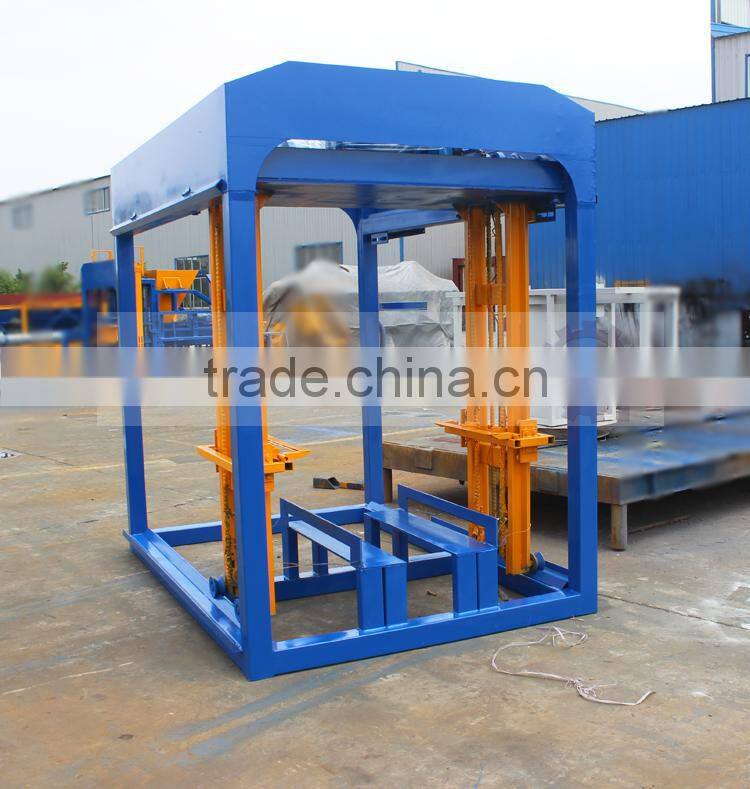

Stacker
Main technical parameters
Overall size | 2100(L)×1800(W)×2300(H)mm |
Power (KW) | 3KW |
Electricity | 380V/220V/ (adjustable) |
Stacker layer | 3 floor |
Speed | 0.5M/S |
Total weight | 2000KGS |
Pallets
|
FAQ
| 1.How can I trust you? |
Our products has been checked and got the certicification ISO9001 and CE, our machines have been exported to more
than 100 countries and always have a good reputation of its quality.What's more,every machine will be tested carefully
before shipment,making sure all the machines operate perfectly when it comes to your hand.
| 2.What about the payment terms? |
30% TT advance,70% balance payed before shipment.
| 3.How long is the guarantee? |
Our warranty is one year.
| 4.Can I help you for installation? |
For some products,we will send a professional and high levels installation engineer team at the same time the product pro
perly to the destination, in order to supply you a full range of products installation services.
Company information
Linyi Wante Machinery Co.,Ltd was bulit in 1996, its main products are all kinds of brick making machines and crushing machines. We are dedicated producers and professional sellers of all these machines, keeping best quality in the same price and the best price with the same quality. Our company can also produce machines based on your design if you need tailored machinery. This is Taber Jiang, contact me online or by phone and email if youhave any need about brick machines or crushing machines, we will never disappoint you.
Contact me
For getting more information please input your requirements in the following blank and then click"Send", you can also contact me by phone or WhatsApp.
Skye Fan, WhatsApp:0086 17853995660.
