Home > Products > Fully automatic block/brick machine > WANTE MACHINERY com QT4-18 fully automatic hollow block making machine for block making
WANTE MACHINERY com QT4-18 fully automatic hollow block making machine for block making
- Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
WANTE MACHINERY most popular QT4-18 fully automatic hollow block making machine for sale
-
WANTE MACHINERY best product QT4-18 fully automatic hollow block and paver block making machine line line
-
WANTE MACHINERY innovative industrial QT4-18 automatic hollow block making machine for house plan
-
WANTE MACHINERY low supply but high demand QT4-18fully automatic curbstone block making machine
-
WANTE BRAND China product QT4-18 automatic paver block making machine for list scale industry
-
WANTE BRAND top selling machinery product QT4-18 fully automatic paver block making machine
Supplier's Choice
Product Details
| Condition | New | Type | Other, fully automatic hollow block making machine | |
| Brick Raw Material | Clay | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 4600Pcs/8Hr | Place of Origin | Shandong, China | |
| Brand Name | Wante | Model Number | QT4-18 | |
| Voltage | 380v/220v/adjustable | Power | 16.5kw | |
| Dimension(L*W*H) | 2700X2100X2300MM | Certification | CE&ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
standard package or as buyers requirements
Product Description
| dimension of host machine | 3700*2100*2300mm | power of host machine | 16.35kw |
| weight of host machine | 3.5T | vibration force | 35.5kn |
| the size of pallet | 850*550*25mm | models of mixer | JD500 |
| rated voltage | 380V/220V | forming period | 20-25s |
1. PLC of Mitstibishi, Motor of Simens and Sensor of Omron, their using life is much longer.
2. Water cooling system, much safer and efficient.
3. Fully automatic.
4.Can be drived by both electricity and diesel.
Hollow blocks
Paver blocks
Curbstone

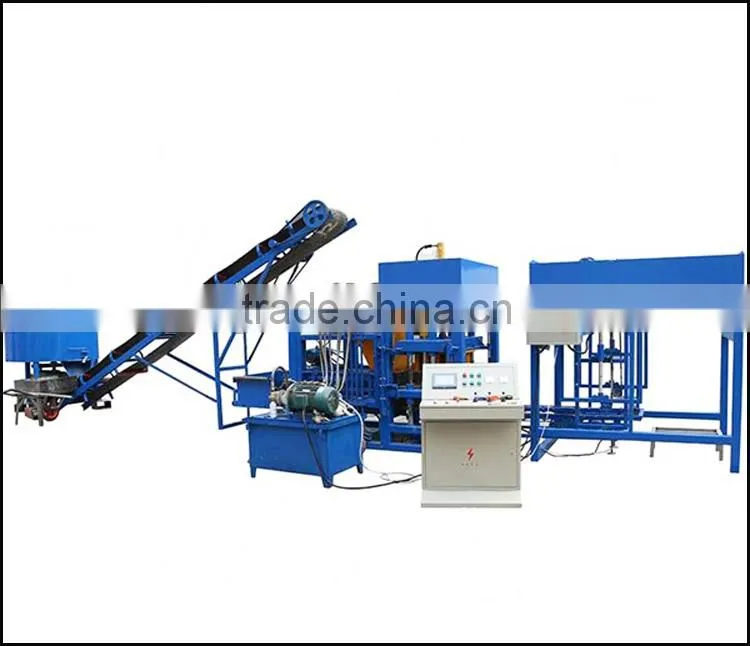

WANTE MACHINERY alibaba com QT4-18 fully automatic hollow block making machine line for block making
Model | Qty | |
QT4-18 block machine | 1 | |
JD500 mixer | 1 | |
Accessory |
| |
Hollow block Mould | 1 | |
Barrow | 2 | |
Controller | 1 | |
Tools and fittings | 1 | |
Conveyor | 1 | |
Stacker | 1 | |
Pallets | 1000 | |

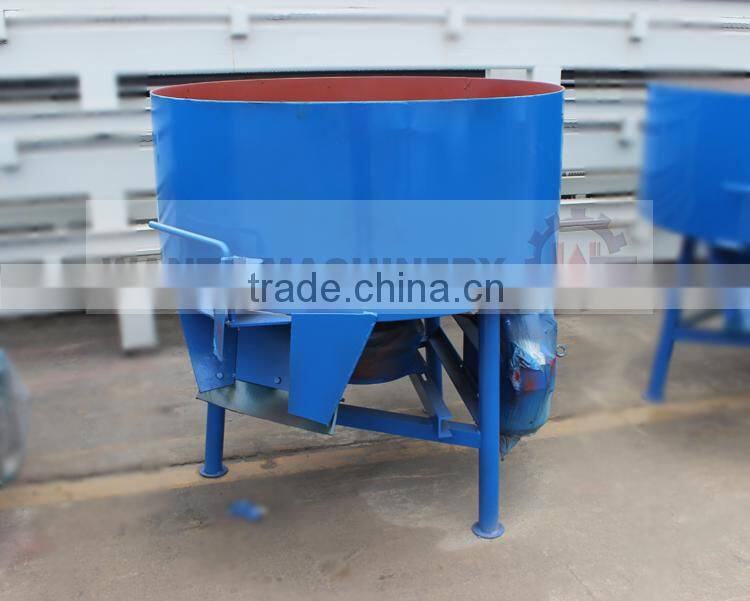

JD500 of WANTE MACHINERY alibaba com QT4-18 fully automatic hollow block making machine line for block making
Description: mixing the raw material with water, workers put raw material into mixer, and raw material were mixed evenly, this mixing process directly decide quality of block.
Main technical parameters
| charging capacity(L) | 800 | overall size(mm) | 1500*1500*1500 |
| discharding capacity(L) | 500 | mixer pan size(mm) | 1500*500 |
| production capacity(m3/h) | 10-12 | total mass | 700 |
| max aggregate diameter(mm) | 30-60 | electric power(kw) | 380V/50HZ |

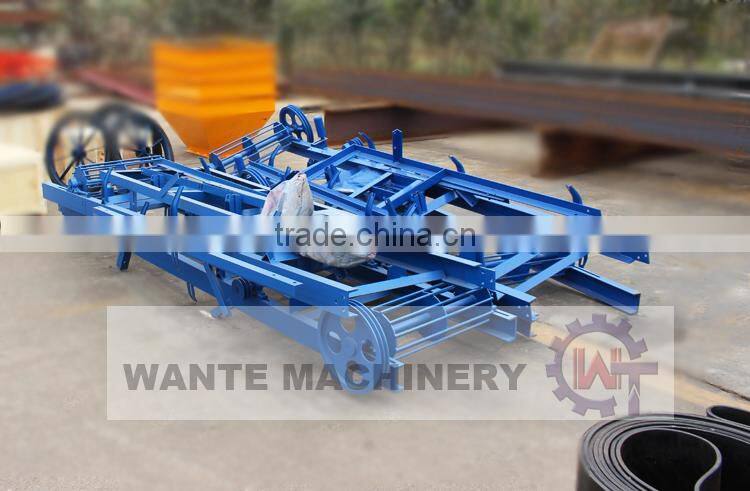

Conveyor belt of WANTE MACHINERY alibaba com QT4-18 fully automatic hollow block making machine line for block making
Decription: transporting the mixed material from mixer to block making machine's hopper.
Main technical parameters
Belt width (M) | 6 |
Belt length (M)/KW | 6/2.2 |
Belt speed (M/S) | 2 |

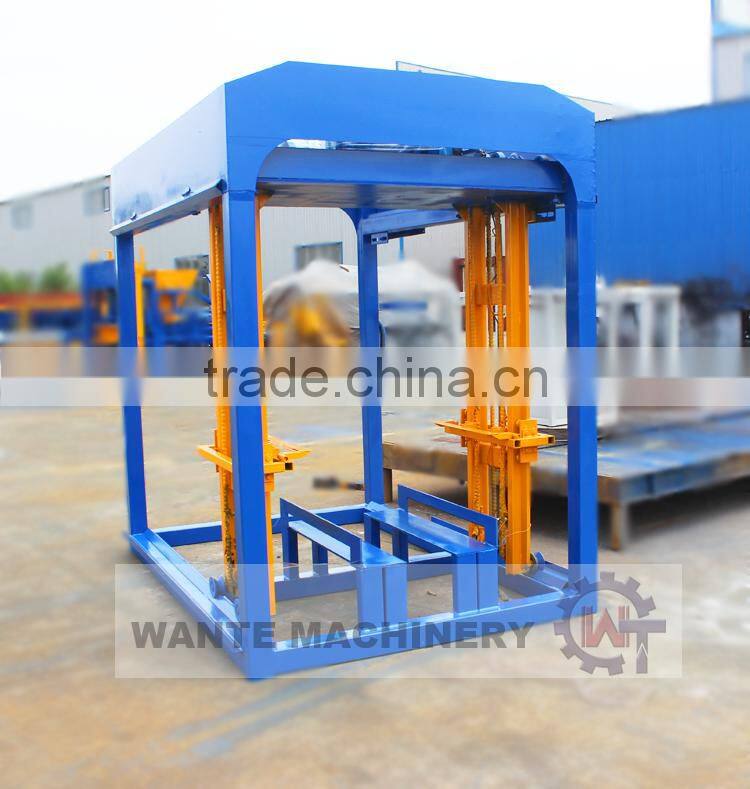

Stacker of WANTE MACHINERY alibaba com QT4-18 fully automatic hollow block making machine line for block making
Description: laying fresh blocks together and transporting those blocks to other place by forklift for dry.
Main technical parameters
Overall size | 2100(L)×1800(W)×2300(H)mm |
Power (KW) | 3KW |
Electricity | 380V/220V/ (adjustable) |
Stacker layer | 3 floor |
Speed | 0.5M/S |
Total weight | 2000KGS |
Pallets of WANTE MACHINERY alibaba com QT4-18 fully automatic hollow block making machine line for block making
FAQ
| 1.How can I trust you? |
Our products has been checked and got the certicification ISO9001 and CE, our machines have been exported to more than 100 countries and always have a good reputation of its quality.What's more,every machine will be tested carefullybefore shipment,making sure all the machines operate perfectly when it comes to your hand.
| 2.What about the payment terms? |
30% TT advance,70% balance payed before shipment.
| 3.How long is the guarantee? |
Our warranty is one year.
| 4.Can I help you for installation? |
For some products,we will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services.
Company information
Linyi Wante Machinery Co.,Ltd was bulit in 1996, its main products are all kinds of brick making machines and crushing machines. We are dedicated producers and professional sellers of all these machines, keeping best quality in the same price and the best price with the same quality. Our company can also produce machines based on your design if you need tailored machinery. This is Taber Jiang, contact me online or by phone and email if youhave any need about brick machines or crushing machines, we will never disappoint you.
Sale team and technology team
Contact me
For getting more information please input your requirements in the following blank and then click"Send", you can also contact me by phone or WhatsApp.
Skye Fan, WhatsApp:0086 17853995660.
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry. Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation. Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service. We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
