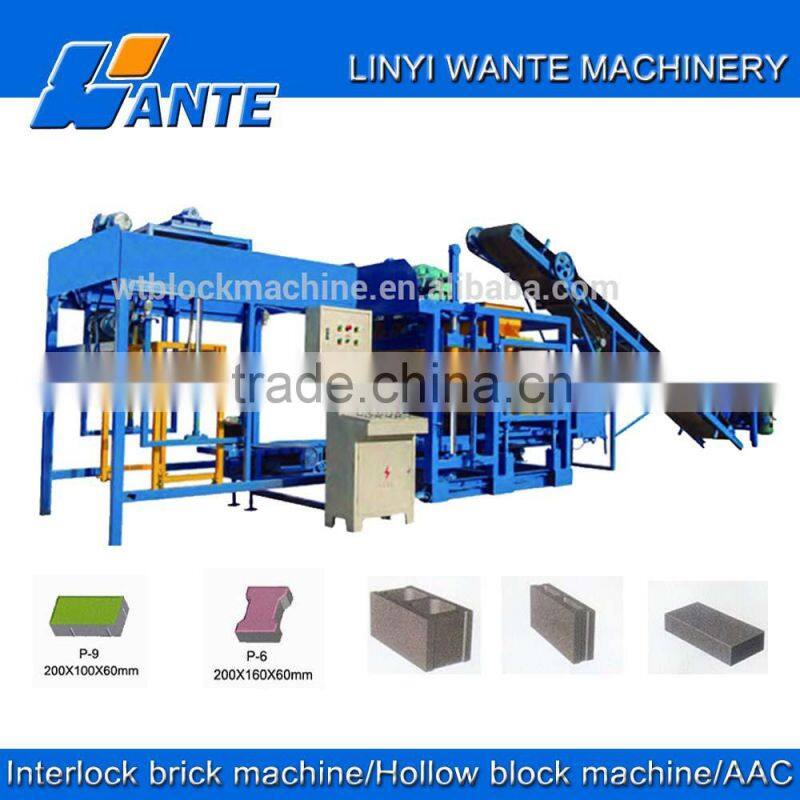

WANTE BRAND QT4-18 Concrete interlocking block brick making machine line from Factory
QT4-25 is a automatic production line, including pan mixer (can change into JS series mixer), conveyor, mold etc.
Compared to QT4-15, it has same function but much cheaper.
Main parameters
WANTE BRAND QT4-18 Concrete interlocking block brick making machine line from Factory
QT4-25 block machine | ||
Overall size | 3600(L)×2100(W)×1650(H)mm | |
Shaping cycle | 20 - 25seconds | |
Pallet size | 850×450×25mm (bamboo) | |
| 850×450×25mm (Plastic) | |
Vibration frequency | Max.4000 R/Min | |
Upper vibrator | 4KW | |
Nether vibrator | 4kw | |
Electricity | 380V/220V/ (adjustable) | |
Total weight | 3200 KGS | |
Conveyor belt | ||
Belt width (M) | 6 | |
Belt length (M)/KW | 6/2.2 | |
Belt speed (M/S) | 2 | |

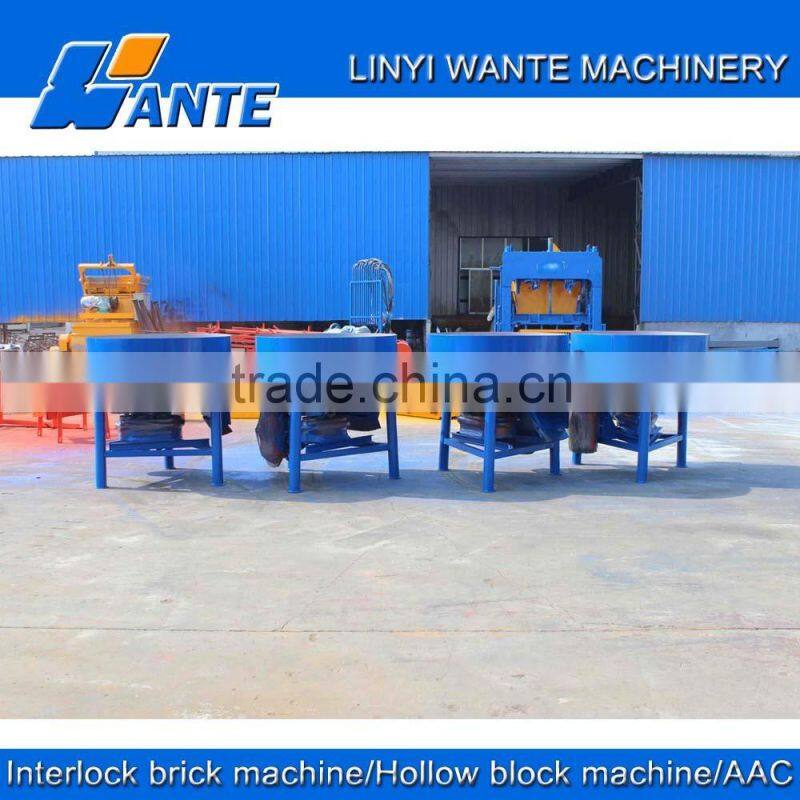

JD500 mixer | ||
Overall size | 1500x1500x1400mm | |
Shaping cycle | 5 mins | |
Volume | 500L (50Kgs Cement) | |
Electricity | 380V/220V/ (adjustable) | |
Total weight | 600KGS | |
Capacity table
WANTE BRAND QT4-18 Concrete interlocking block brick making machine line from Factory
Block size | Pcs/mould | Pcs/hour | Pcs/day |
400x200x200mm | 4 | 450-500 | 3600-4000 |
400x150x200mm | 6 | 600-700 | 4800-5600 |
240x115x53mm | 24 | 3000 | 24000 |

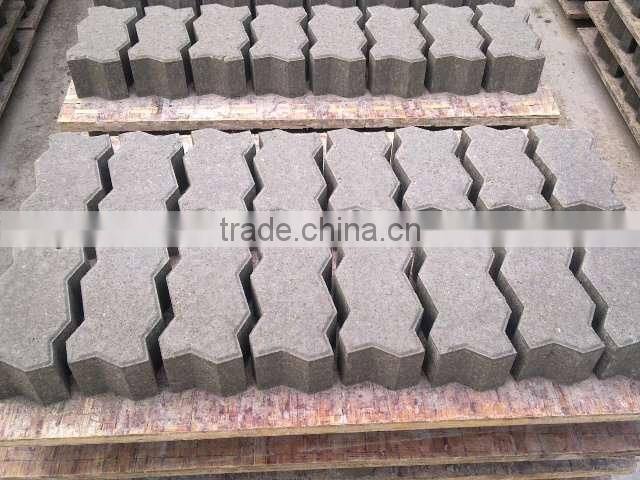

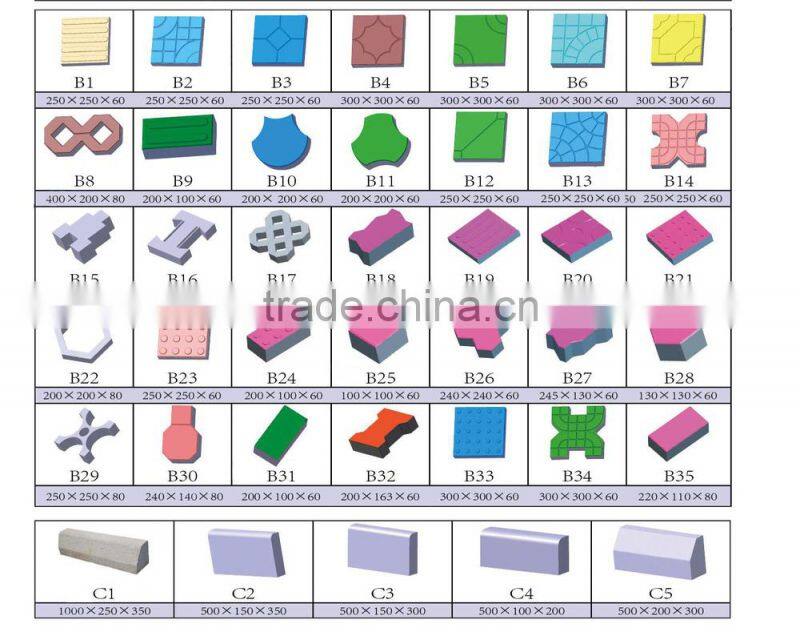

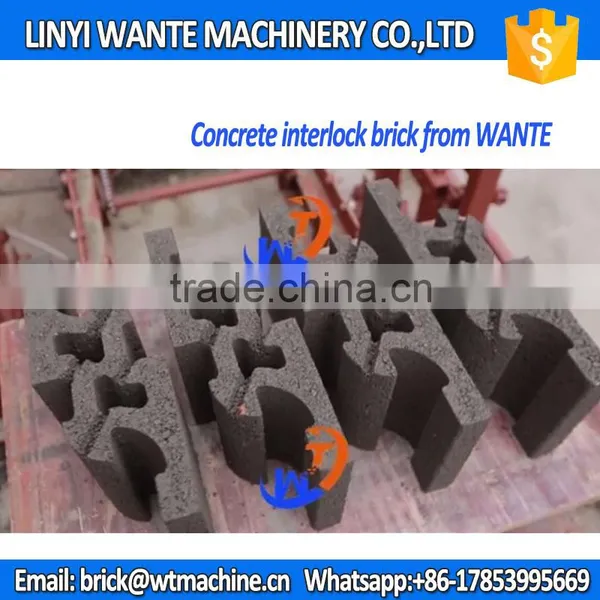

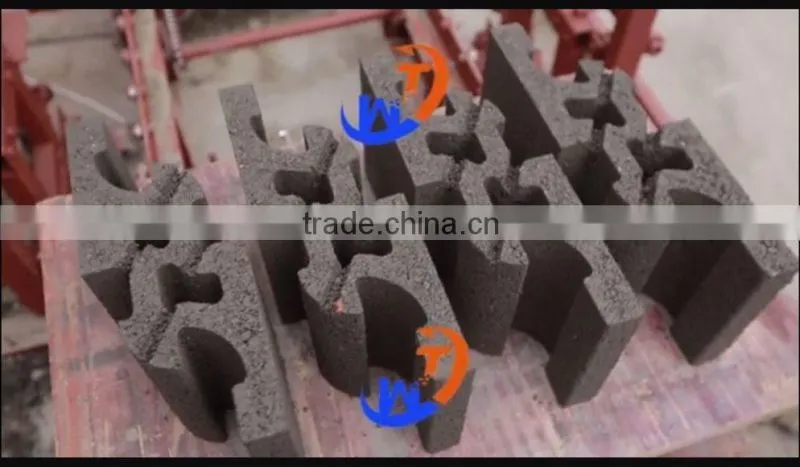

Block samples
WANTE BRAND QT4-18 Concrete interlocking block brick making machine line from Factory

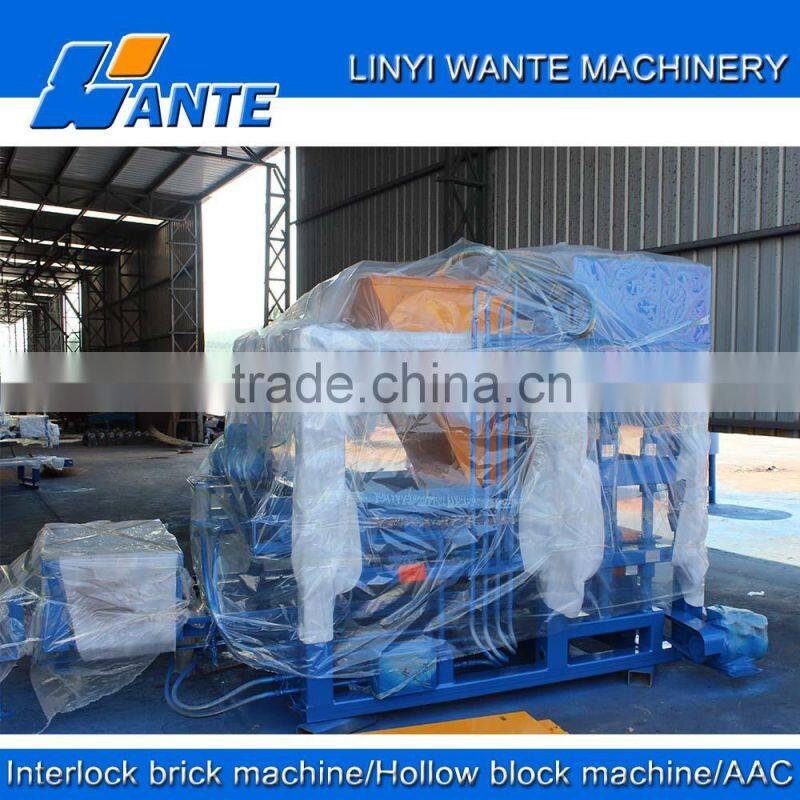

Finished painting, ready to delivery
WANTE BRAND QT4-18 Concrete interlocking block brick making machine line from Factory

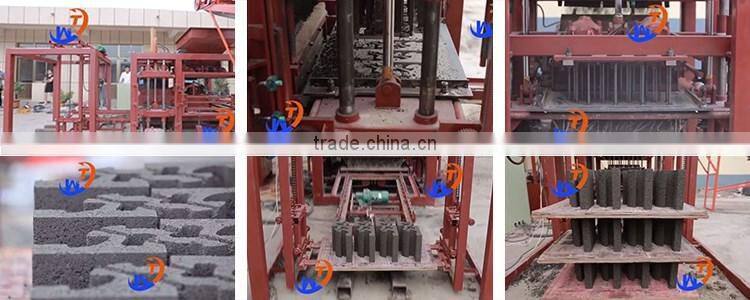

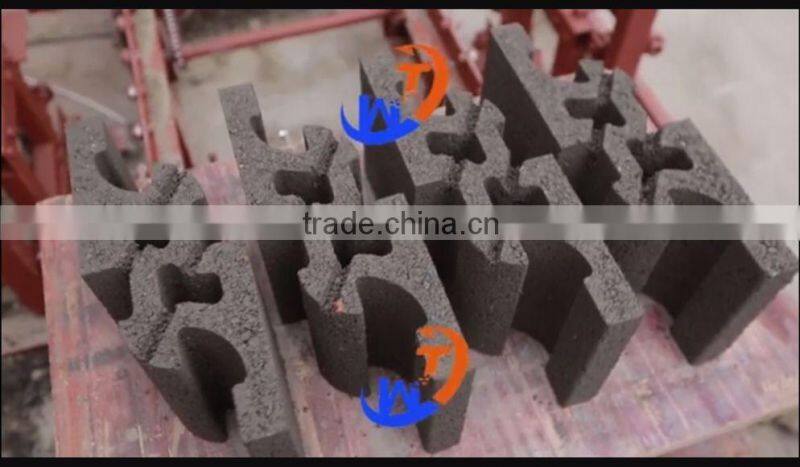

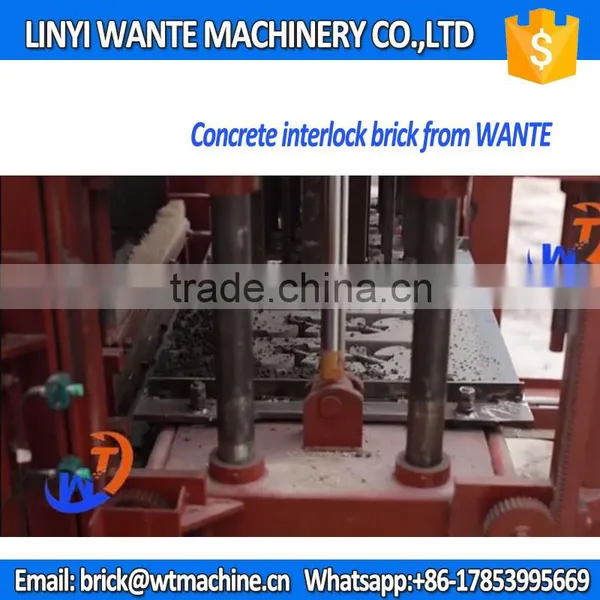

---concrete interlock brick making machine
WANTE BRAND QT4-18 Concrete interlocking block brick making machine line from Factory

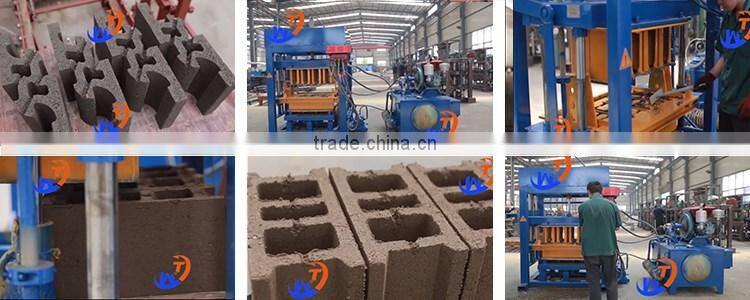

-----Diesel type block making machine
WANTE BRAND QT4-18 Concrete interlocking block brick making machine line from Factory

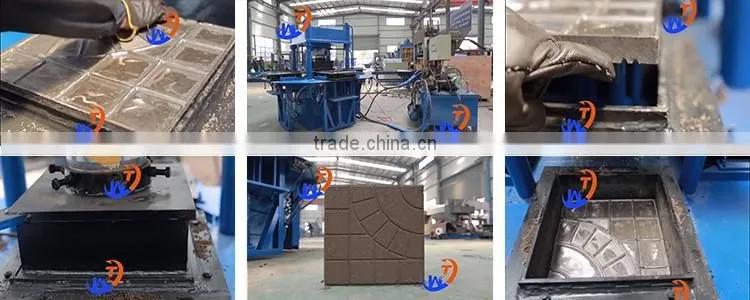

-------DY150T paver machine
WANTE BRAND QT4-18 Concrete interlocking block brick making machine line from Factory

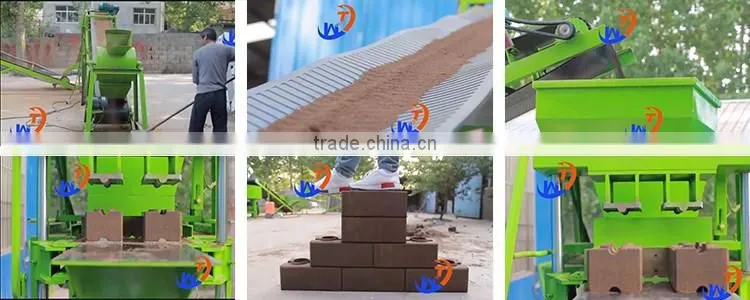

---------WT Series clay interlocking brick making machine line showing
WANTE BRAND QT4-18 Concrete interlocking block brick making machine line from Factory
-------------- more inforamtion and videos, please contact Jojo +86-17853995669
HAVE A WANTE DAY !
