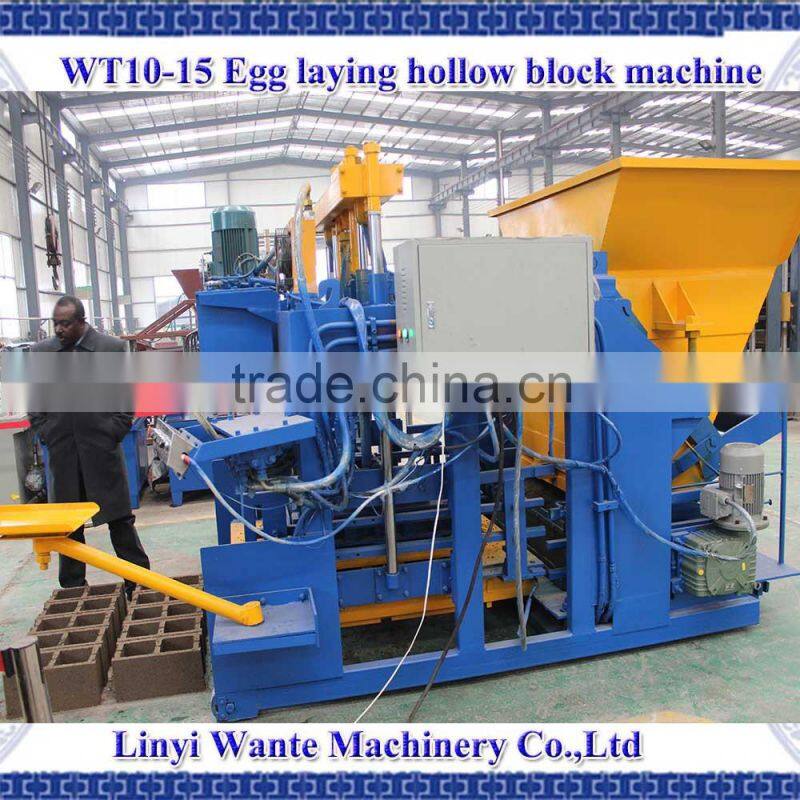

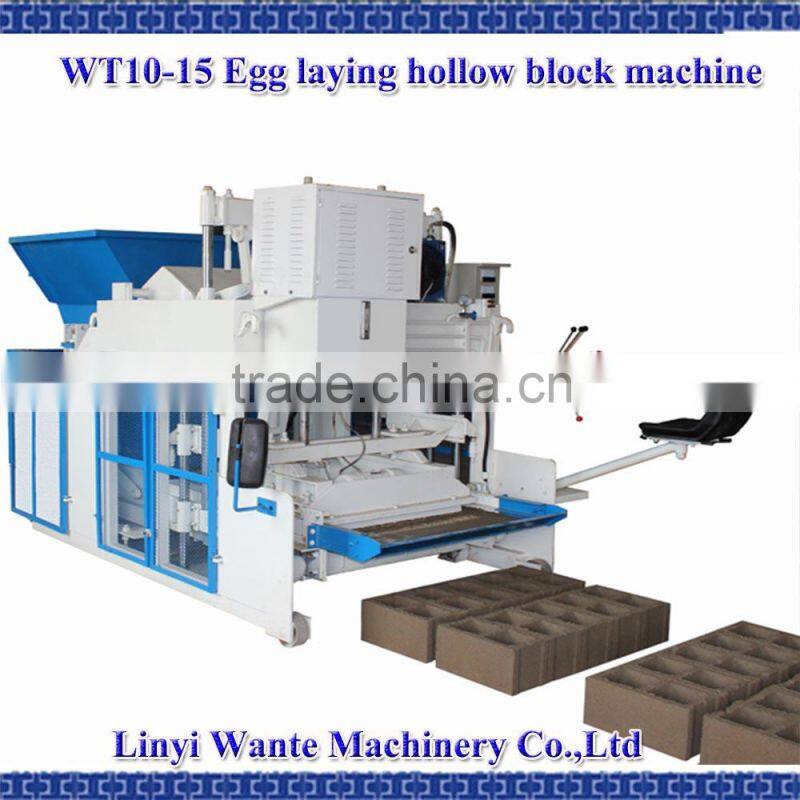

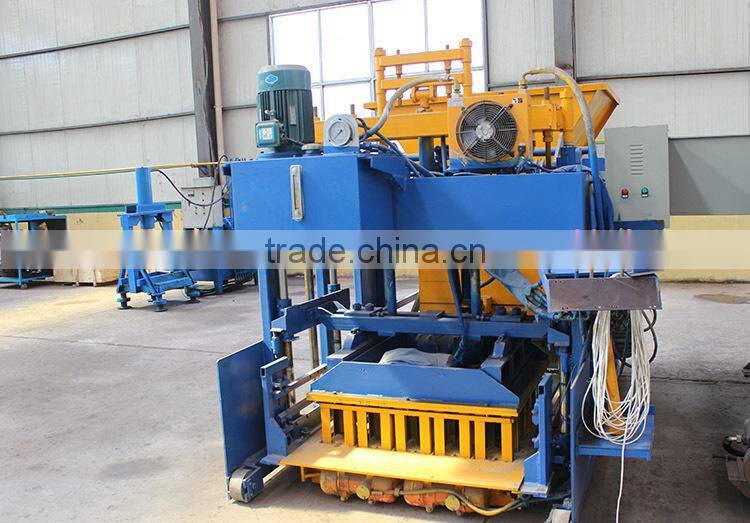

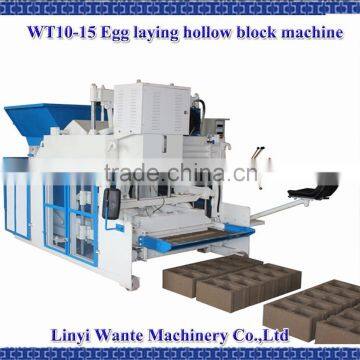

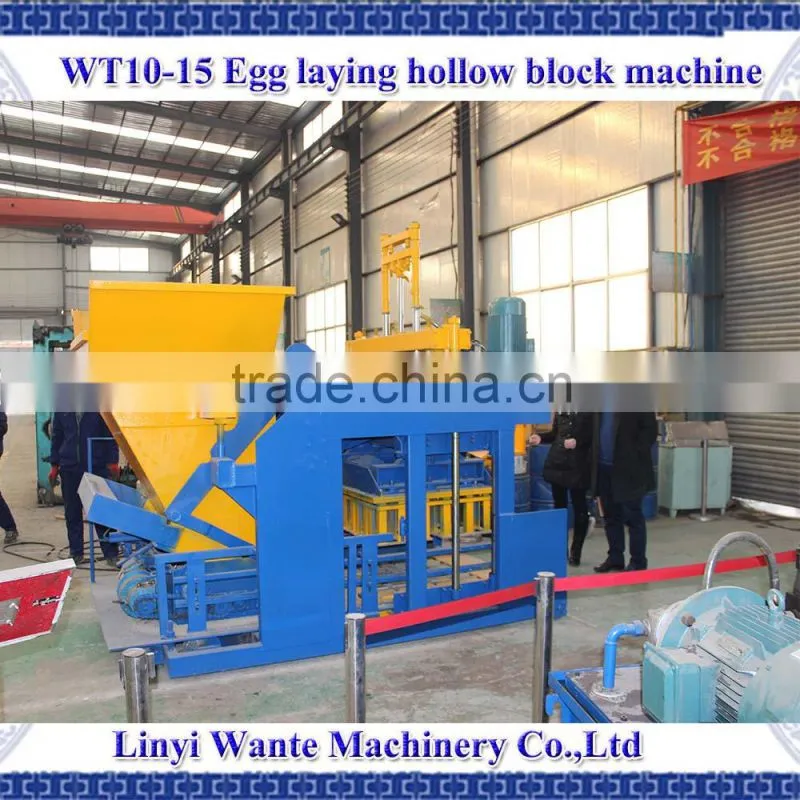

2015 China Block Machinery New WT10-15 used egg laying block machine
WT10-15 informations
Overall dimension | 3150*1800*2400mm |
Demold method | Hydraulic |
Turning method | Hydraulic |
Hydraulic system pressure | 16-20Mpa |
Excitation frequency | 3200Hz |
Total power | 16KW |
Total mass | 4200KG |
Molding cycle | 10-15S |
Molding | 10 Pcs/mould(400*200*200/390*190*190 mm) |
Capacity | 2000-9000Pcs/hour |
Types of bricks can be made | 390*240*190/390*190*190/390*115*190 All kinds of moulds can be made by customers' drawings |
Moving method | Automatically move and hydraulic steering |
Excitation way | Three-dimensional box excitation |
Raw material | Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
WT10-15 capacity
Item | Specification size | Quantity per mold | Cycle moulding | Per hour | Per day |
Hollow brick | 400*200*200 | 10pcs | 15-20s | 1800-2400pcs | 17280-21600pcs/day |
Porous brick | 240*115*90 | 64pcs | 15-20s | 11520-15360pcs | 92160-122880pcs/day |
Hollow bricks | 400*150*200 | 14pcs | 15-17s | 2970-3360pcs | 29700-33600pcs/day |

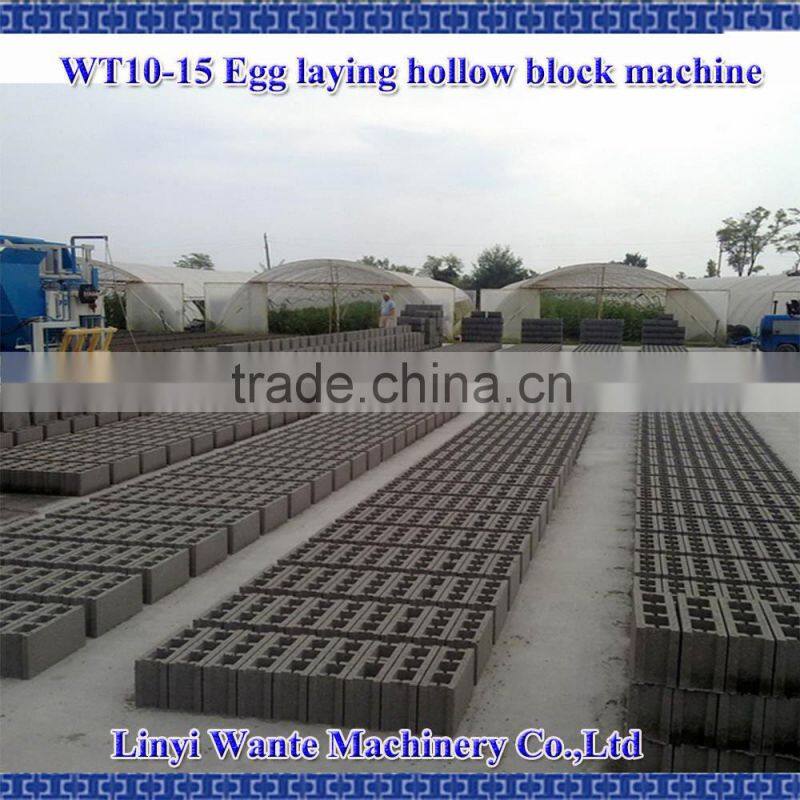

WT10-15 Big capacity
WT10-15 block making machine line informations

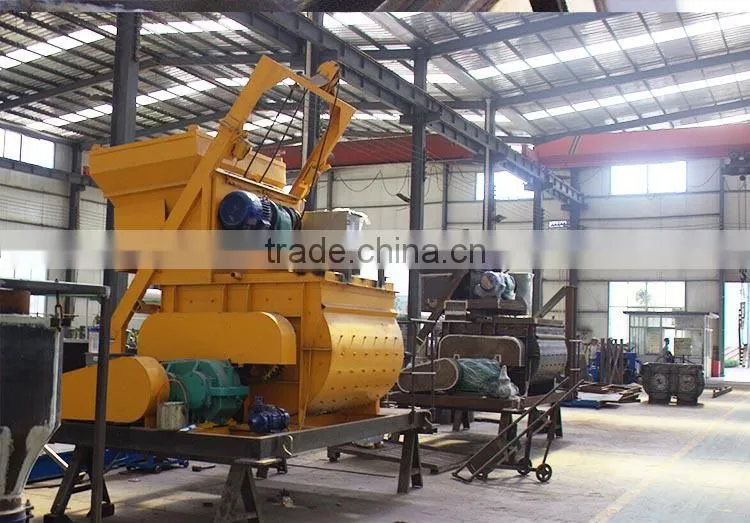

WT10-15 block making machineline informations---concrete mixer

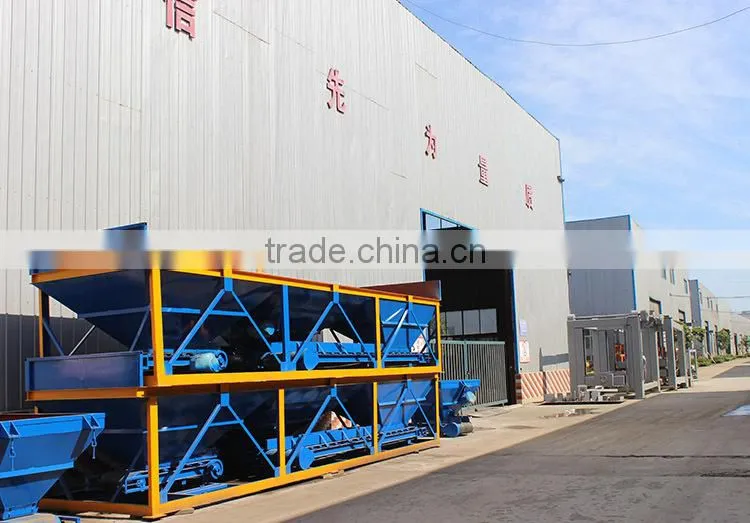

WT10-15 block making machine line informations---batching machine

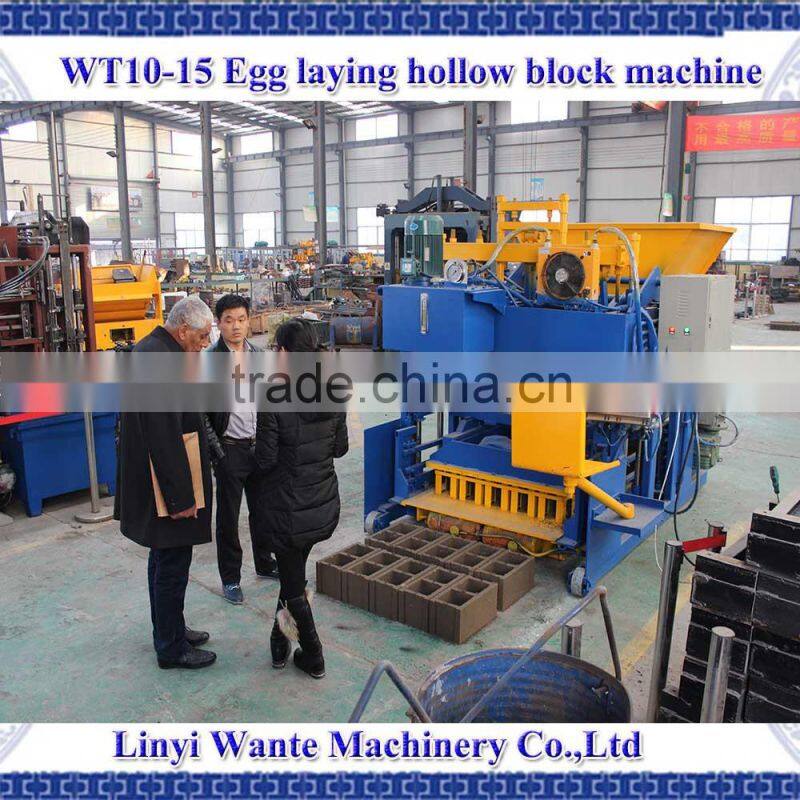

WT10-15 our customers

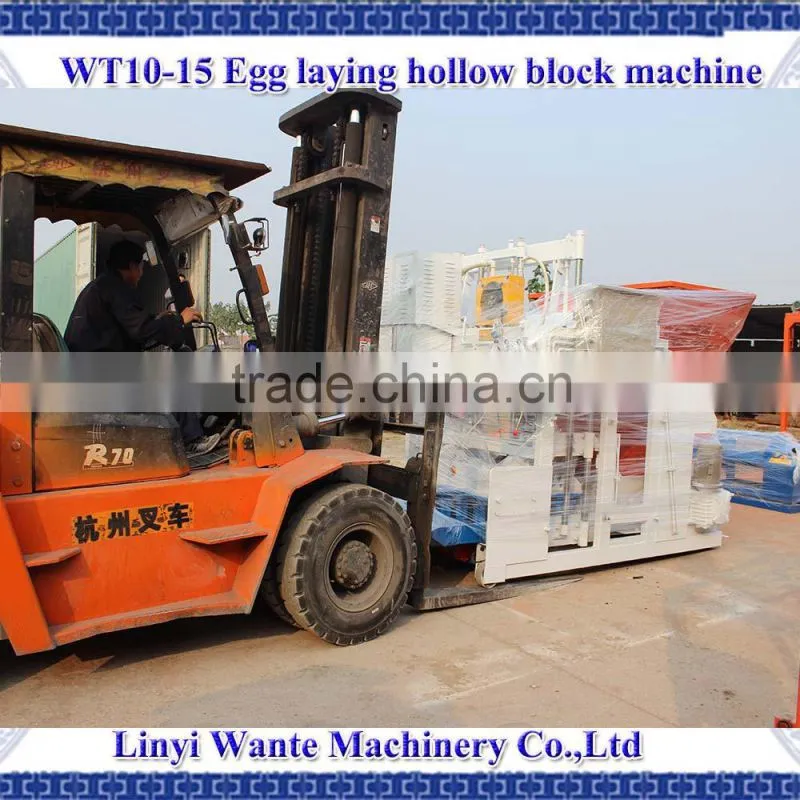

WT10-15 delivery photos

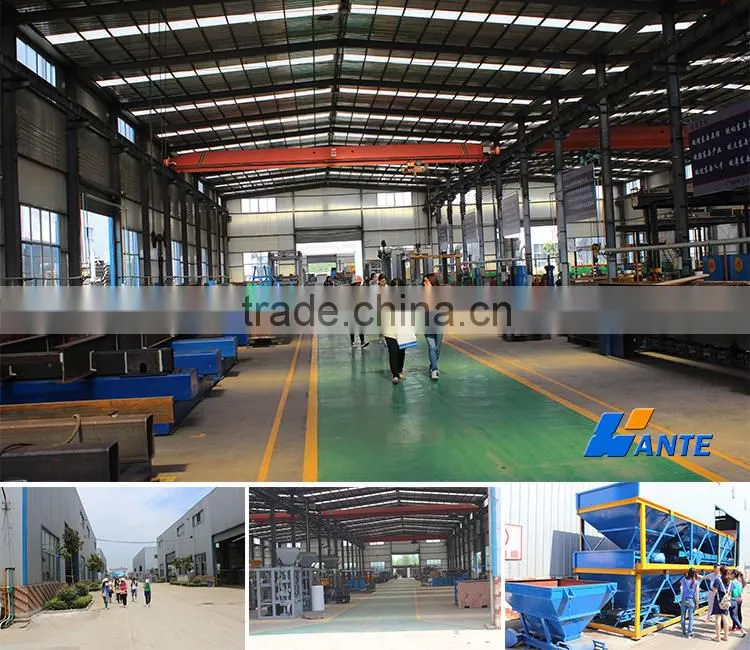

Our factory |
|
Our Team |
| |
