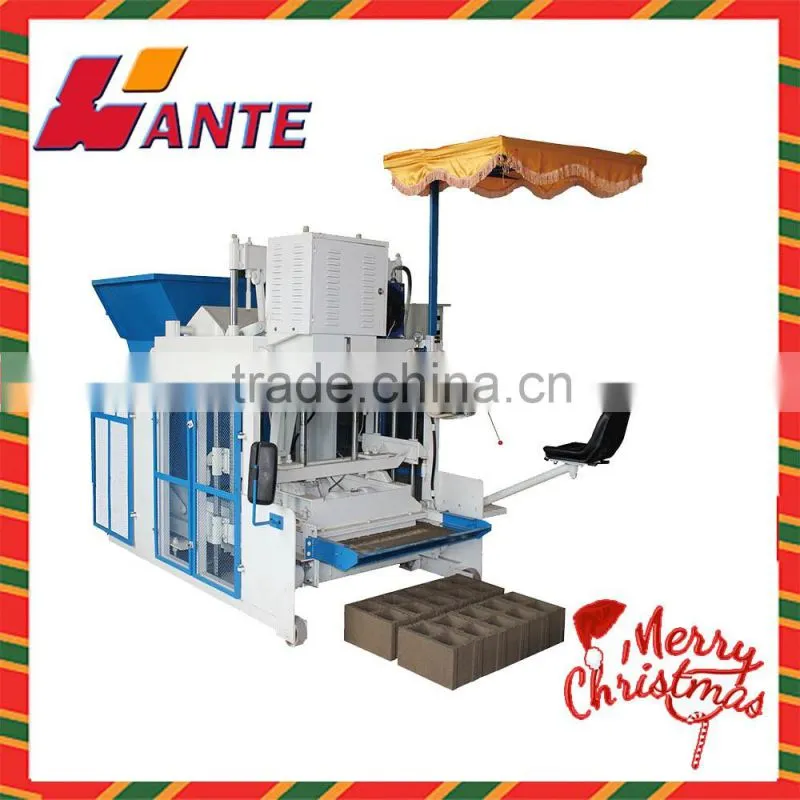

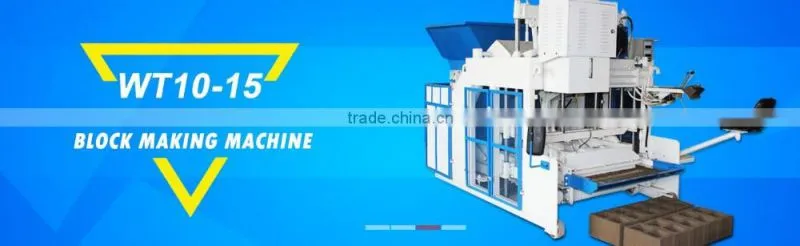

Merry Christmas WT12-15 WT10-15 concrete hollw block making machine for sale
Main feautures of WT10-15:
| 1>Unique air cooling system, gurantee the safety |
| 2>If you need , we can change the walking wheel to big rubber wheel, which suits the unplain ground |
|
3>The working life of our machine can achieve more than 10 years, that is because we use steel from Baogang steel factory, all the motors and accessories are from famous brands |
| 4>Our workers have en average 10 years experience, make every euqipment perfectly |
|
5>Our machines are made with strict standard, if you need to change or add something, we can offer perfectly matched ones |
Merry Christmas WT12-15 WT10-15 concrete hollw block making machine for sale
Technical parameters
Overall dimension |
3150*1800*2400mm |
Demold method |
Hydraulic |
Turning method |
Hydraulic |
Hydraulic system pressure |
16-20Mpa |
Excitation frequency |
3200Hz |
Total power |
16KW |
Total mass |
4200KG |
Molding cycle |
10-15S |
Molding |
10 Pcs/mould(400*200*200/390*190*190 mm) |
Capacity |
2000-9000Pcs/hour |
Types of bricks can be made |
390*240*190/390*190*190/390*115*190 All kinds of moulds can be made by customers' drawings |
Moving method |
Automatically move and hydraulic steering |
Excitation way |
Three-dimensional box excitation |
Raw material |
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Merry Christmas WT12-15 WT10-15 concrete hollw block making machine for sale
WT10-15 capacity
Item |
Specification size |
Quantity per mold |
Cycle moulding |
Per hour |
Per day |
|
Hollow brick |
400*200*200 |
10pcs |
15-20s |
1800-2400pcs |
17280-21600pcs/day |
|
Porous brick |
240*115*90 |
64pcs |
15-20s |
11520-15360pcs |
92160-122880pcs/day |
Hollow bricks |
400*150*200 |
14pcs |
15-17s |
2970-3360pcs |
29700-33600pcs/day |
WT10-15 mould and mixing material
360 degree rotation to make the material liquified faster and better

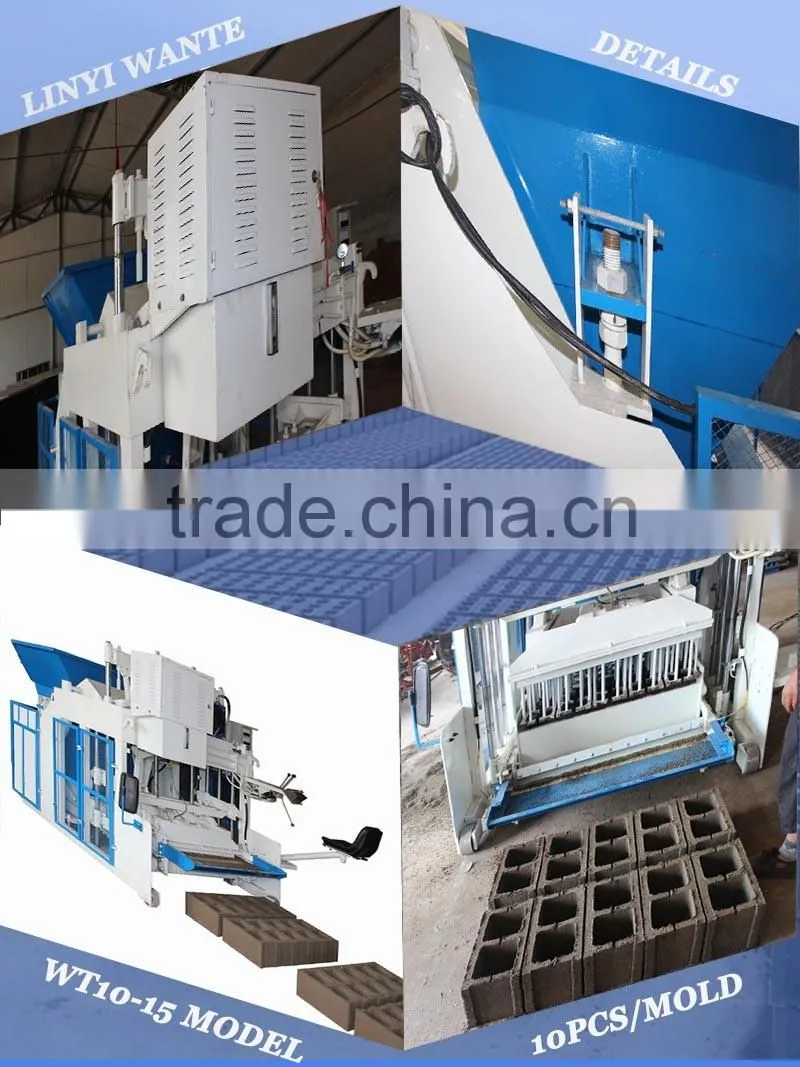

More details part of egg laying block making machine
Our factory |
|
Our Block machine |
|
|
MEERY CHRSITMAS |
|
|
