WT1-20 Interlocking Brick and Block Dimensions

WT1-20 Interlocking Brick and Block Dimensions photo-1
US$ 5,000 - 5,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Interlock Block Making Machine
Brick Raw Material:
Clay
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or any port of China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Interlock Block Making Machine
Brick Raw Material Clay
Processing Brick Molding Machine
Method Hydraulic Pressure
Automatic No
Capacity 2000-2400pcs
Place of Origin Shandong, China
Brand Name Wante
Model Number WT1-20 interlocking machine
Voltage 220v/240v/380v/440v/adjustable
Power 5.5kw
Dimension(L*W*H) 1080x1080x1400mm
Certification ISO9001&CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



1.Hydroform interlocking  brick and block dimensions price



1>Hydroform interlocking machine
2>CE&ISO9001:2008
3>Min order:1 set
4>Capacity:2000-2400pcs

5>Warranty:one year

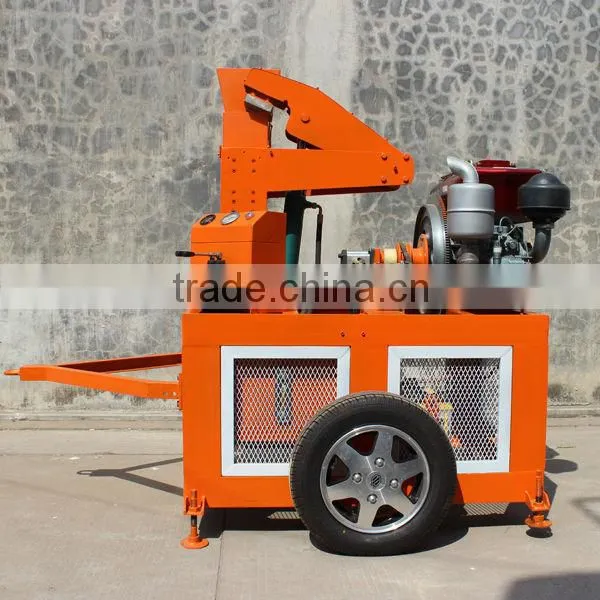

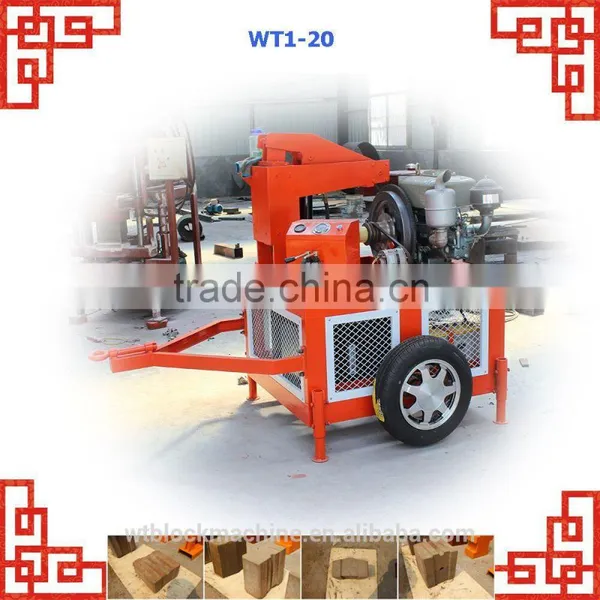

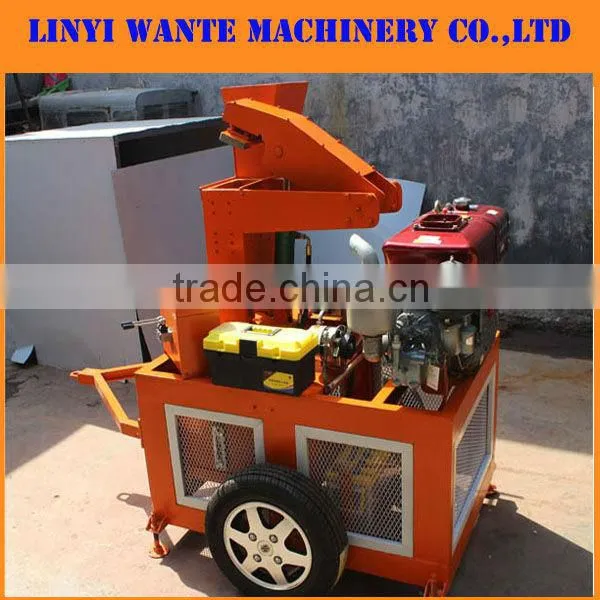

WT1-20 hydroform interlocking machine is our newest soil and cement brick making machine.

it use clay or soil or concrete materials.you can chose diesel enginee or motor.

so it is very good for the placewhere there is no power or electricity.

one machine can produce differnt kinds of interlocking block by changing moulds.

when building ,just lock them together





WT1-20 interlocking brick and block dimensions

3. brick and block dimensions parameters

Main specification and technical parameters

Overall size

1080(L)×1080(W)×1400(H)mm

Shaping cycle

20seconds

Power

5.5KW

6-8 Hp diesel engine

Pressure

16Mpa

Total weight

700 KGS



WT1-20 interlocking brick and block dimensions

















































































brick and block dimensions capacity

Block size

Pcs/mould

Pcs/hour

Pcs/day

230x220x115mm

1

250-300

2000-2400



4.Hydroform  brick and block dimensions Materials proportion



3.Materials proportion

This is the most popular proportion in making block making machine:

 1. cement,clay



Raw Materials

Quantity per piece

Water

3%

Cement

6-8%

clay

80-90%

Other specify

You can change the proportion depend on your needs.

 This block is heavy,but strong



2. Full clay



Raw Materials

Quantity per piece

Water

3%

clay

90-95%

Other specify

You can change the proportion depend on your needs.

This block is light,but not so strong

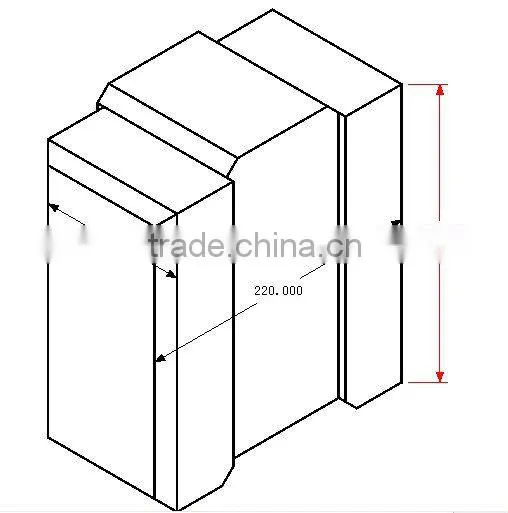

 4.Block design and drawing:

WT1-20 interlocking brick and block dimensions






 WT1-20 interlocking brick and block dimensions

...
