stone jaw crusher for mine
- 100 Set / Sets per Month
- Qingdao port or any port in China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Jaw Crusher | Motor Type: | AC Motor |
Power(W): | 30-55kw | Capacity(t/h): | 130-750 | Place of Origin: | Shandong, China |
Brand Name: | Wante | Model Number: | PE | Certification: | ISO9001&CE |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Nude package in one container
Plywood package in less than one container
Product Description
1. stone jaw crusher for mine Introduction
stone jaw crusher for mine is a kind of heavy duty machine which can crush materials into even granularity. Our hard rock jaw crusher has the characteristics of high reduction ratio, high productivity, simple structure, and reliable performance, etc. Hard rock jaw crusher is convenient to maintain and practical to use.
stone jaw crusher for mine can be used in mining industry, metallurgical industry, construction, smelting, road building, chemical industry, and other fields, for crushing various materials whose compressive strength is not more than 320 MPa.
2. stone jaw crusher for mine Features
1.High ratio of crushing,
2.Even final size,
3.Simple structure,
4.Reliable working condition,
5.Easy maintenance,
6.Low operating cost.
3. stone jaw crusher for mine Operating Principle

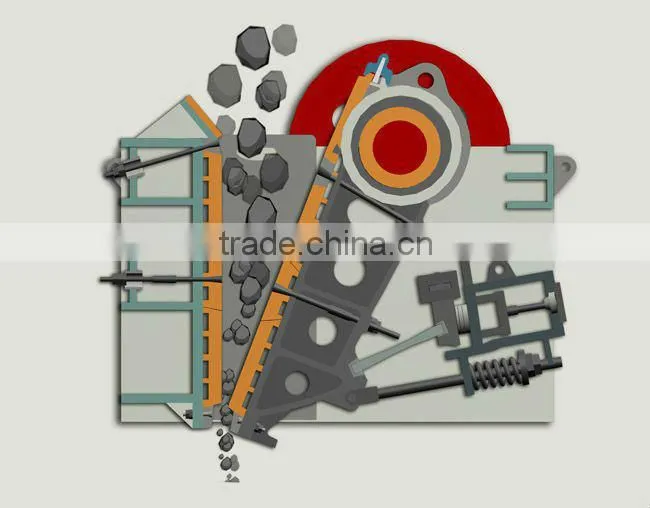

stone jaw crusher for mine uses motor as its power. Through the motors wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
4. stone jaw crusher for mine Technical Data
Model | Feed Opening Size(mm*mm) | Max. Feed Edge(mm) | Discharge Opening Range(mm) | Capacity (t/h) | Eccentric Shaft Speed (r/min) | Motor Power (kw) | Weight (t) |
PE-150*250 | 150*250 | 125 | 10-40 | 1-5 | 300 | 5.5 | 0.81 |
PE-250*400 | 250*400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 |
PE-400*600 | 400*600 | 340 | 40-100 | 15-60 | 275 | 30 | 6.5 |
PE-500*750 | 500*750 | 425 | 50-100 | 45-80 | 275 | 55 | 10.1 |
PE-600*900 | 600*900 | 500 | 65-160 | 50-120 | 250 | 55-75 | 15.5 |
PE-750*1060 | 750*1060 | 630 | 80-140 | 52-180 | 250 | 110 | 28 |
PE-800*1060 | 800*1060 | 640 | 100-200 | 136-230 | 250 | 110 | 29 |
PE-900*1200 | 900*1200 | 750 | 95-165 | 140-260 | 200 | 132 | 46.5 |
PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-342 | 200 | 132 | 47 |
PE-1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 180 | 200 | 83.5 |
PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 330 | 30-37 | 6.5 |
PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-60 | 330 | 37 | 7.7 |
PEX-300*1300 | 300*1300 | 250 | 20-90 | 16-104 | 300 | 55 | 11 |
PEX-350*750 | 350*750 | 300 | 15-80 | 30-52 | 300 | 30 | 6.8 |
If you have interest to our block machine ,please contact me freely
I will do my best to help you
Contact person :Mandy
Mobile phone:008615206805586
Skype:mandy_chengli87
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry.
Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation.
Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service.
We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
