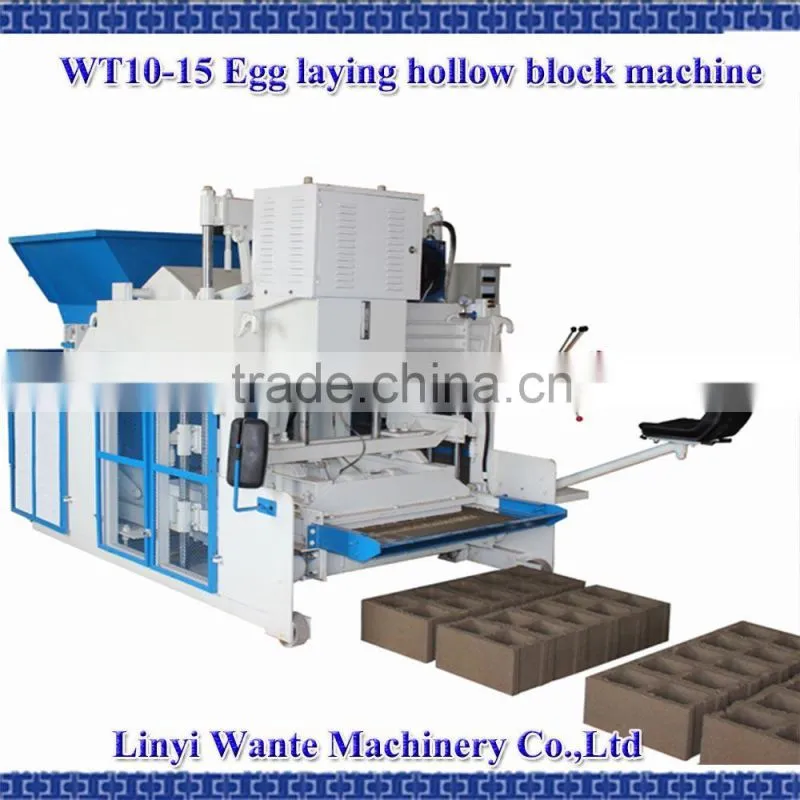

WANTE MACHINERY WT10-15 block making machine home
Introduction
WANTE MACHINERY WT10-15 block making machine home
1.WT10-15 has larger productivity than the other small block machines.This kind of brick machine is
manufactured on the base of technical modifications to the original block shaping machines,that is changing
the former one-time-vibration into twice-vibrations of molding core.So the block density becomes higher,
shaping speed quicker and block strength more even.This model of machine can be suitable to the
customers who have any kinds of existing cement working sites
2.Advanced techniques made the host machine designed reasonably,and achieved box vibration,hydraulic
stripping,omnidirectional automatically movement.WT10-15works faster because of automatically feeding
system.High quality of steel and precision welding made the machine a longer service life and hydraulic
system made less fault during work.
3.WT10-15has several function features,such as low price,reliable performance,easy operated,stable,
lower power consumption(just one sixth power consumption of the machine which has the same output).
Mass raw material can be used during production,for concrete,cement,small stone,powder,san,coal
gangue,slag,construction waste and so on.
Main technical parameter
WANTE MACHINERY WT10-15 block making machine home
WT10-15 Mobile concrete mixing and concrete brick making plant brief introduction main technical parameters | |
Overall dimension |
3150*1800*2400mm |
Demold method |
Hydraulic |
Turning method |
Hydraulic |
Hydraulic system pressure |
16-20Mpa |
Excitation frequency |
3200Hz |
Total power |
20.5KW |
Total mass |
4200KG |
Molding cycle |
10-15S |
Molding |
10 Pcs/mould(400*200*200/390*190*190 mm) |
Capacity |
2000-9000Pcs/hour |
Types of bricks can be made |
All kinds of moulds can be made by customers' drawings |
Moving method |
Automatically move and hydraulic steering |
Excitation way |
Three-dimensional box excitation |
Raw material |
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Production
WANTE MACHINERY WT10-15 block making machine home
Brick size (mm)/(inch) |
Pcs/mould |
Pcs/hour |
530x100x200mm (20x4x8 inch) |
12 |
1728-2160 |
530x150x200mm (20x6x8 inch) |
8 |
1152-1440 |
530x200x200mm (20x8x8 inch) |
6 |
864-1080 |
400x100x200mm (16x4x8 inch) |
18 |
2592-3240 |
400x125x200mm (16x5x8 inch) |
14 |
2532-3360 |
400x150x200mm (16x6x8 inch) |
12 |
1728-2160 |
400x200x200mm (16x8x8 inch) |
10 |
1440-1800 |

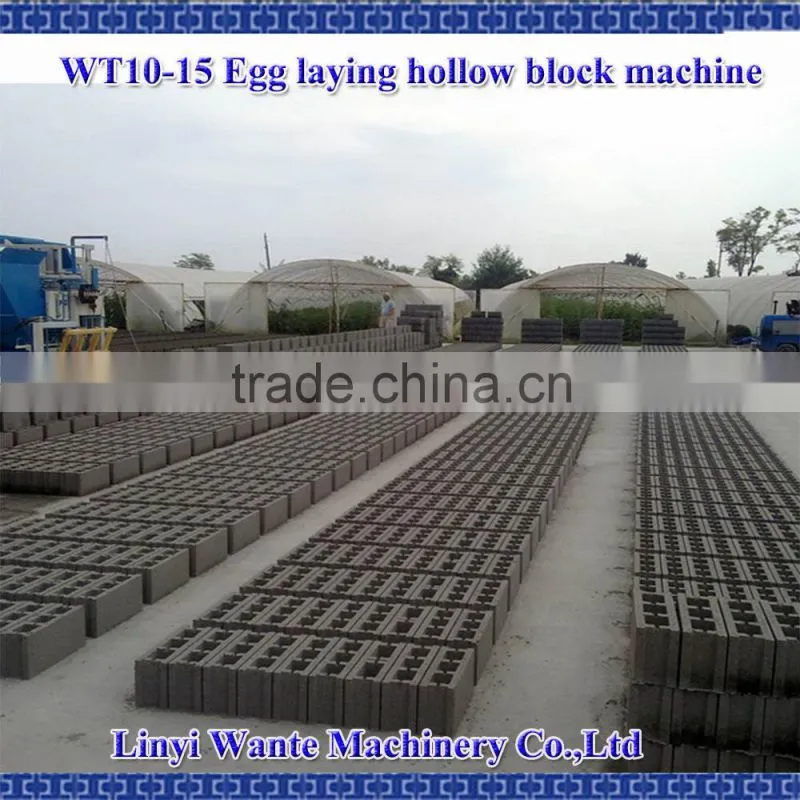

Block photos
WANTE MACHINERY WT10-15 block making machine home

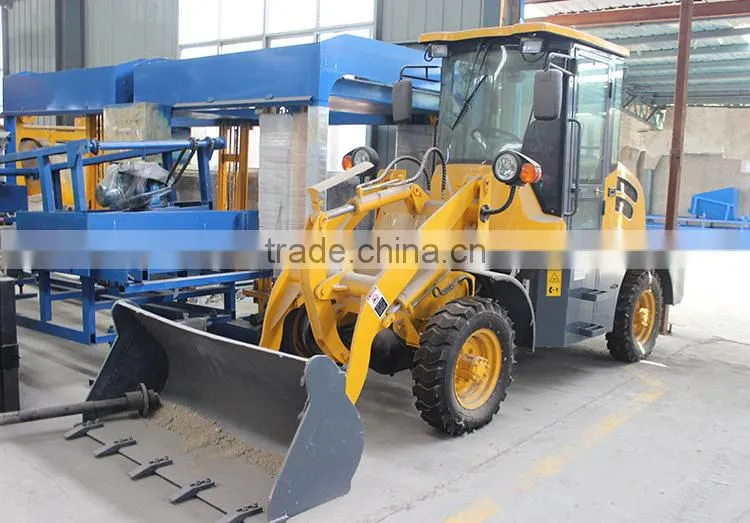

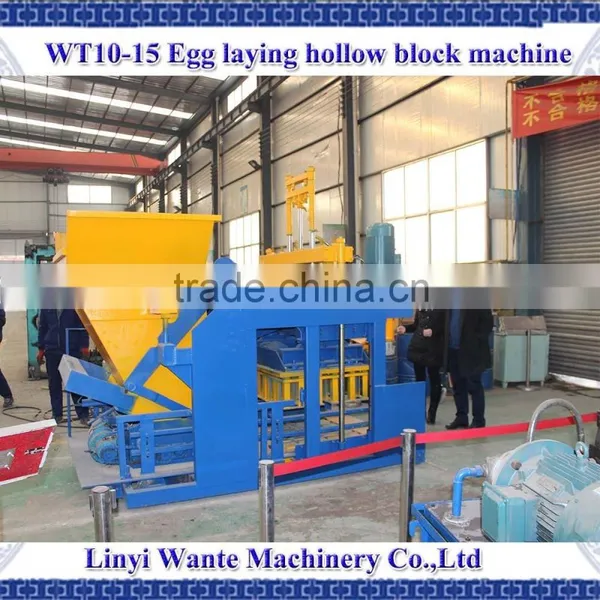

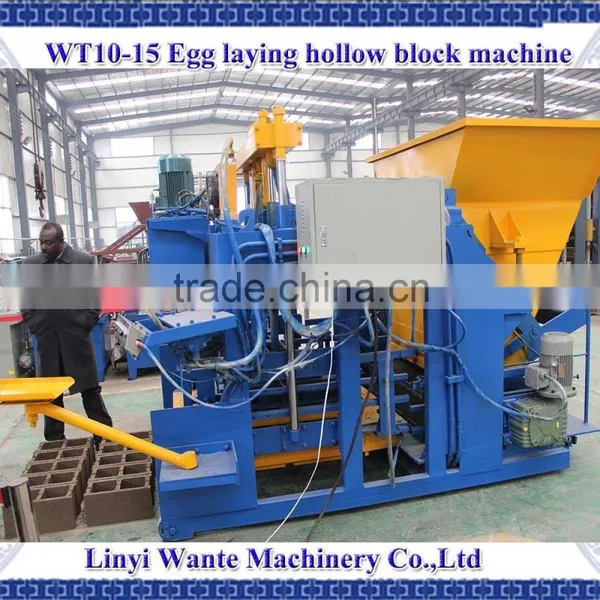

WT10-15 BLOCK MACHINE LINE PHOTOS
WANTE MACHINERY WT10-15 block making machine home

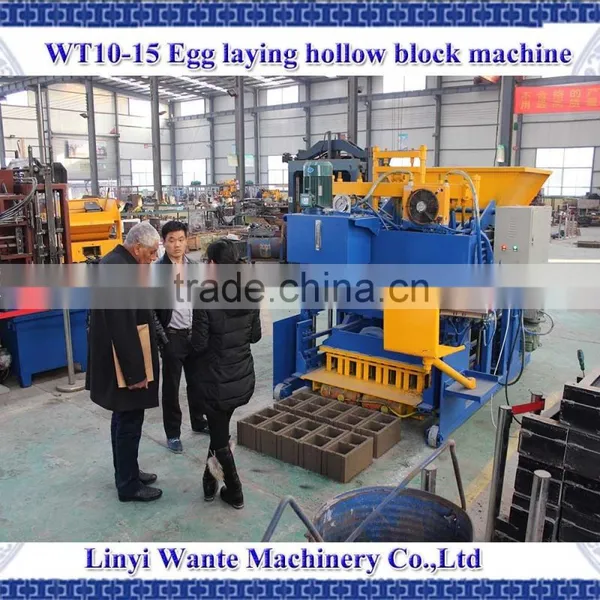

OUR CUSTOMERS FORM ALL OVER THE WORLD
WANTE MACHINERY WT10-15 block making machine home

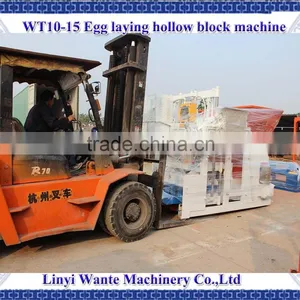

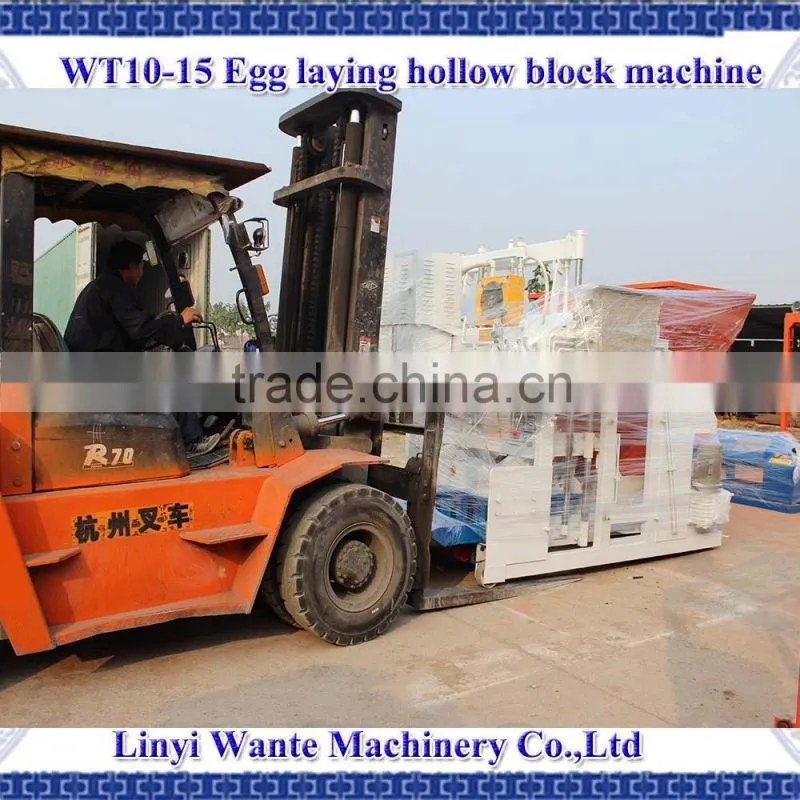

DELIVERY PHOTOS
WANTE MACHINERY WT10-15 block making machine home
Our factory |
|
Our Team |
|
|
