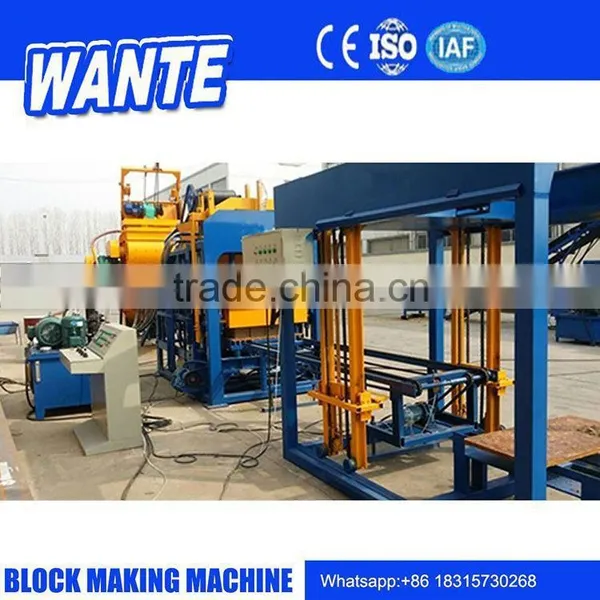

Help CenterQT4-15 High Quality Italy Automatic Concrete Block Making Machine Price Quality Choice
Related Products
-
QT4-15 Low Price Vibrated Block Making Machine FactoryUS$ 31,980 - 36,550MOQ: 1 Set -
QT4-15 Factory Direct Supplier Hollow Block Machine Price in IndiaUS$ 31,980 - 36,550MOQ: 1 Set
-
QT4-15 Cheap Wante Machinery Concrete Batch Plant for SaleUS$ 18,510 - 36,240MOQ: 1 Set
-
QT4-15 High Production Hollow Core Slab MachineUS$ 18,510 - 36,240MOQ: 1 Set
-
QT4-15 Big Capacity Hollow Core Slab MachineryUS$ 18,510 - 36,240MOQ: 1 Set
Main specification and technical parameters | |
Overall size |
3500x2100x2550mm |
Shaping cycle |
15-18 seconds |
Pallet size |
1010x550x25mm (bamboo) |
1010x550x25mm (plastic) | |
Vibration frequency |
Max.4500 R/Min |
Electricity |
380V/220V/ (adjustable) |
Vibration force |
55KN |
Total weight |
5000 KGS |

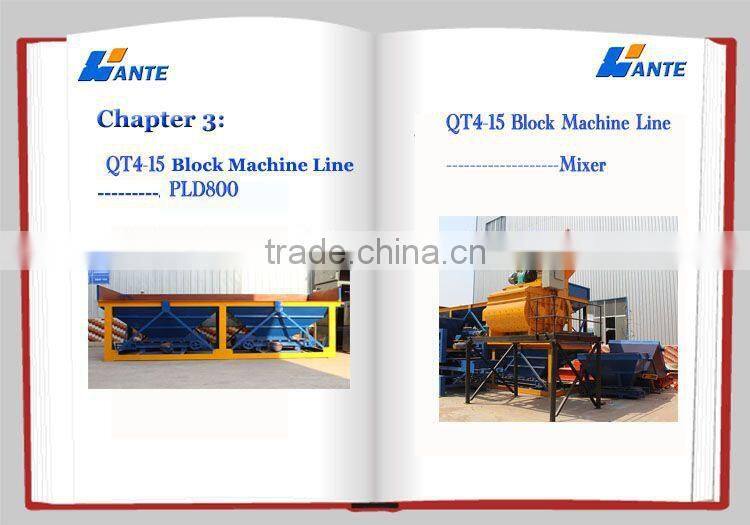

Model |
PLD800 |
Weigh bucket capacity (L) |
800 |
Productivity m3/h) |
48 |
Batching precision |
±1% |
Max weighing capacity (kg) |
3000 |
Number of material matching |
2 |
Work loading height (mm) |
3000 |
Feeding belt speed (m/s) |
1 |
Power (kw) |
12 |
Gross weight (kg) |
3000 |
Demission (mm) |
5800*2200*3500 |
Model |
JS500 |
|
Charging Capacity (L) |
800 |
|
Discharging Capacity (L) |
500 |
|
Production Capacity (m3/h) |
≥25 |
|
Max Aggregate Diameter mm |
≤40/60 |
|
Cycle Time (s) |
72 |
|
Stirring Vane |
Rev Speed (r/min) |
31 |
Quantity |
2×7 |
|
Stirring Motor |
Model |
|
Power (KW) |
18.5 |
|
Lifting Motor |
Model |
|
Power (KW) |
5.5 |
|
Pump Motor |
Model |
|
Power (KW) |
0.75 |
|
Dimensions ( mm) |
Travel State |
3030×2520×2880 |
Operation State |
5025×3100×5680 |
|
Total weight (Kg) |
3500 |
|

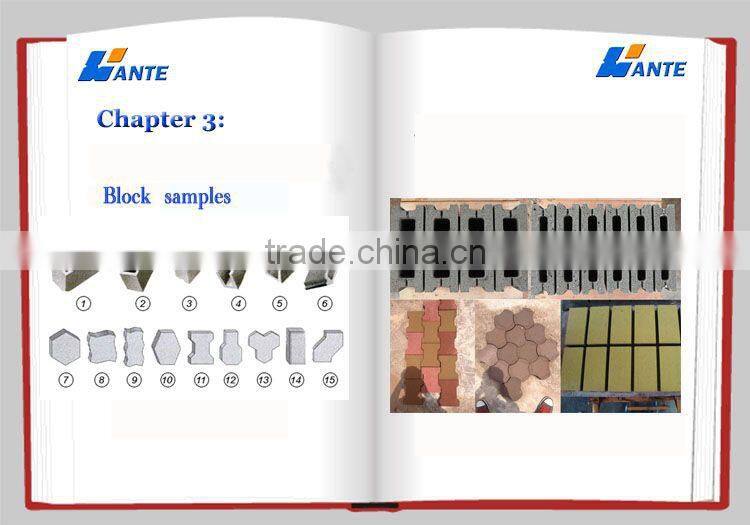

Block size |
Pcs/mould |
Pcs/hour |
Pcs/day |
400x200x200mm |
4 |
960 |
7680 |
400x150x200mm |
5 |
1200 |
9600 |
400x100x200mm |
6 |
1440 |
11520 |
