Home > Products > Clay Interlocking block machine > WT2-10 thailand soil interlocking brick machine/compressed earth blocks

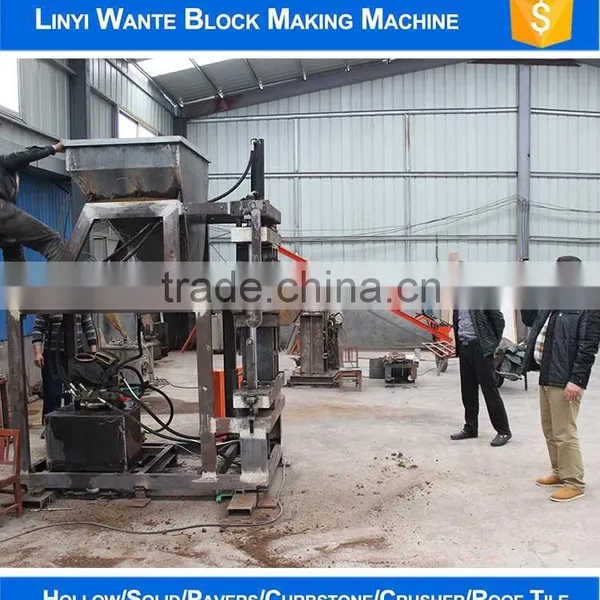

WT2-10 thailand soil interlocking brick machine/compressed earth blocks
- 20 Set / Sets per Month
- qingdao
- T/T Credit Card
- WT2-10 Hydraulic pressed clay interlock brick machine
- WT2-10 high pressure mud interlocking block machines
- WT2-10 soil cement clay mixed brick making machine price
- WT2-10 pakistan clay bricks machine
- WT2-10 clay interlocking brick machine price for sale
- WT2-10 small clay red brick making machine without burning
Product Details
Condition: | New | Type: | Interlock Block Making Machine | Brick Raw Material: | Clay |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 4000-6000 Pieces/day | Place of Origin: | Shandong, China | Brand Name: | WANTE |
Model Number: | WT2-10 | Voltage: | 220V/380V(adjustable) | Power: | 7.5kw |
Dimension(L*W*H): | 1000*1200*2400mm | Certification: | ISO,CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
nude package
Product Description
WT2-10 thailand soil interlocking brick machine/compressed earth blocks
WT2-10 clay brick making machine introduction |
1.High capacity:improved from WT1-10,can produce 2 blocks/mould.
2.Automatic interlocking brick production line
3.Hydraulic press
4.Can produce different kinds of interlocking bricks
WT2-10 specification |
| WT2-10 hydraulic interlocking block machine | |
Overall size | 2500(L)×900(W)×2300(H)mm | |
Shaping cycle | 6-8 seconds | |
Power | 7.5 KW | |
15 Hp diesel engine | ||
Pressure | 16Mpa | |
Total weight | 1300 KGS | |
| Conveyor belt | |
Belt width (M) | 6(4.5/3) | |
Belt length (M)/KW | 6/2.2 | |
Belt speed (M/S) | 2 | |
JD350 mixer | ||
Overall size | 1200(L)×1200(W)×1300(H)mm | |
Shaping cycle | 5 mins | |
Volume | 350L (25Kgs Cement) | |
Electricity | 380V/220V/ (adjustable) | |
Total weight | 330KG |
Soil crusher | ||
Overall size mm | 1100(L)x1100(W)x1400(H)mm | |
Motor | 5.5kw | |
Electricity | 220v | |
380v | ||
Capacity | 500KGS/H | |
Total weight | 200 KGS | |
Soil screen | ||
Power | 3KW | |
Capacity
| 480KGS/h | |
Total weight | 300KGS | |
|
Moulds design
Bricks test
Delivery site
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry.
Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation.
Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service.
We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
