WT10-15 The newest design mobile mansory equipment
Introduction of WT10-15 The newest design mobile mansory equipment
1.WT10-15 has larger productivity than the other small block machines.
This kind of brick machine is
manufactured on the base of technical modifications to the original block shaping machines,
that is changing the former one-time-vibration into twice-vibrations of molding core.
So the block density becomes higher,shaping speed quicker and block strength more even.
This model of machine can be suitable to the customers who have any kinds of existing cement working sites
2.Advanced techniques made the host machine designed reasonably,and achieved box vibration,hydraulic stripping,omnidirectional automatically movement.QMY10-15 works faster because of automatically feeding system.
High quality of steel and precision welding made the machine a longer service life and hydraulic
system made less fault during work.
3.WT10-15 has several function features,such as low price,reliable performance,easy operated,stable,
lower power consumption(just one sixth power consumption of the machine which has the same output).
Mass raw material can be used during production,for concrete,cement,small stone,powder,san,coal
gangue,slag,construction waste and so on.

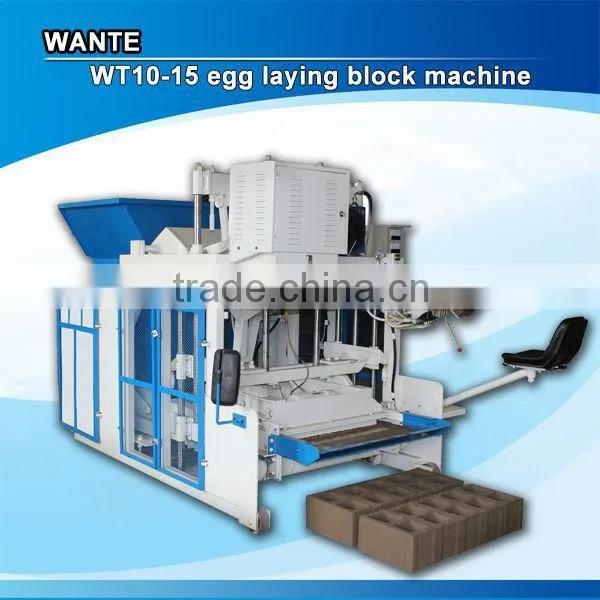

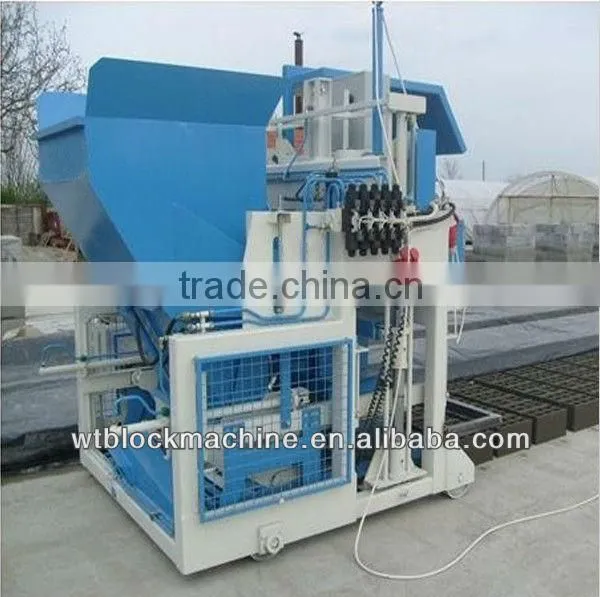

Picture of WT10-15 The newest design mobile mansory equipment
Main technical parameter of WT10-15 The newest design mobile mansory equipment
QMY10-15 Mobile concrete mixing and concrete brick making plant brief introduction main technical parameters | |
Overall dimension |
3150*1800*2400mm |
Demold method |
Hydraulic |
Turning method |
Hydraulic |
Hydraulic system pressure |
16-20Mpa |
Excitation frequency |
3200Hz |
Total power |
16KW |
Total mass |
4200KG |
Molding cycle |
10-15S |
Molding |
10 Pcs/mould(400*200*200/390*190*190 mm) |
Capacity |
2000-9000Pcs/hour |
Types of bricks can be made |
390*240*190/390*190*190/390*115*190 All kinds of moulds can be made by customers' drawings |
Moving method |
Automatically move and hydraulic steering |
Excitation way |
Three-dimensional box excitation |
Raw material |
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Productivity of WT10-15 The newest design mobile mansory equipment
