QT10-15 Interlocking Bricks Wall Machines Information
automatic cement block machine QT10-15could produce many kinds of hollow block, solid brick, porous block, paver block and so on, just change the different moulds, it is economic investment for clients.
1. QT10-15 Interlocking Bricks Wall Machines main advantages
(1) Full automatic and hydraulic automatic block making machine , can produce all kinds of bricks, and just change the moulds, such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure
2. QT10-15 Interlocking Bricks Wall Machines Main technical parameters
Dimension of host machine |
3500×2220×2850mm |
Host machine power |
45.38KW |
Moulding area |
1025×810mm |
Vibration force |
100KN |
Moulding period |
15-25S |
Mixer model |
JS750 |
Pallet size |
1350×900×30mm |
General water Consumption |
12T/every day |
Weight of the host machine |
14T |
Voltage |
Clients local Industrial voltage |
1)The workshop area: 200m2
2)The office, curing area and stacking area to arrange according your fact status.
3)Worker requirement: From loading material to transport finished block we need about 5-6 person to operate the whole line.
3. QT10-15 Interlocking Bricks Wall Machines production
Size(LxWxH) |
Pcs/Mould |
Pcs/ Hr |
Pcs/8hours |
400X200X200 |
10 |
1500-1800 |
12000-15000 |
400X100X200 |
20 |
3000-3600 |
24000-30000 |
225X112.5X60 |
27 |
4050-4500 |
32400-36000 |
250X60 |
14 |
2100-2400 |
16800-20000 |
200X100X60 |
35 |
5250 |
42000 |
200X165X60 |
20 |
3000 |
24000 |
250x250x60 |
8 |
1200-1650 |
9600--13200 |
4. Raw Materials, Sources and Availability.
1) Fly-Ash:
this Raw material is freely available in Thermal Power plants. There are no taxes on this item
whatsoever. Transportation charges are only to be attended by the entrepreneur.
However, the proposed Unit will get Fly Ash from locally available Thrmal
Powerplants, which is having best quality fly ash not only in the country, but also in the
whole world
2)Lime/OPC:
Lime used in this process is known as Hydrated Lime, which can be obtained
by Calcining Brunt Lime. One KG of Brunt Lime gives 2.2 Kgs of Hydrated Lime after
Calcining. Brunt Lime can be obtained from Kuddur, Andhra Predesh where Lime Kilns and
High Quality Brunt Lime are pettily available. Alternativily Hydrated lime is available as an
industrial by-product of Paper Mills
This Project however aims to utilize OPC cement as a substitute for Lime. It
will give faster strength to the bricks, besides giving improved consistent quality. It also
ensures a better cost effectiveness for the same. Using OPC will be a standardized practice
compared to Lime, as, unlike OPC, Lime quality changes widely across suppliers and across
seasons. The other prime advantages of using OPC (compared to Lime) is it’s easy
availability locally through nationwide Retail Network of Cement Companies.
3)Gypsm:
This too is an industrial waste. This is available at Fertilizer Plant as in
industrial wastes
4)Sand / Crusher Dust.
Sand is used as an economizer and to increase the strength of bricks to some
extant. Sand is procured locally. Crusher dust can also be successfully used in place of sand.

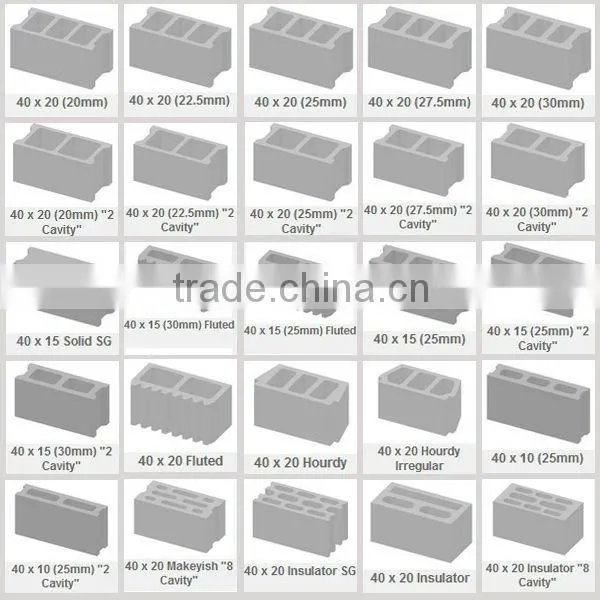

5. QT10-15 Interlocking Bricks Wall Machines block sample
can produce all kinds of hollow block,paver block only by changing
mould very easy.
6. QT10-15 hydraulic pressing concrete hollow block machine Mold procedure

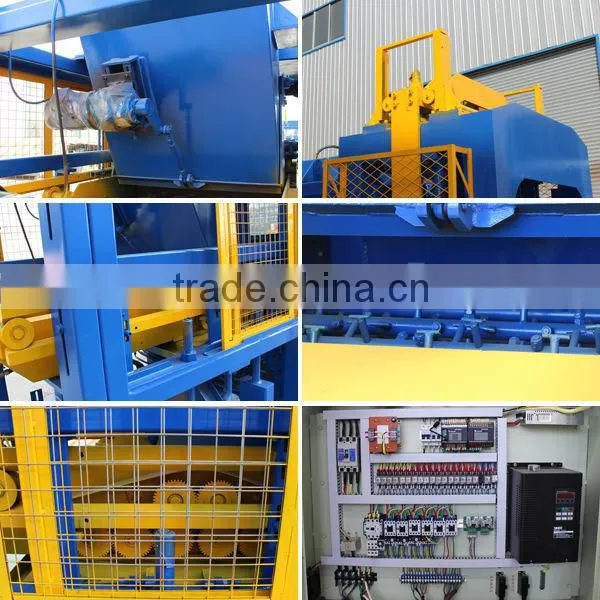

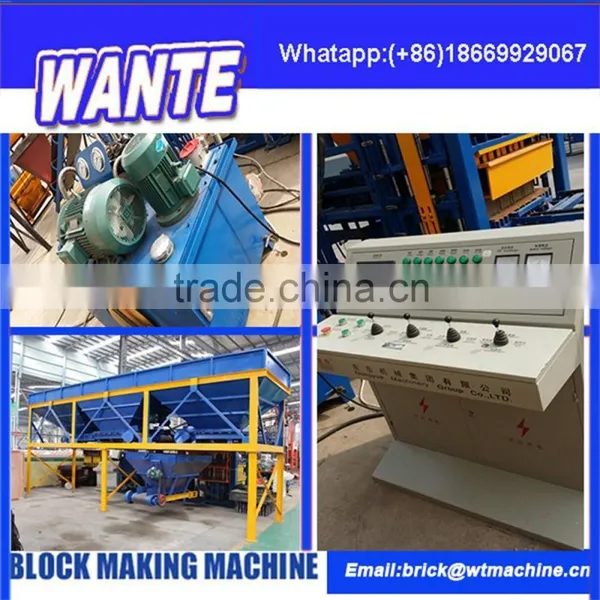

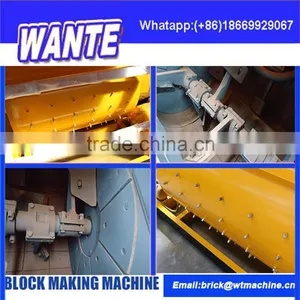

Detail photo for QT10-15 hydraulic pressing concrete hollow block machine
Certification

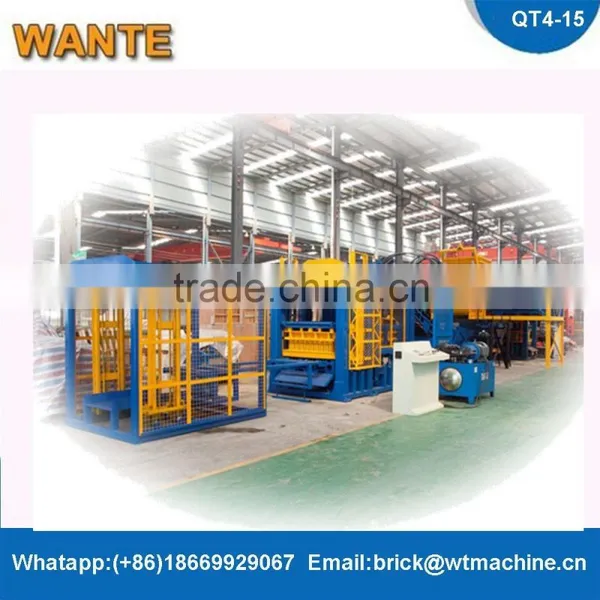

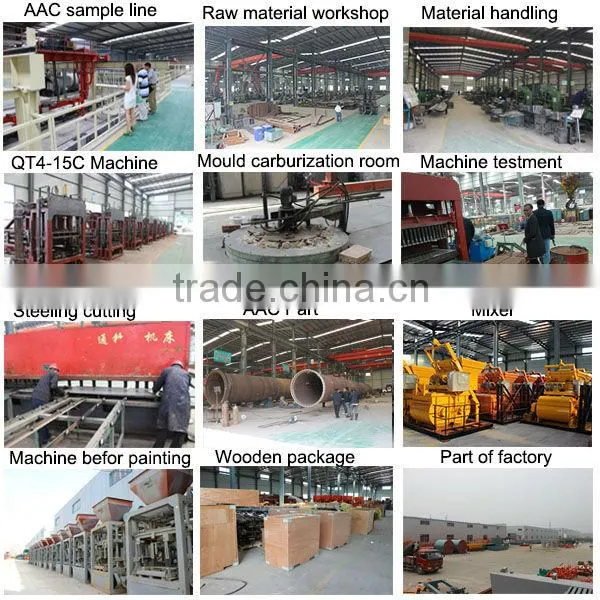

Welcome to our factory
Thanks for your attention, waiting to talk more details with you.
