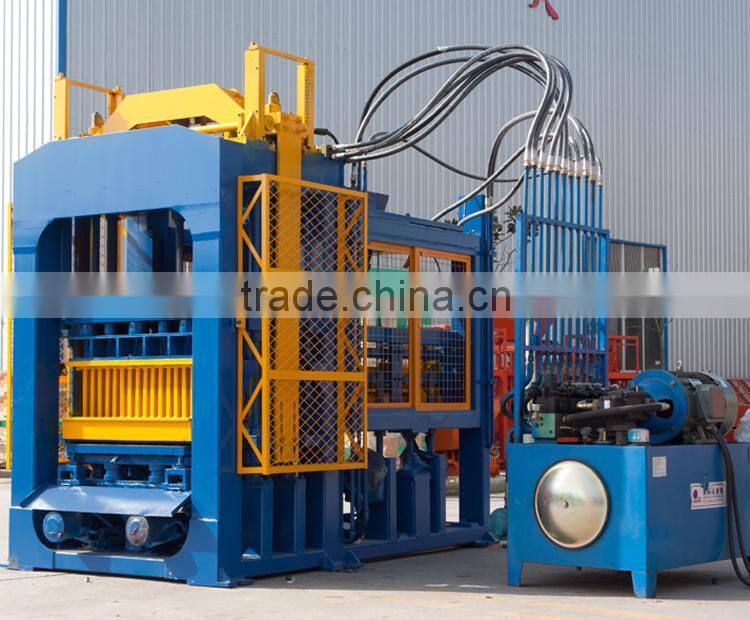

QT6-15 brick making machine price, brick making machine price list, automatic brick making machine

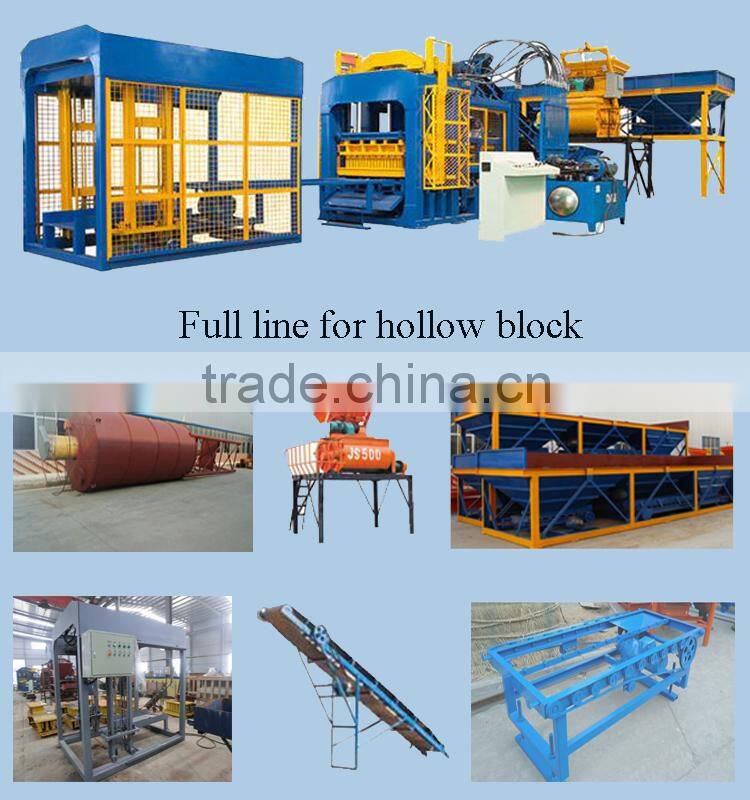

Full line for hollow block:
1. cement silo (extra).(build in local place or buy from us)
2. PLD1200 batching machine
3. JS500 mixer
4. QT6-15B block machine
5. colorful materials system
6. block sweeper
7. stacker machine
Paver making need parts
1.colorful material system
2.colorful material mixer
nveyor belt
Product Overviews
| 1 | 2 | 3 |
| 4 | 5 | 6 |
1-Cement silo | |
Length |
11M |
capacity |
50T |
Diameter |
2.15M |
Total weight |
5T |

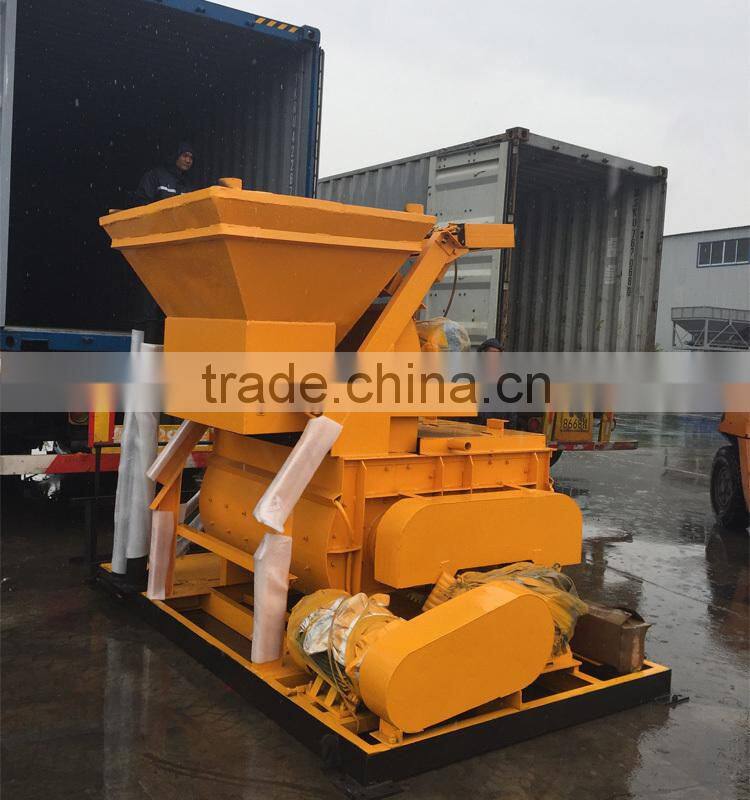

2-JS500 mixer | ||
Charging Capacity (L) |
800 |
|
Discharging Capacity (L) |
500 |
|
Production Capacity (m3/h) |
≥25 |
|
Max Aggregate Diameter mm |
≤40/60 |
|
Cycle Time (s) |
72 |
|
Stirring Vane |
Rev Speed (r/min) |
31 |
|
Quantity |
2×7 |
Stirring Motor |
Model |
|
|
Power (KW) |
18.5 |
Lifting Motor |
Model |
|
|
Power (KW) |
5.5 |
Pump Motor |
Model |
|
|
Power (KW) |
0.75 |
Dimensions ( mm) |
Travel State |
3030×2520×2880 |
|
Operation State |
5025×3100×5680 |
Total weight (Kg) |
3500 |
|

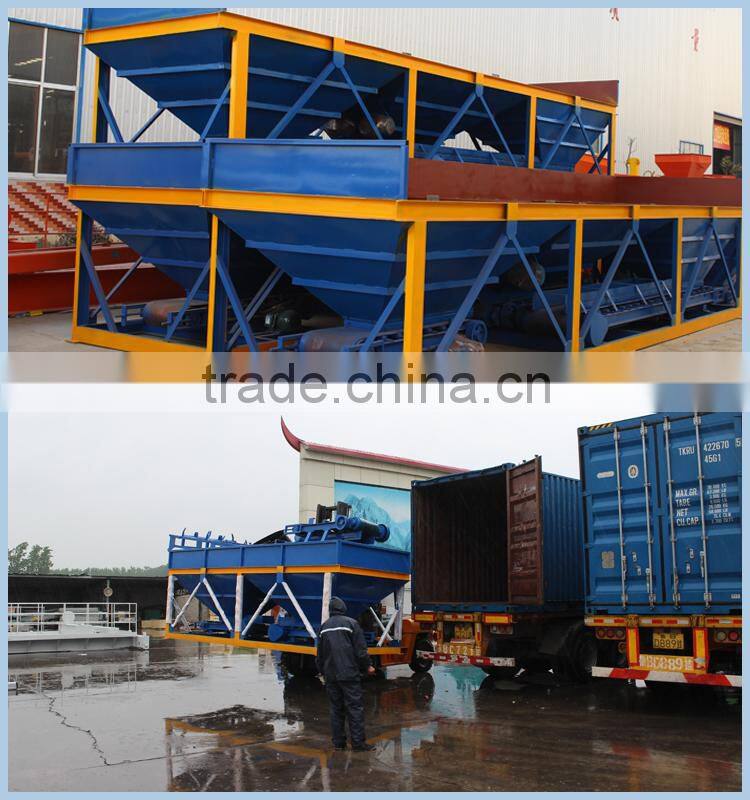

3-PLD1200 Batching machine | |
Weigh bucket capacity (L) |
1200 |
Productivity (m3/h) |
56 |
Batching precision |
±1% |
Max weighing capacity (kg) |
3000 |
Number of material matching |
3 |
Work loading height (mm) |
3000 |
Feeding belt speed (m/s) |
1 |
Power (kw) |
12 |
Gross weight (kg) |
4000 |
Dimension (mm) |
9000*2200*3500 |
4-Stacker machine | |
Overall size |
2100(L)×1800(W)×2300(H)mm |
Power (KW) |
3KW |
Electricity |
380V/220V/ (adjustable) |
Stacker layer |
3 floor |
Speed |
0.5M/S |
Total weight |
2000KGS |
5-Conveyor belt | |
Belt width (M) |
6 |
Belt length (M)/KW |
6/2.2 |
Belt speed (M/S) |
2 |
6-Block sweeper | |
Overall size |
2100(L)×1200(W)×600(H)mm |
KW |
0.75 |
Electricity |
380V/220V/ (adjustable) |
Total weight |
230KGS |
