factory direct sale hollow block machine price in india
Brief introduction
QT4-25 full automatic machine is our newest design, it absord both advantages from machine
QT4-24 and QT4-15, so as a full automatic machine, the price is not high. And its operation stable,
good quality of bricks, simple manipulation by PLC, all these make QT4-25 become one of our
best seller. It can not only produce hollow blocks, paver blocks but also curbstone, solid blocks and so on.
Advantages
Full automatic type
Good capacity, about 4600pcs/8 hours(Standard size)
PLC of Mitstibishi, Motor of Simens and Sensor of Omron, their using life is much longer
Water cooling system, more safe
Material feeding,pressing, and pallet feedeing are all controlled by hydraulic pressure
Many kinds of blocks it can produce, such as hollows, pavers, curbstone and so on.
Different parts of QT4-25 concrete hollow paver block machine line

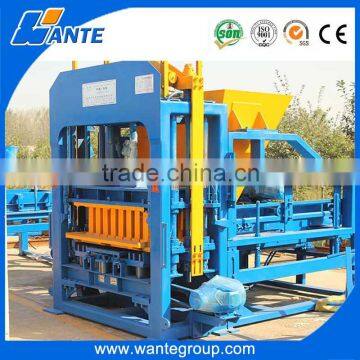

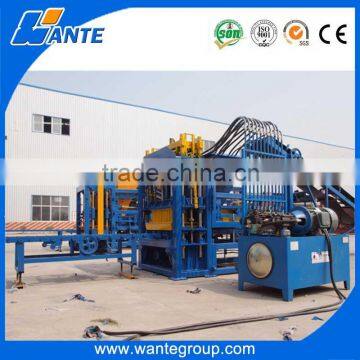

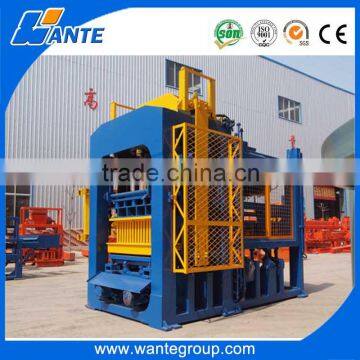

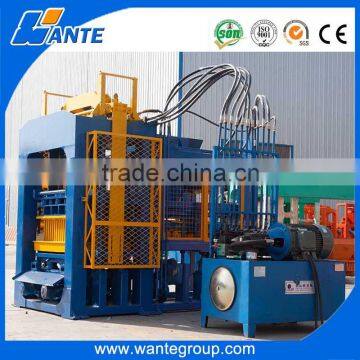

1>QT4-25 host machine
2>JD500 mixer
3>Conveyor belt
4>Stacker machine
5>PLD800 batching machine
6>PLC controller
(1) host machine of QT4-25 concrete hollow paver block machine | |
QT4-25 block machine parameters | |
Overall size |
3600(L)×1650(W)×2100(H)mm |
Shaping cycle |
20 seconds |
Pallet size |
850×450×25mm (bamboo) |
|
850×450×25mm (Plastic) |
Vibration frequency |
Max.4000 R/Min |
Upper vibrator |
4KW |
Nether vibrator |
4kw |
Electricity |
380V/220V/ (adjustable) |
Total weight |
3200 KGS |
JD500 mixer | |
Overall size |
1500x1500x1400mm |
Shaping cycle |
5 mins |
Volume |
500L (50Kgs Cement) |
Electricity |
380V/220V/ (adjustable) |
Total weight |
600KGS |
Conveyor belt | |
Belt width (M) |
6 |
Belt length (M)/KW |
6/2.2 |
Belt speed (M/S) |
2 |
Stacker machine | |
Overall size |
2100(L)×1800(W)×2300(H)mm |
Power (KW) |
3KW |
Electricity |
380V/220V/ (adjustable) |
Stacker layer |
3 floor |
Speed |
0.5M/S |
Total weight |
2000KGS |
| Size(L*W*H) mm | Pcs/mold | Pcs/Hr | Pcs/8Hrs |
| 400*100*200 | 8 | 1152 | 9216 |
| 400*150*200 | 5 | 720 | 5760 |
| 400*200*200 | 4 | 576 | 4608 |
| 400*250*200 | 4 | 576 | 4608 |
| 230*110*70 | 20 | 2880 | 23040 |
