Specifications
KB-125C New Style low cost Concrete Roof Tile Making Machine3500 - 4000pcs daily capability
both roof tiles & floor tiles
KB-125C New Style low cost Concrete Roof Tile Making Machine
| moulding presure | 125T |
| moulding speed | 7-8pcs/min,more than 3000pcs/shift |
| main frame power | 5.5 KW |
| main frame weight | about 5T |
| external dimension | 2700*1600*2480mm |
2. details support equipments for KB-125C New Style low cost Concrete Roof Tile Making Machine :
3. production line procedure for KB-125C New Style low cost Concrete Roof Tile Making Machine
1. Moulding
Water will be got rid of during production, the pressure should be over 100tons((The pressure gauge indicates over 13MPa) and the pressing time should not be less than 3 seconds.
Change the filter net on lower mould in time, usually 2~3 times each shift. If water polluted and muddy, then filter net should be changed, otherwise tile’s quality will be affected.
2. Curing
Generally, wet tiles should be naturally cured 24 hours on the pallets, and humidity and temperature should be controlled at the same time. Take away pallets when tile surface solid, water tiles everyday in the first week, and water amount subject to humidity. It’s better to put tile in vertical way and 28- day curing time is needed before on sale
3. Color Painting
Color is painted after tile completely dried and dusted (water moisture content not over 2%). First painting for bottom layer with temperature range 50°C~60°C, after dried then paint the surface layer.

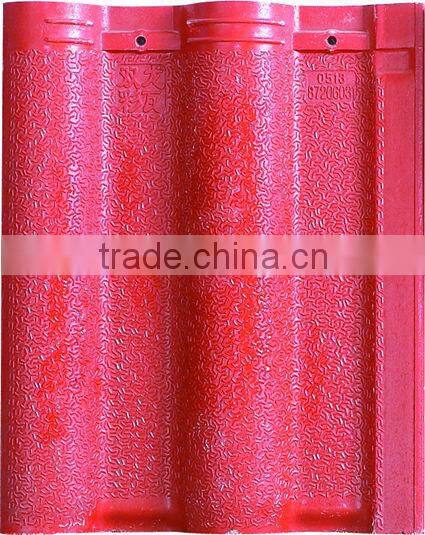

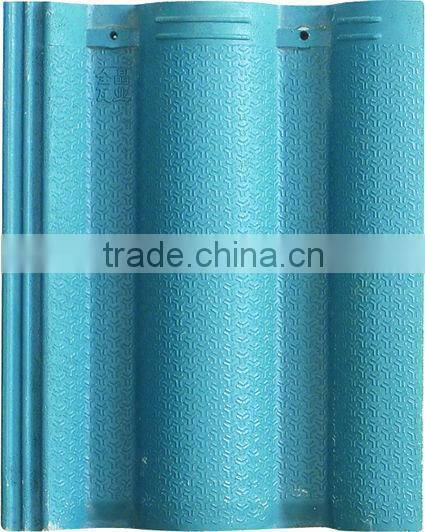

roof tiles sample
roof tile modules for KB-125C New Style low cost Concrete Roof Tile Making Machine
functional products samples
for details information, pls feel free to contact with me of following information:
