Specifications
KB-125C cement material automatic roof tile plantraw material: cement + sand
3500-4000pcs tiles per 8 hours
KB-125C cement material automatic roof tile plant
KB-125C cement material automatic roof tile plant
Material: cement + sand
1)Its with the merits of fast molding speed, large output, reliable performance, PLC automatic control and convenient operation. Its hydropneumatic, with the speed as high as 7-8 pieces/min. 3000-3500pcs/shift=8hours/day.In addition, the rate of finished products is high, and the quality-price-relative is better.
2)The cement-tiles made of the mortar concrete with press-filtering molding are with the perfect structure. In addition, there are many kinds available, with high density, strong intensity, and nice dimensions, which are the excellent on the concrete products, meeting the different construction requirements
3)The machine is with multi - functional. By changing molds, it could be used to produce master tile, ridge tile, edge tile, drain-tile, etc. In addition, it could also be used to product various top-grade colorful ground tile, including terrazzo tile, bathing tile, etc.
4)Our KB-125C also can produce Terrazzo tiles size no more than 400*400mm. Very profitable for customers.
specification of KB-125C cement material automatic roof tile plant
| moulding presure | 125T |
| moulding speed | 7-8pcs/min,more than 3000pcs/shift |
| main frame power | 5.5 KW |
| main frame weight | about 5T |
| external dimension | 2700*1600*2480mm |
support equipment of KB-125C cement roof tile plant
| 1 | Moulding machine | 1 set |
| 2 | constant feeder machine | 1 set |
| 3 | blender | 1 set |
| 4 | elevator machine | 1 set |
| 5 | air compressor | 1 set |
| 6 | color painter | 1 set |
whole production line picture:

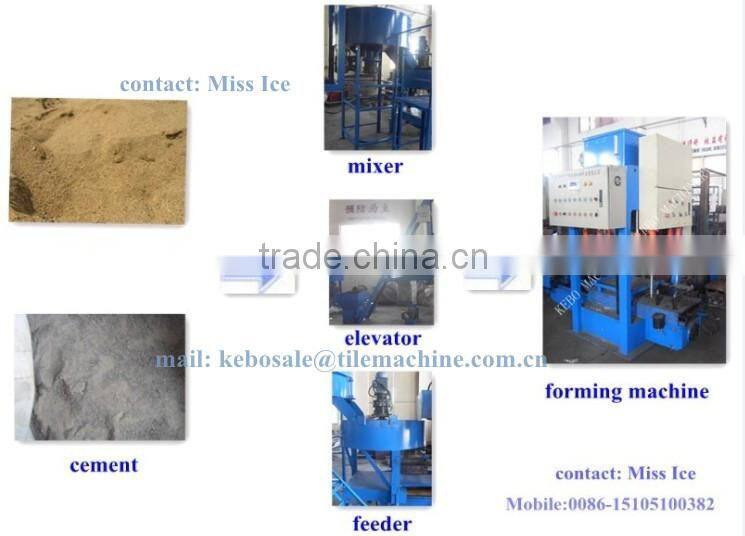

production procedure of KB-125C cement material automatic roof tile plant
Raw material→ 2.Bucket type elevator →3. Wheel type mixer→ 4. Quantitative constant feeding machine→ 5. Roof tile making machine→6. Roof tile pallet→7. Roof tile curing rack→8.24 hours curing →9.paintng corlor →8.Sell out

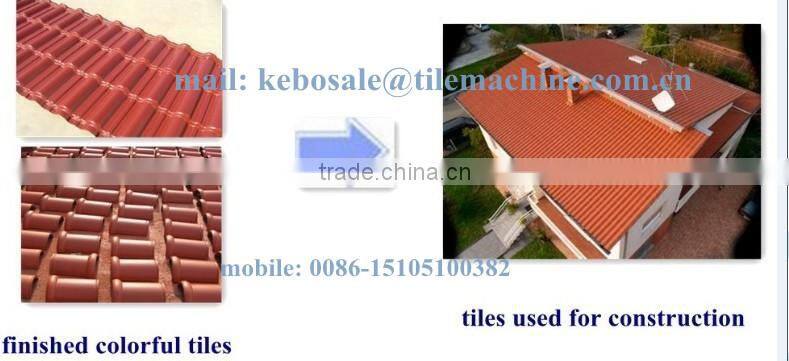

concrete roof tiles sample of KB-125C cement material automatic roof tile plant
roof tile module of KB-125C cement material automatic roof tile plant
Functional products samples of KB-125C cement material automatic roof tile plant
machine sample and delievery:
pls kindly feel free to contact with me of following information:
