Specifications
KBJX marble liner polishing machine 9 headsliner polishing machine
can polish granite, marble and terrazzo tile
67.5 kw
KBJX marble liner polishing machine 9 heads
terrazzo tile polishing machine
concrete floor tile polishing machine
liner tile polishing machine
concrete tile grinding machine
floor tile grinding machine
KBJX marble liner polishing machine 9 heads
-- capability 200-300m2 per 8 hours
-- includes 9-18 polishing heads
-- can polish granite, marble and terrazzo tiles
-- biggest width 900-1200mm
-- much smoother than rotating polishing machine
the machine sample picture:
polishing heads
multi-polishing of granite tiles:

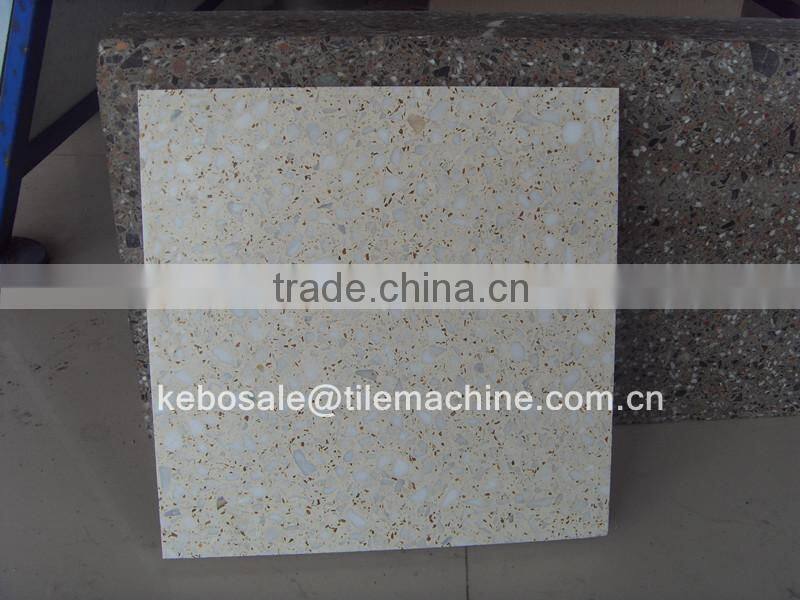

multi-polishing of terrazzo tiles:
character for KBJX marble liner polishing machine 9 heads
series continue resin abrasive polishing machine with 9-12-16-18 heads, This machine is mainly for slab polishing. The structure is reasonable, steady performance, high work efficiency. With the import PLC controlling system, text display is controlled intelligence.
1. Out airbag, long life using, lower hazard rate, lower maintenance cost, etc advantage.
2. With the best quality belt with famous brand, thickness accord, promise the thickness of the slab.
3. Belt move and bridge move is controlled with the automatic controlling system
4. With lower power (7.5kw single head), lower cost, cost is only 0.6USD per square meter, Capacity is 38 square meter per hour. The brightness for G3786 can catch up 85 degree.
5.The control system of this machine adopts PLC terminal control with LCD touch screen terminal for parameter setting and fault prompts during operation,etc.It is applicable to continuous grounding and polishing granite tile.Operating speeds of plate conveying and crossbeam of polishing disc are controlled by frequency converter;working pleasure and the polishing width of tile are adjustable within the setting values.This machine can also automatically identify the shape of tile,so that each polishing disc(polishing head)could automatically lift and lower according to the identified shape of tile,and conduct tracking records for tile polishing at the same time.The overall machine is produced according the standard requirements with performance up to the leading domestic level
All the electrical parts adopt famous brand, the PLC is Siemens and other electrical parts mainly are Schneider, so these can ensure the machine’s stability and long-term working.
finished products of KBJX marble liner polishing machine 9 heads
factory
for details information, pls feel free to contact following information, if you have time, welcome to visit our factory
