KB-125E/400 terrazzo floor tile making machine with Mitsubishi PLC

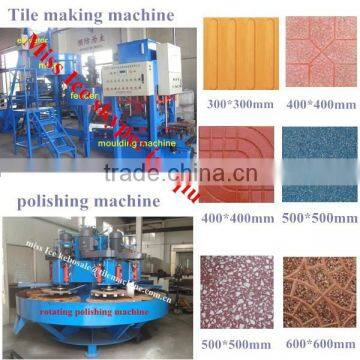

photo of KB-125E/400 terrazzo floor tile making machine with Mitsubishi PLC
1. hydraulic pressure 125T
2. full automatic, including mixer, feeder and tile machine
3. 3-4 operators needed
4. all floor tiles are available, size 300*300mm, 400*400mm, 500*250mm
1.Sample introduction of KB-125E/400 terrazzo floor tile making machine with Mitsubishi PLC
KB-125E/400 terrazzo floor tile making machine with Mitsubishi PLC is the kind of equipment adopting advanced technical.Through processing specially of low invest cement,stone powder and so on,then and the color tile equipment (hydraulic press) produce different kinds of color tiles. according to the production and the nature of the work. At the present time,the hydraulic pressure tile machine is the most advanced, most efficient full automatic numerical control tile making machine.It is easy to operation and maintain and suitable for all kinds of entrepreneur.
2.Process production of molded KB-125E/400 terrazzo floor tile making machine with Mitsubishi PLC
Let the raw material cement,crushed stone and stone powder match according to a certain proportion.At the beginning the bucket elevator send the raw materials to the mixer,then the mixing materials can be put into the constant feeder,the constant feeder continuous uniform feed,the material be conveyed to the main machine terrazzo tile machine,that is,molded terrazzo tile machine.the tile can be produced by hydraulic cylinder and mold force.After drying by sun and maintain,then you can polish tiles.
3.The Consist of KB-125E/400 terrazzo floor tile making machine with Mitsubishi PLC
1.Molding Tile Forming Machine
2.Wheel Agitator
3.Automatic Weighing and Feeding Machine
4.Bucket Elevator
5. Polishing Machine
4.Process Flow of KB-125E/400 terrazzo floor tile making machine with Mitsubishi PLC
1.Preparing the raw material
Cement 1.5 Crushed stone 5.0-10.0 Stone Power 0-5
2. Bucket Elevator
3.Wheel Agitator
4.Automatic Weighing and Feeding Machine
5.Curing Pallet
6.Hand Fork Lifter
7.Coating Line
8.Finished Goods
is auotmatically controlled and easy to operate, so it just needs 3-4 individuals to do the job.
Roof tile Work flow: Elevating--- Mixing --- Fixed-quantity filling --- Pressure forming --- Mould unloading --- Forming tiles --- Onto the tiles shelf --- --- Stacking --- Curing (24 hours)
--- Polishing --- Finished products.
5.Feature of KB-125E/400 terrazzo floor tile making machine with Mitsubishi PLC
1.The machine adopts Mitsubishi PLC programmable controller featuring fast molding speed,large output,automatic control,man-machine interface,reliable performance and convenient operation,It has 5-6 pieces/Min,whole hydro-pneumatic production speed,high rate of finished products and high cost performance.
2.As a competitive concrete products making equipment,its products adopts mortar concrete filter pressing molding and features perfect structure.Various style,high density,high intensity and accurate size,which can meet the needs of different constructions.
3.It is multifunctional machine,it can be used to produce various styles of terrazzo floor tiles. Stripe tiles and roof tiles can be made after changing the molds as well as different styles of high grade concrete ground tiles,such as terrazzo tiles,polishing and roto-blasting ground tiles and washing ground tiles.
4.Its remote diagnosis system,which can be used to control and diagnosis the equipment remotely through the phone line,greatly reduces the requirement for customers and makes the machine more humanization.
5. KB-125E/400 terrazzo floor tile making machine with Mitsubishi PLC , having a high quality but low price,occupies the market share by its perfect products.
6.Stuffer pot adopts unique feeding head design, which ensures the complete matching of large quantity of filler incorporation and uniformity of threading, with high production of the complete machine.

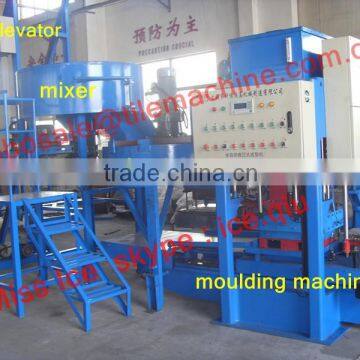

Details parts photoes for KB-125E/400 terrazzo floor tile making machine with Mitsubishi PLC
elevator machine
material mixer
constant feeder machine
moulding machine

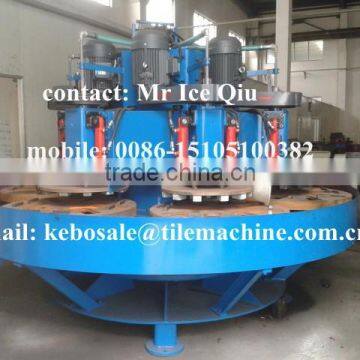

polishing machine

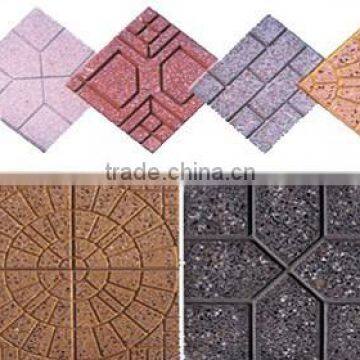

terrazzo tiles samples for KB-125E/400 terrazzo floor tile making machine with Mitsubishi PLC as below:
functional products for KB-125E/400 terrazzo floor tile making machine with Mitsubishi PLC as below:
Packageing & shipping for KB-125E/400 terrazzo floor tile making machine with Mitsubishi PLC
-- one 40' container to hold the production line
-- plastic bubble bag outside to protect machine
Our services
-- we will send engineers to customer side to install machine and train workers
FAQ:
1. How about the Delivery time?
Lead time since receipt of 30% T/T deposit payment: 45 days. Samples will be prepared within 7 Days.
2. What kind of payments does jenor support?
T/T, L/C, Western Union, PayPal & Cash are accepted.
3. Can you produce according to customers' design?
Sauce, we are professional manufacturer; OEM and ODM are both welcome.
4. What guarantee time?
usually one year. within one year, if any problem, we will repair for you free of charge.
for details information, pls feel free to contact with me of following information, if you have time, welcome your visit our workshop
