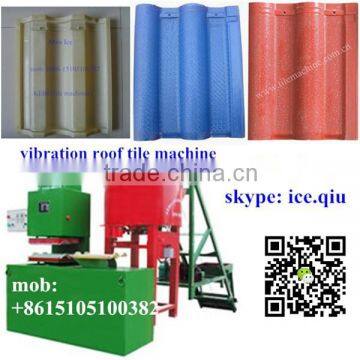

KB-2400B plastic mold manual roof tile making machine
-- roof tile material: cement + sand
-- capacity: more than 2000pcs per shift
-- manual , including mixer, elevator, feeder and vibration machine
-- use plastic pallets
-- also can make floor tile only by changing mold
Our KB-2400B plastic mold manual roof tile making machine is different from automatic roof machine. It uses vibration table& pressure systerm to form tiles. We give pressure on upset mould, and give vibration on below mould. During process of production, operators put plastic pallet inside machine to hold tiles after forming tile. So we call it manual roof tile making machine. Please kindly view following:

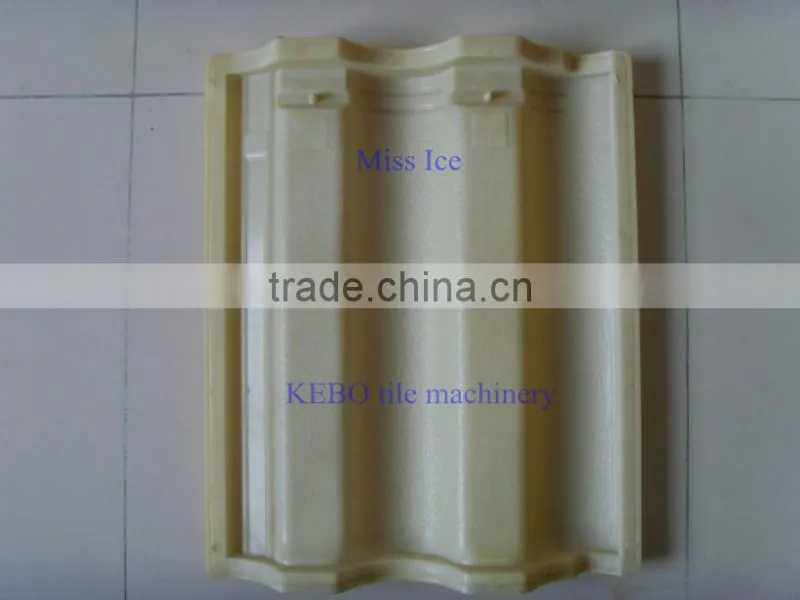

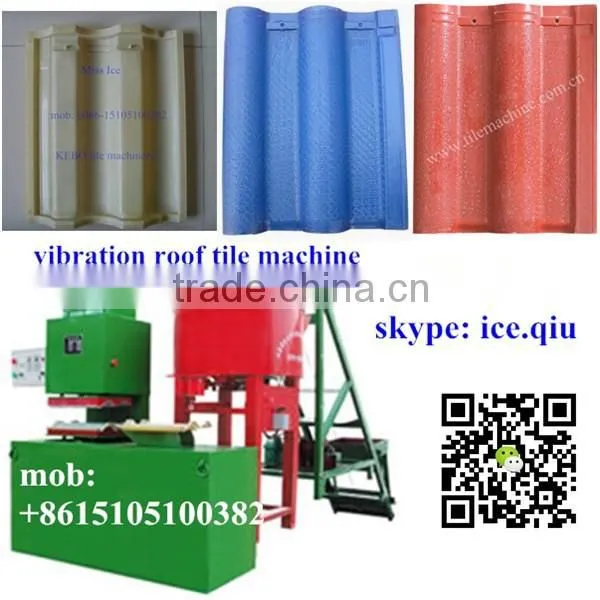

plastic pallet to hold roof tiles:

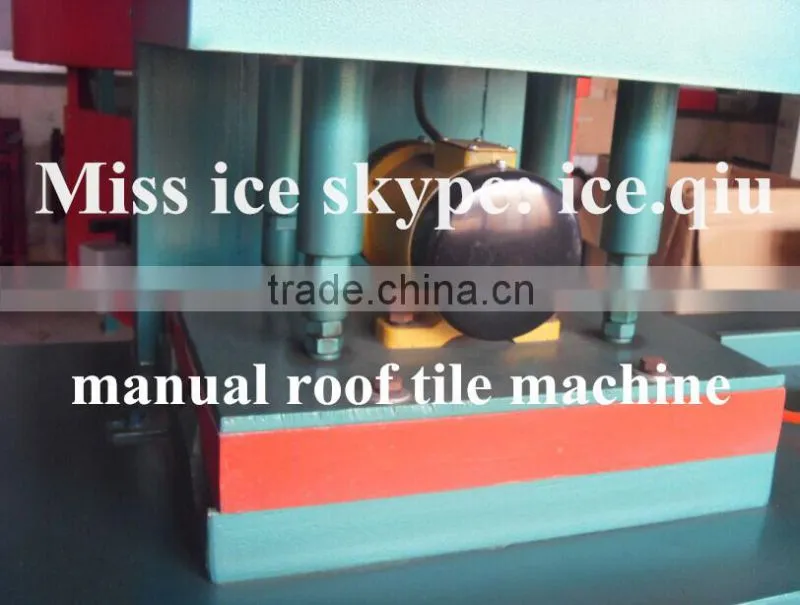

Vibration table for KB-2400B plastic mold manual roof tile making machine
specification for KB-2400B plastic mold manual roof tile making machine
| Technical data | |
| moulding type | vibration |
| moulding speed | 2000pcs per shift |
| main frame weight | about 2T |
| external dimension | 1800*1000*4100mm |
| Troduction capability | |
| roof tile | 4-5pcs/min |
| floor tiles | 3-4 pcs/min |
| wall tile | 3-4 pcs/min |
| Double layer terrazzo tile | 1-2 pcs/min |
raw material and work flow for KB-2400B manual roof tile making machine
Raw materials |
Specification |
Ratio(kg) |
Notes |
Cement |
P.O or P.S 32.5# |
50 |
|
Sand |
Medium sand,Mx=2.3~3.0 |
80~100 |
≤dia 5mm |
Stone powder |
|
80-100 |
optional |

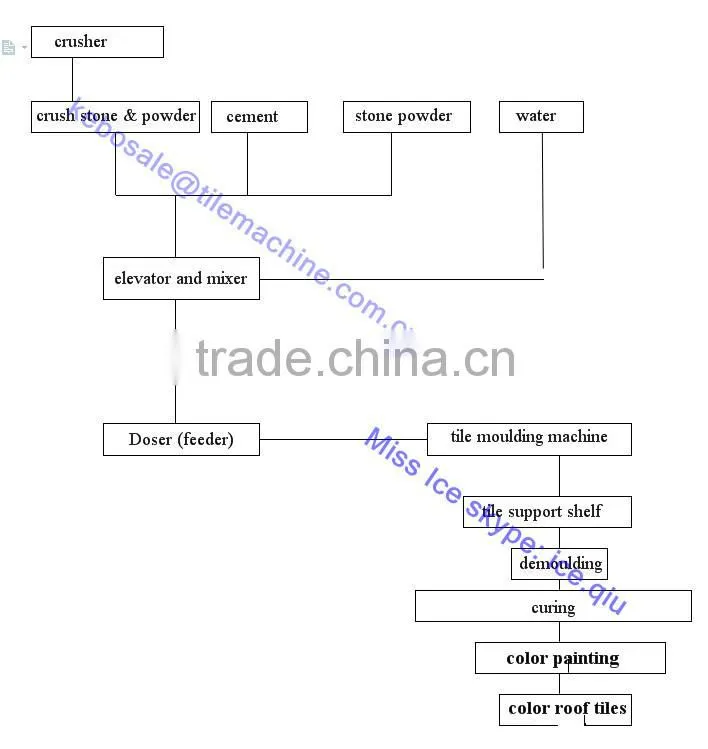

roof tile work flow:
Raw material→ 2.Bucket type elevator →3. Wheel type mixer→ 4. Quantitative constant feeding machine→ 5. Roof tile making machine→6. Roof tile pallet→7. Roof tile curing rack→8.24 hours curing →9.paintng corlor →8.Sell out
Composed equipment and support operators for KB-2400B plastic mold manual roof tile making machine
| 1 | Moulding machine | 1 set |
| 2 | constant feeder machine | 1 set |
| 3 | blender | 1 set |
| 4 | elevator machine | 1 set |
| 5 | air compressor | 1 set |
| 6 | color painter gun | 2 pcs |
| No. | Post | Operators |
| 1 | Main Moulding machine operation | 1 |
| 2 | Mixer supplying and operation | 1 |
| 3 | Moving wet products to tile rack | 1 |
| 4 | Transiting green products into curing room | 1 |

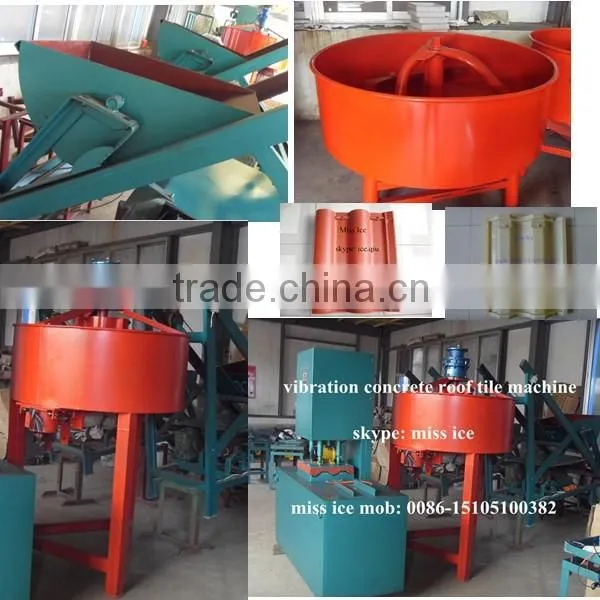

details parts for KB-2400B plastic mold manual roof tile making machine

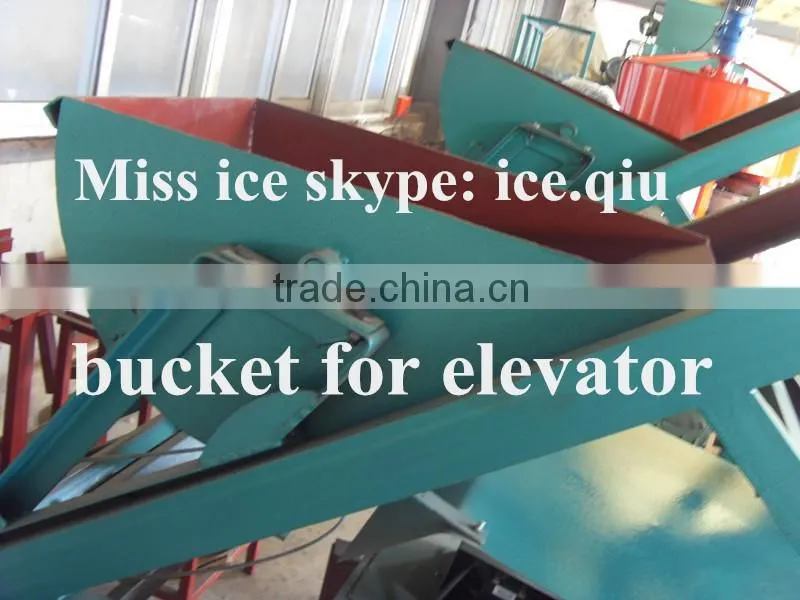

elevator with bucket to hold cement material
wheel mixer to mix cement and sand
constant feeder to apply fixed quantity mixer to moulding machine

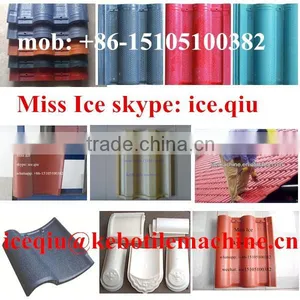

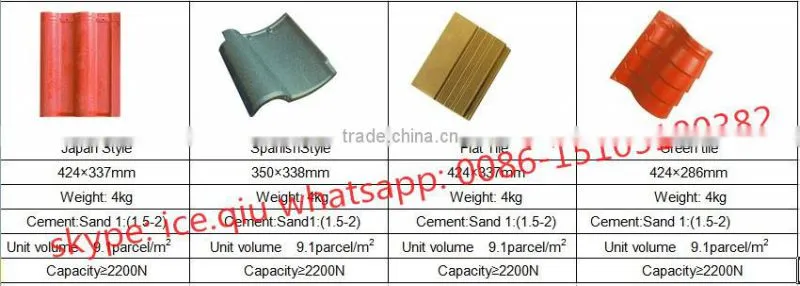

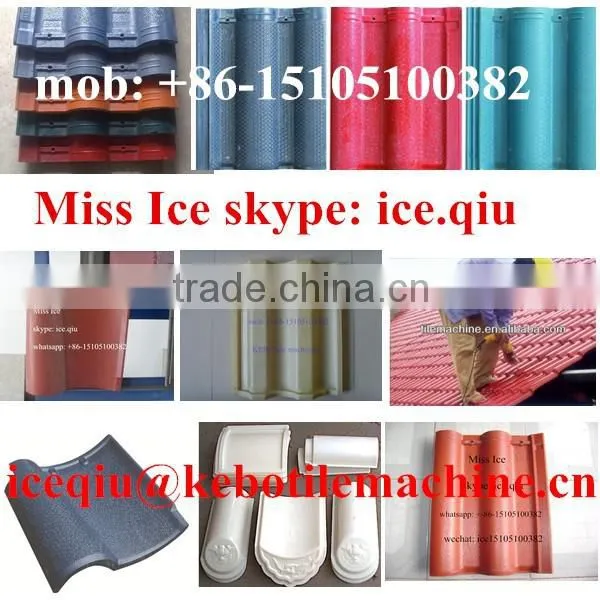

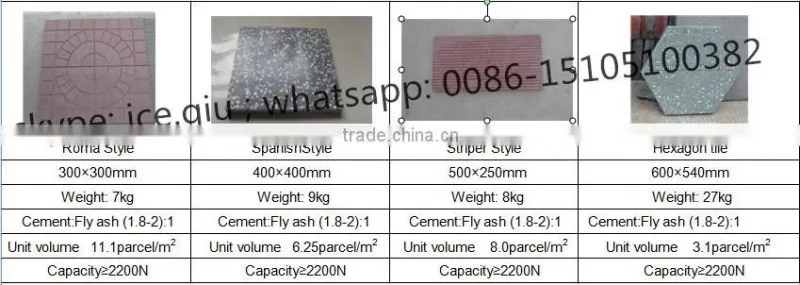

roof tiles and functional products for KB-2400B manual roof tile making machine by changing mold
Delievery for KB-2400B plastic mold manual roof tile making machine

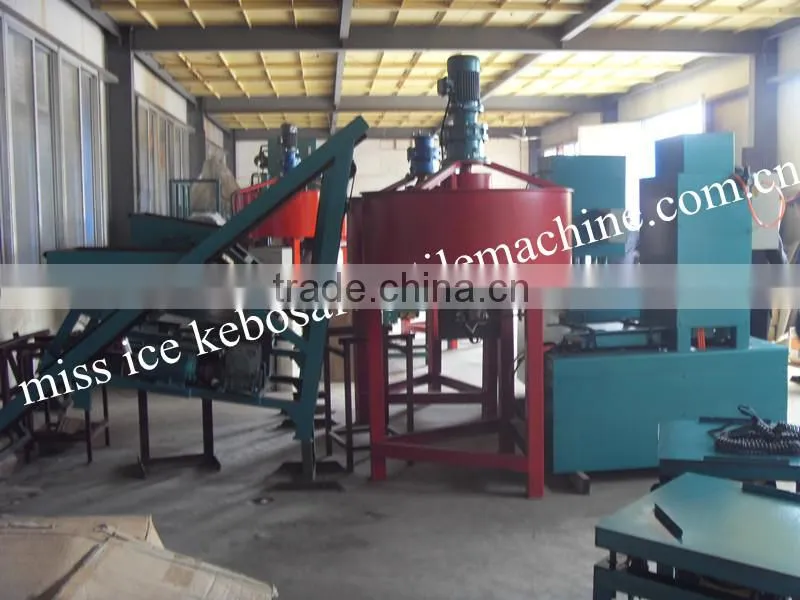

customers with KB-2400B plastic mold manual roof tile making machine:
our company
FAQ:
1. How about the Delivery time?
Lead time since receipt of 30% T/T deposit payment: 45 days. Samples will be prepared within 5 Days.
2. What kind of payments does jenor support?
T/T, L/C, Western Union, PayPal & Cash are accepted.
3. Can you produce according to customers' design?
Sauce, we are professional manufacturer; OEM and ODM are both welcome.
4. Can you tell me your main customers?
That's our customer’s privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.
for details information,pls feel free to contact with me of following information. welcome you come to visit our factory if you come China:
