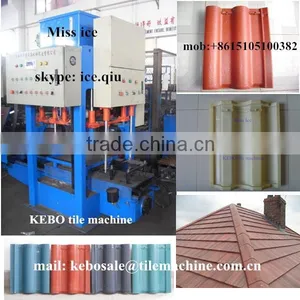

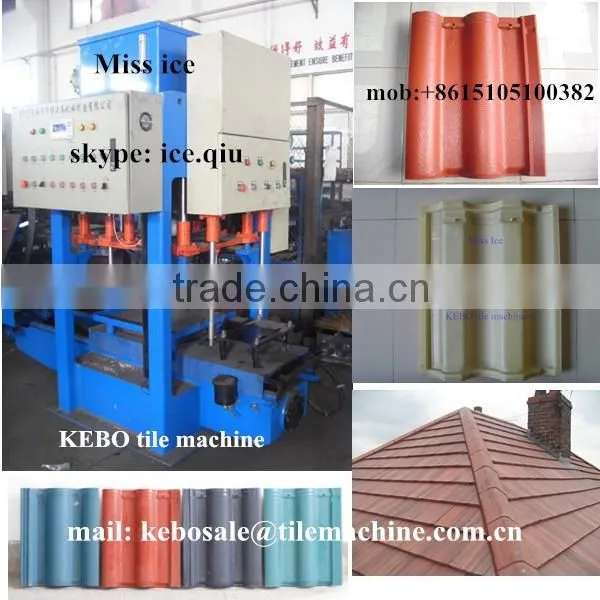

KB-125C different type Concrete roof tile making machine
(tiles making machine, roof tile machine/ concrete roof tile making machine)
-- cement + sand
-- 3000 pcs per shift
-- full automatic
-- mixer, elevator, feeder, moulding machine and pallets
-- iron moulds, metal pallets

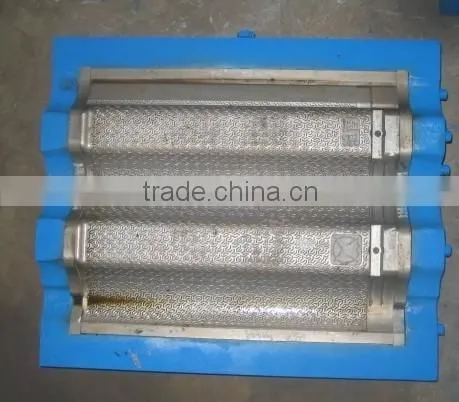

roof tile mould for KB-125C Concrete roof tile making machine

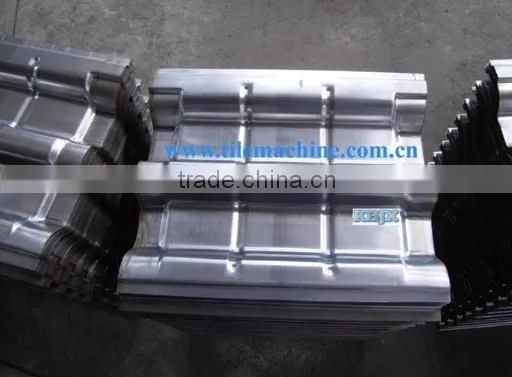

metal pallet:
Main technical parameters of KB-125C Concrete roof tile making machine
| # | Main technical parameters | Details |
| 1 | Voltage | 380 V |
| 2 | Molding Cycle | 7-8 seconds / piece |
| 3 | Molding Pressure | 1800 Kilo Newton |
| 4 | Normal Roof Tile Size 1 | 420 x 330 x 15 mm |
| 5 | Normal Roof Tile Size 2 | 424 x 337 x 15 mm |
| 6 | Maximum Roof Tile Size | 600 x 600 x 20 mm |
| 7 | Power of the Main Machine | 5.5 KW |
| 8 | Weight of the Main Machine | 5 tons |
| 9 | Dimension of the Main Machine | 2700*1600*2480mm |
| 10 | Output for Roof Tiles Per 8 Hours | 3000 pieces |
Manufacturing process for KB-125C Concrete roof tile making machine
1. At frist,the raw materials are put into the bucket elevator, then deliver to the rolling mixer,at this time,you must add some water into it.
2. After mixing, the mixture come into the dosing feeder,then,measurable mixture that one tile need will put down on the mould below through a small hole.
3. Then,a tile can be formed by high pressure,the pressure is about 120 tons. So the produced tile is very stable and dense.I think the constructor can boldly walk on the paved roof.
4. By the way,the tile need to dry out for about 3-7 days.Then you can paint.

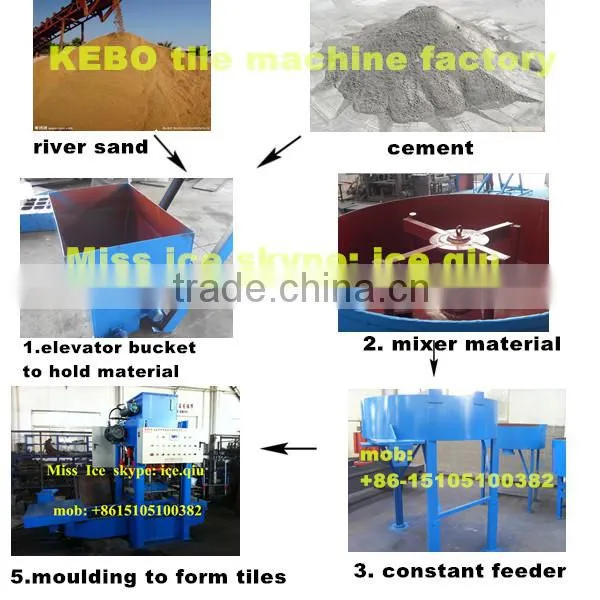

Elevating - Mixing - Fixed-quantity filling -Pressure forming- Mould unloading - Forming tiles - Maintenance - Finished products
Working machine:

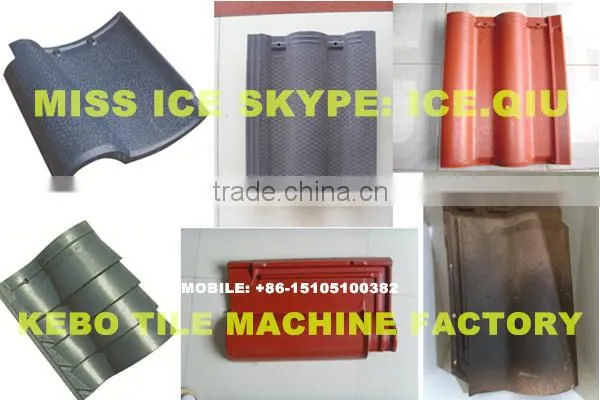

roof tile samples -- finished products

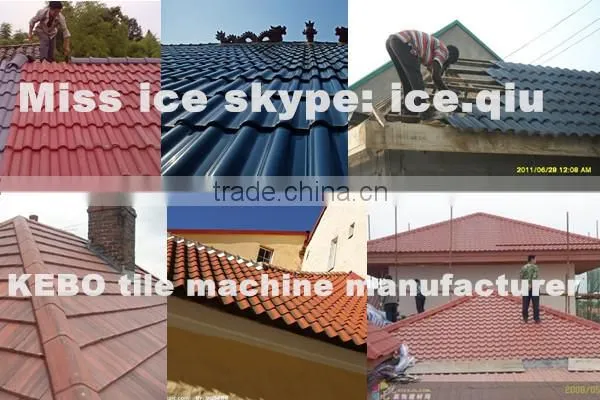

Usage of finished products
pls view following production process working flow and supposed operators for KB-125C Concrete roof tile making machine
| No. | Post | Operators |
| 1 | Main Moulding machine operation | 1 |
| 2 | Mixer supplying and operation | 1 |
| 3 | Moving wet products to tile rack | 1 |
| 4 | Transiting green products into curing room | 1 |
| 5 | polishing machine | 1 |
| 6 | stacker machine | 1 |
The KB-125C Concrete roof tile making machine includes the following parts:
| # | Product Name | |
| 1 | one bucket elevator | |
| 2 | one vertical mixer | |
| 3 | one quantitative feeding mixer | |
| 4 | one moulding machine | |
| 5 | one hydraulic forklift | |
| 6 | one manual ridge/edge tile making machine | |
| 7 | 2000 pieces of steel tile moulds | |
| 8 | 5 pieces of plastic ridge tile moulds and 5 pieces of plastic edge tile moulds | |
each equipment has details picture for KB-125C Concrete roof tile making machine, pls view following:

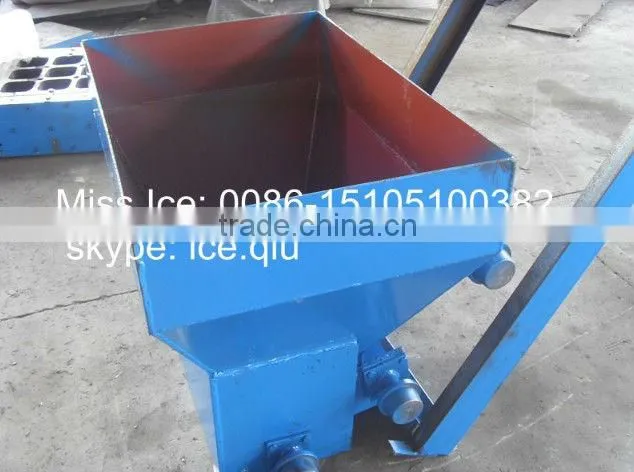

elevator has a bucket to hold mixer like cement and sand

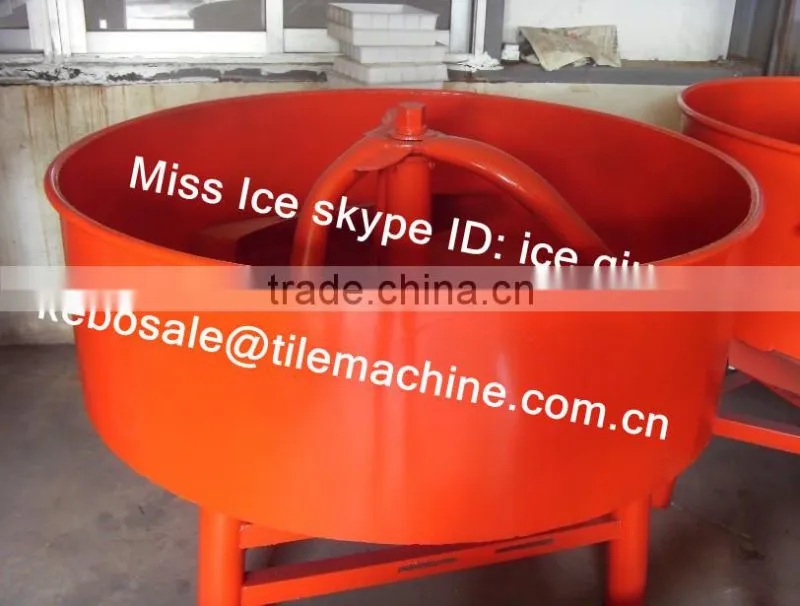

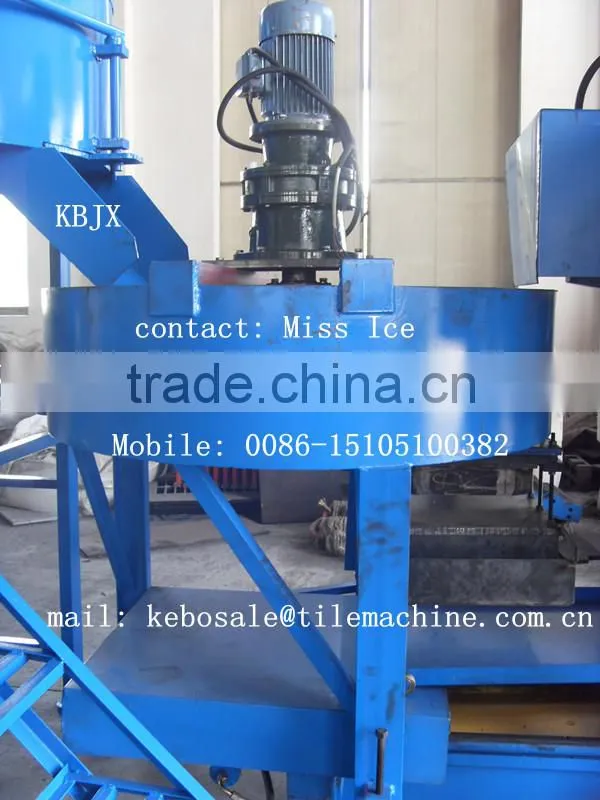

wheel mixer after elevator of material
constant feeder after mixer and before moulding

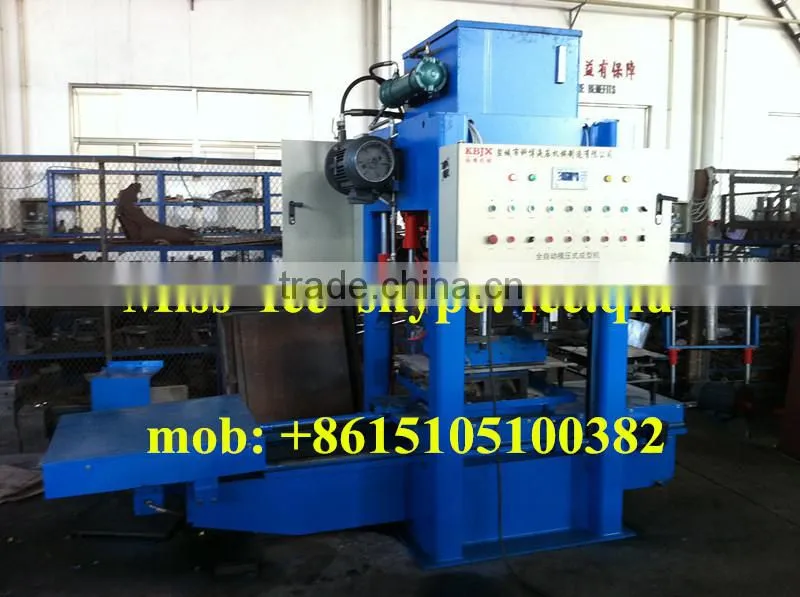

moulding machine to form tiles:
Charactor for KB-125C Concrete roof tile making machine
1.The machine adopts PLC programmable controller featuring fast molding speed,large output,automatic control, man-machine interface, reliable performance and convenient operation. It has 7-8 pcs/min, whole hydrao-pneumatic production speed, high rate of finished producs and high cost performance.
2.As a competitive concrete products making equipment, its products adopts mortar oncrete filter pressing molding and features perferct structure. Various style, high density, high intersity and accurate size, which can meet the needs of different constructions.
3.It is multifunctional machine,it can be used to produce various styles of main tiles, ridge tiles. Edge tiles and ditch tiles after changing the molds as well as different styles of high grade concrete ground tiles,such as terrazzo tiles, stripe tiles, wall tiles and so on.
4.Its remote diagnosis system,which can be used to control and diagnosis the equipment remotely through the phone line,greatly reduces the requirement for customers and makes the machine more humanization.
5. KB-125C Concrete roof tile making machine has a high quality but low price, occupies the market share by its perfect products.
6.Stuffer pot adopts unique feeding head design, which ensures the complete matching of large quantity of filler incorporation and uniformity of threading, with high production of the complete machine.

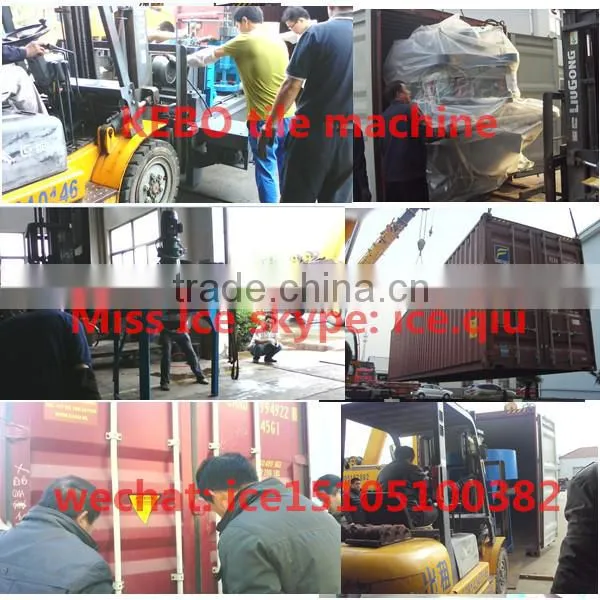

delievery packaging & shipping for KB-125C Concrete roof tile making machine
Customers with our machine KB-125C Concrete roof tile making machine

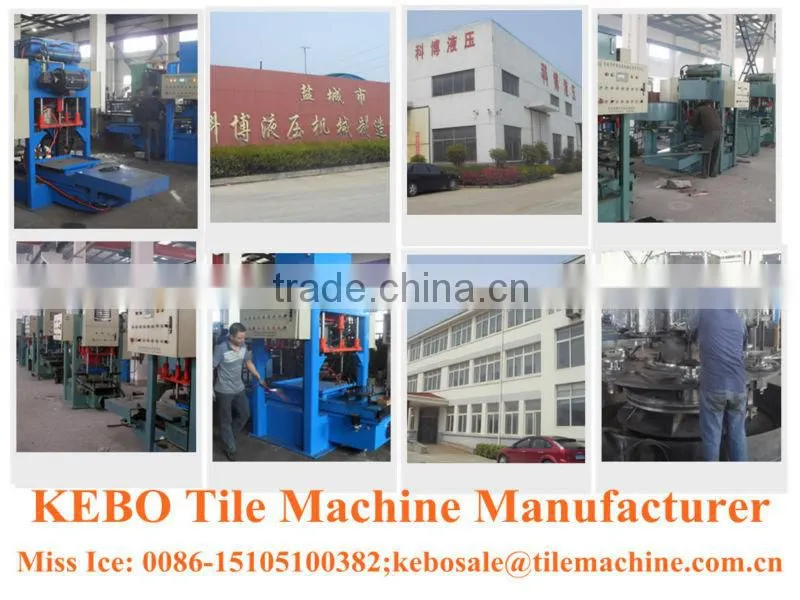

Our company YANCHENG KEBO HYDRAULIC TILE MACHINE MANUFACTURER
Guarantee and service after-sale
. one year guarantee for whole machine except consumption
. 24 hours technical support by email
. calling or door to door service
. ues-friendly english software, user manual, and details video
for details information pls feel free to contact following information with me, if you have time, welcome you to visit our factory for KB-125C Concrete roof tile making machine
