KB-125E/600 automatic concrete floor tile machine
Product Description
raw material and production process
| Raw material | Specification | Ratio (kg) | Notes |
| Cement | P.O or P.S 32.5# | 50 | |
| Stone dust | Dia 2mm to 5mm | 80-100 | ≤dia5mm |
| crushed stone | dia 5mm to dia10mm | 100-150 |
Production process for KB-125E/600 automatic concrete floor tile machine
Material put into bucket --- Elevating--- Mixing --- Fixed-quantity filling --- Pressure forming --- Forming tiles --- Stacking --- Curing for 3-7 days - --- Polishing --- Finished products.
Speification for KB125E/600 automatic concrete floor tile machine
| KB125E/600 automatic concrete floor tile machine | |
| moulding presure | 300 tons |
| moulding speed | 4-6pcs/min, 2000pcs/8 hours |
| main frame power | 7.5 KW |
| main frame weight | 8T |
| external dimension | 3460*1830*2750mm |
|
Control System Japan Mitsubishi PLC Mixer Electric Control Cabinet
|
|
Hydraulic System Molding Pressure128T Lift Motor, Transmission Machinery
|
|
Hydraulic Cylinder Feeding Distance 300MM
|
|
Bucket Elevator Host Weight 8 T
|
|
Electromagnetic Steering Valve Made in ShLiX Total Power: 21.2 KW
|
|
Mortar Quantitative System 600KG Molding Cycle: 10-20 S
|
|
Elevator Capacity(8 hour) 2000 PCS
|
Equipment parts composed for KB-125E/600 automatic concrete floor tile machine
| 1 | Moulding machine | 1 set |
| 2 | mixer | 1 set |
| 3 | elevator | 1 set |
| 4 | feeder | 1 set |
| 5 | polishing machine | 1 set |
| 6 | air compressor | 1 set |
Picture showing for KB125E/600 automatic concrete floor tile machine
Features for KB-125E/600 automatic concrete floor tile machine
-- Various colors and suitable for decoration;
-- High strength, lightweight, low consumption, large single-piece area and high coverage.
-- Good insulation.
-- Anti-acid and rain, weathering-resistant, good weather ability and over-80 years service lift expectancy.
-- Waterproofing and anti-permeation
-- Various kinds
-- Widely used. Products can be used in various buildings, practical and decorative.
Performance for KB-125E/600 automatic concrete floor tile machine
1). Is PLC controlled - Is simple to operate and maintain; and it is with the function of Data input and output, Logic control and fault, and Self-diagnostic ,etc.
2). Requires just a few hours of instruction to become familiar with its operation;
3). Occupies and needs very little floor area for production;
4). May be disconnected from the power supply and ‘stored’ when not in use;
5). Designed and constructed to the same high-quality engineering standards for which all of our equipment is known.
6). Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted. And Precise control components action.
7).Take use "program-controlled" Transmission positioning, stable transmission, accurate setting;
8).Take vibration on worktable ,rotating multi - layer cloth, high frequency pressure, automatic propulsion, etc. make molding cycle is short, high production efficiency, quality and density of large tiles, high strength, dimensional accuracy.
9).This machine works in many ways. By changing molds, it could produce roof tile, stair tile...
KB-125E/600 automatic concrete floor tile machine is using in customer factory

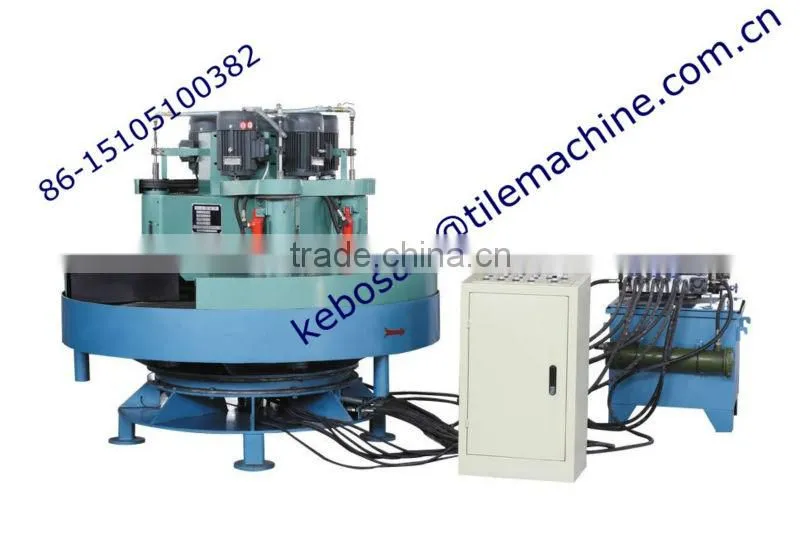

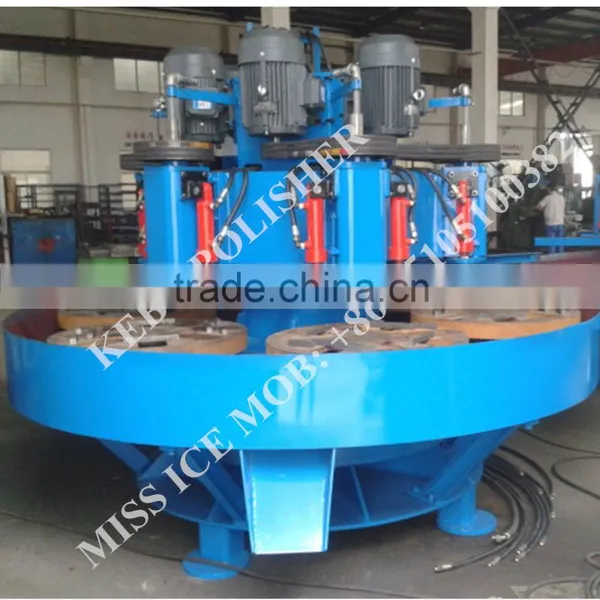

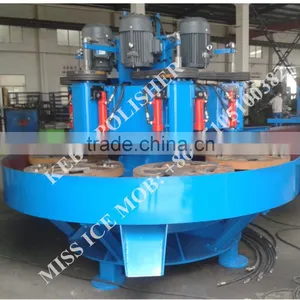

To make floor tiles, terrazzo tiles, customer also need polishing machine, KBMJ600 is our polishing machine which can meet usage of KB-125E/600 automatic concrete floor tile machine. KBMJ600 can make tile surface smooth and shining. see below specification for HBMJ600 polishing machine
Equipment type KBMJ600
| moulding speed | 9-15pcs/min |
| main frame power | 36.5kw |
| main frame weight | 6T |
| external dimension | dia2950*2320mm |
| polishing tiles size | 500*500mm, 600*600mm |
| capacity per shift | 500-700 m2 |
composed parts for KBMJ600
| 1 | PLC Control Unit | 1 set |
| 2 | Hydraulic unit | 5 sets |
| 3 | polishing pads | 1 set |
| 4 | main engine | 1 set |
| 5 | polishing stone | 1 set |
1 Its applicable for the polishing of terrazzo tile and marble tile.
2 The Dimension is within 400mm.
3 Its with the multiple working position and several groups so grinding heads. It could automatically change the working poistion,polish and supply,and grind separately and gradually.
4 Its with the simple operation. Usually,it only needs one person to load and unload the floor tiles.
5 The output is 12-15S/piece.
6 The surface is very smooth,which can compare with the finished marble.
7 Its with the stable performance and reliable safety.
8 Usually KBMJ-600 is used together with KB125E/600. as KB125E/600 is kind of terrazzo tile making machine. Then KBMJ600 can polish these tiles.
9 Lower price with KBMJ-600 terrazzo grinding machine , exported many countries and get high reputation.

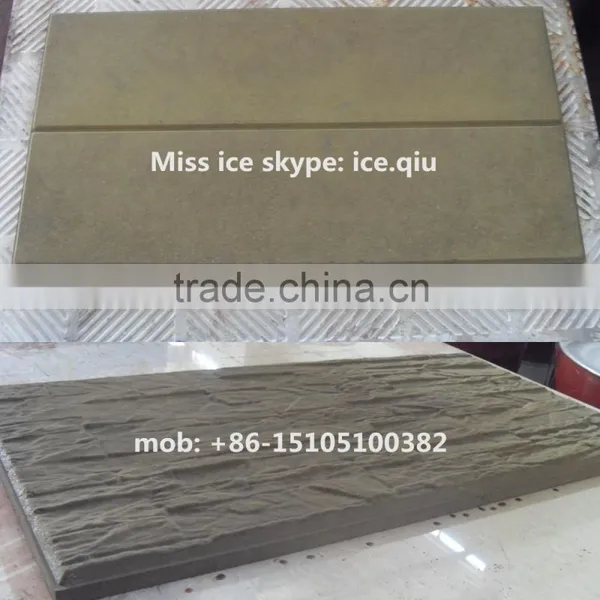

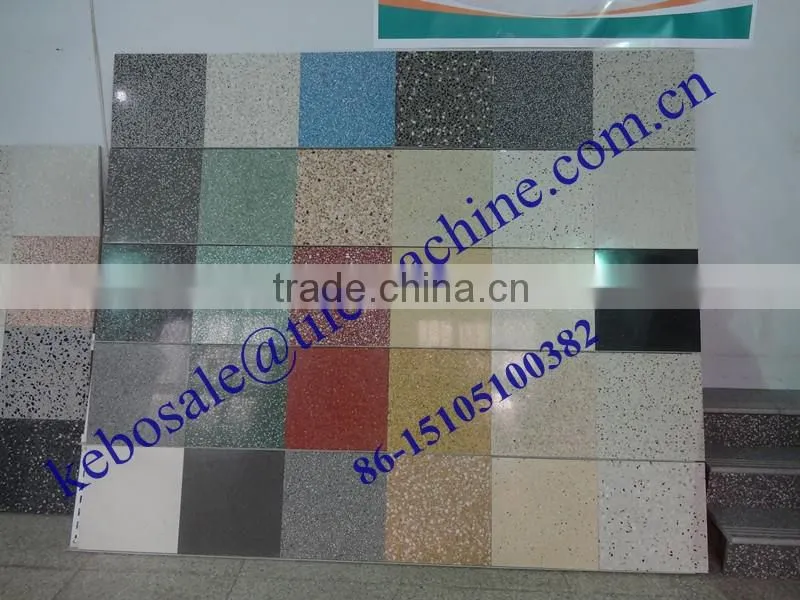

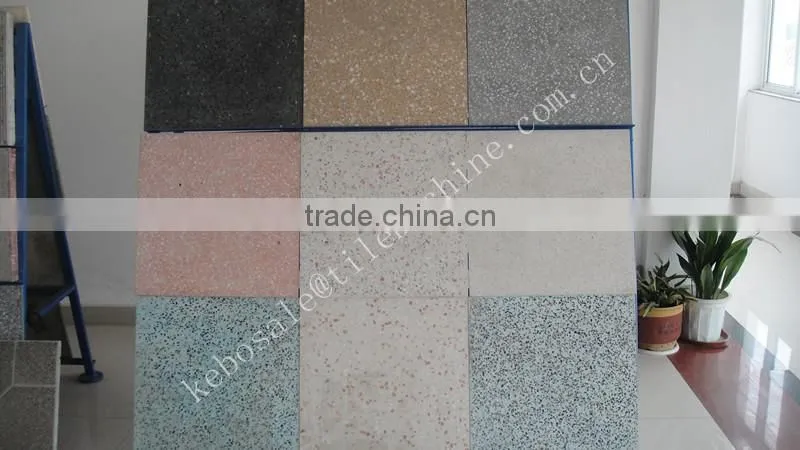

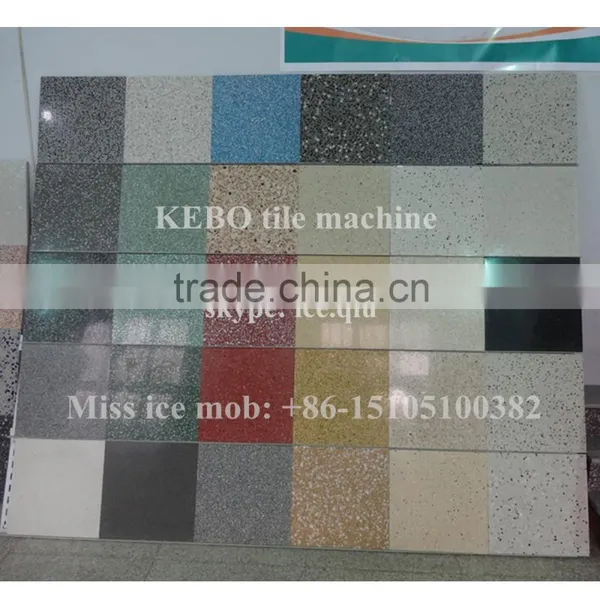

finished products -- terrazzo tile showing

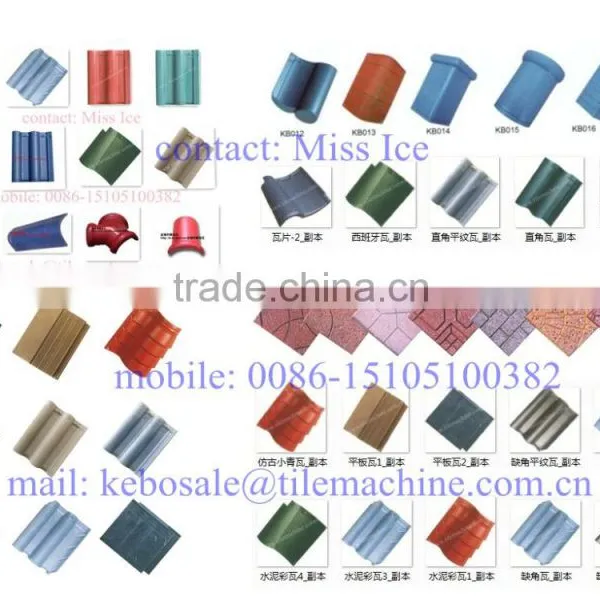

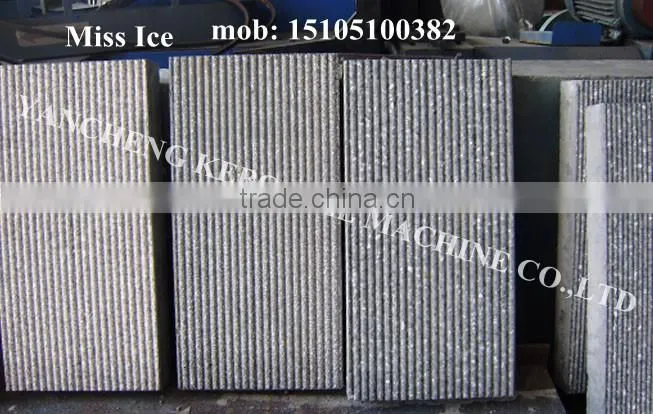

Functional products
Packing & Shipping
Our Services
Before-sale services:
(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing.(Confirm clay,power electricity,water,land area, fund)
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.
In-Sale services:
(1)Quality control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract
After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
a. Daily wear and tear 2.mishandling or improper operation3. Incoming power supply fluctuation
b. Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.

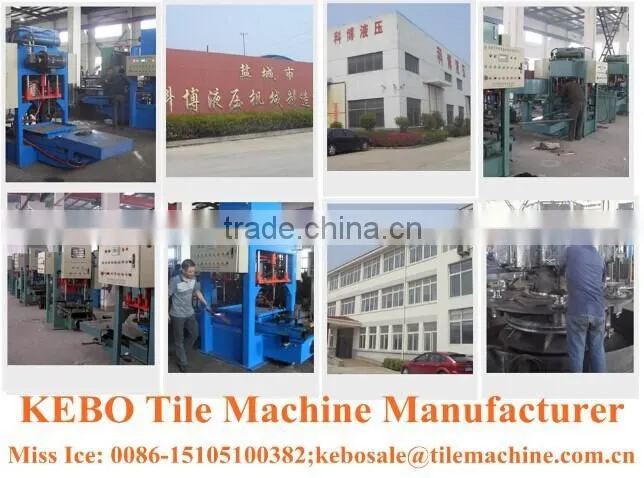

company information
we locates in jiangsu province, welcome you come to visit our factory, and give good suggestion
for details information, pls feel free to contact with me of following. pls click left side weichat logo, you will be our partner. If you have time, we welcome your coming to visit our factory:
