Specifications
KB-125E/400 Ceramic floor tile making machinesize 200*200mm to 400*400mm available
2500pcs per day/8hours
KB-125E/400 Ceramic floor tile making machine
Specification
| Equipment type | Model 400 | Model 600 | Model 500 |
| moulding speed | 4-6pcs/min | 3-5pcs/min | 5-6pcs/min |
| main frame power | 7.5kw | 7.5kw | 7.5kw |
| main frame weight | 5T | 8T | 7T |
| external dimension | 2700*1600*2480mm | 3460*1830*2750mm | 3300*1680*2700mm |
charactor

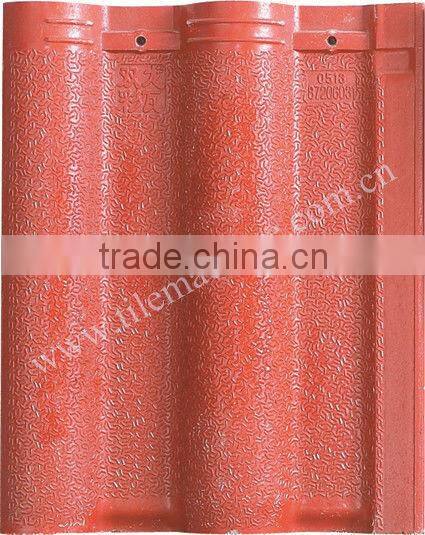

-- KB125E also can make roof tiles. includes main tile, ridge tile, end tile...etc
-- KB125E also can make TURBSTONE with length reach 100cm more. sand, cement, cobblestones and water.
-- each kind tile has module, we can open any modules of designs from customers
-- about tile, single layer & double layers are both available
-- very easily operated by workers. one machine need 2-3 people. workers need 2-3 hours are able to learn completely,
production process
1. Moulding
Water will be got rid of during production, the pressure should be over 300tons((The pressure gauge indicates over 7.5MPa) and the pressing time should not be less than 3 seconds.
Change the filter net on lower mould in time, usually 2~3 times each shift. If water polluted and muddy, then filter net should be changed, otherwise tile’s quality will be affected.
2. Curing
Generally, wet tiles and stone should be naturally cured 24 hours on the pallets, and humidity and temperature should be controlled at the same time. Take away pallets when tile and stone surface solid, water tiles everyday in the first week, and water amount subject to humidity. It’s better to put tile in vertical way and 28- day curing time is needed before on sale

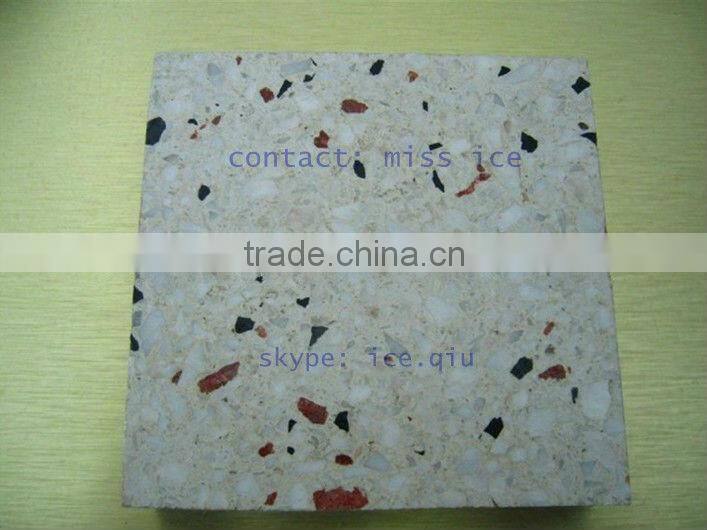

terrazzo tiles sample

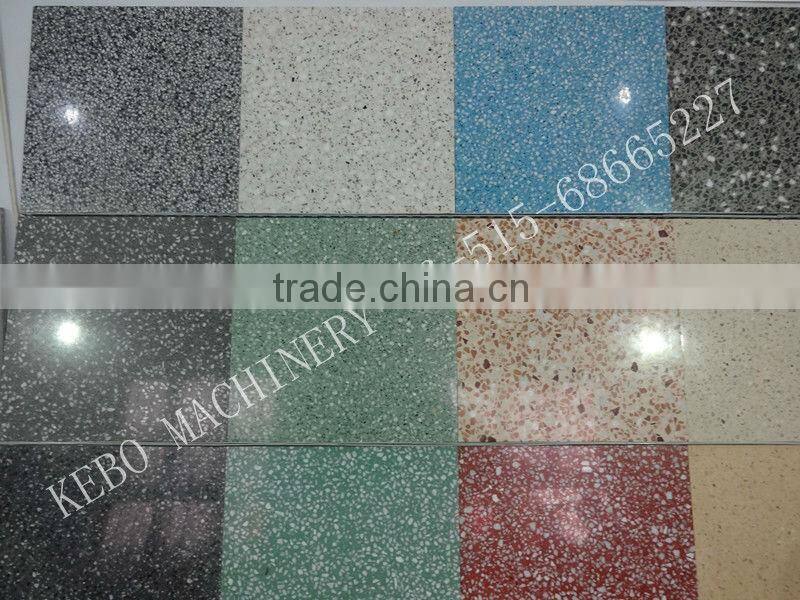

advanced floor tile sample
also can make wall tiles sample
multifunctional performance
for details information pls feel free to contact following information with me:
