Foling Gluing Rigid Boxes Machine

Foling Gluing Rigid Boxes Machine thumbnail-1
Foling Gluing Rigid Boxes Machine thumbnail-2
Foling Gluing Rigid Boxes Machine thumbnail-3
Foling Gluing Rigid Boxes Machine thumbnail-4
Foling Gluing Rigid Boxes Machine thumbnail-5
Foling Gluing Rigid Boxes Machine thumbnail-6
Foling Gluing Rigid Boxes Machine photo-1
Foling Gluing Rigid Boxes Machine photo-2

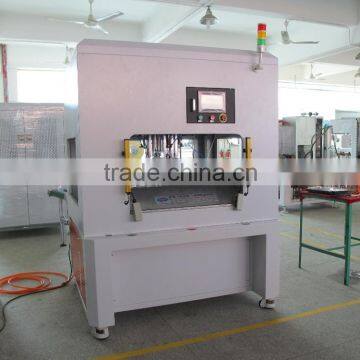

Foling Gluing Rigid Boxes Machine photo-3

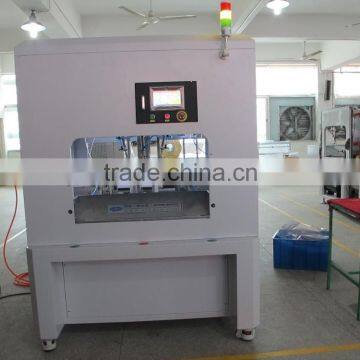

Foling Gluing Rigid Boxes Machine photo-4

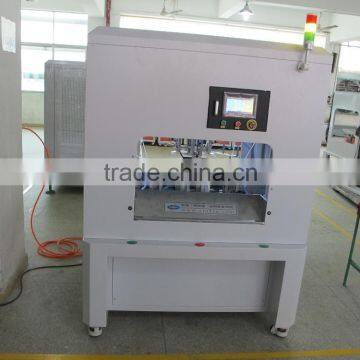

Foling Gluing Rigid Boxes Machine photo-5
Foling Gluing Rigid Boxes Machine photo-6
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Commodity, Other, Apparel, Commodity, Machinery & Hardware
Packaging Type:
Case, Film
Contact Supplier Request Quote Chat Now
Dongguan Toden Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Apparel, Commodity, Other, Apparel, Commodity, Machinery & Hardware
Packaging Type Case, Film
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220v single phases
Power 3.5KW
Place of Origin Guangdong, China
Brand Name TODEN

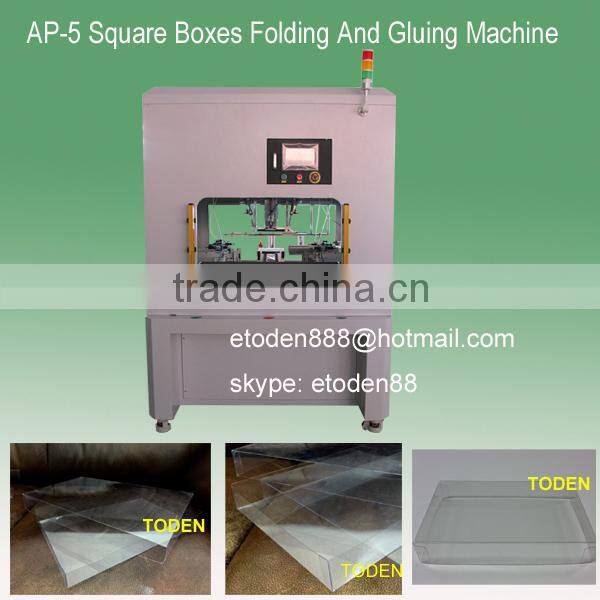

Model Number AP-5 four corner die cut pvc gluing box machine
Dimension(L*W*H) 600*800*1800 MM
Weight 850KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

foling gluing rigid boxes machine

foling gluing rigid boxes machine



1 Gluing system

2 Mix box size:130*130*20 mm(L*W*H)

3 Max Box size:400*400* 80 mm (L*W*H)

4 Material Thickness:0.12-0.6 mm

5 Machine Speed:300-600 PICS/HOUR

5 Machine size about:1380*1380*1850 mm(L*W*H)

6.Putting the creased sheet on the machine ,machine automatic folding and gluing 4 corners in one time .





Machine Work Process:



1 Ready for the PVC die cut boxes ,the boxes should be with line ,the creasing



line , we also have the automatic creasing and die cutting machine .it can be



roll or sheet .



2 Manual putting the sheet on the mold .there will be 2 mold for one size PVC



boxes .the mold is easy making by wooden ,but it is dealing around the side .



worker just fast putting the sheet on the mold according to the mold line and



 boxes line



3 touch the panel button by hand ,machine head going down in manual process .



 The machine will automatic gluing after the up mold close to the down mold.,



the glue is liquid glue ,it is like water .so it gluing by needle (0.2 mm ,



0.25 mm.0.3 mm)



4 after gluing ,the four corner will automatic loosen ,and boxes will jump .



then you can see the gluing area .



5 there will be sample manipulator to carry the boxes out. ,you can putting



a running belt table on the other side of machine . Ok ,the worker can be



here putting product inside the boxes .



6 machine advantages: compared with gluing by manual . Machine can folding



and gluing in one time , worker need gluing four corner and one by one .



 Machine gluing four corners in one time.







Four corner boxes in our Life



1 i believe that everybody buy the shirt or the warmly cloth ,it is packaged



 by the four corner boxes ,the advantage is the clearance of PVC .



2 the gift boxes ,the bottom side ,it maybe the paper or cardboard and the



top cover also the plastic four corner boxes ,that you can see inner side



 thing easy.







Other things related to four corner boxes gluing machine



1 Needle : gluing by needle ,customer need do some preparations .



2 Glue : PVC material use the PVC glue . 15kg/one bucket.



3 mold : one size need one up mold and one down mold





plastic PVC PET PP boxes line related machine

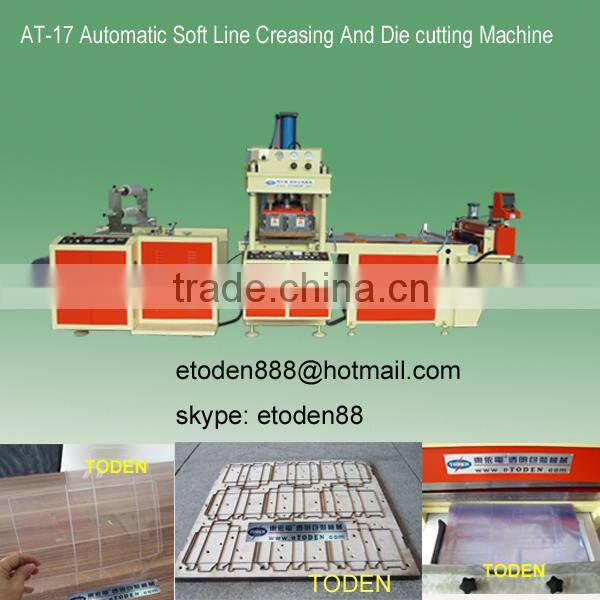

Automatic Roll material creasing and die cutting machine

foling gluing rigid boxes machine



Plastic Roll material Sheet Cutting Machine

foling gluing rigid boxes machine

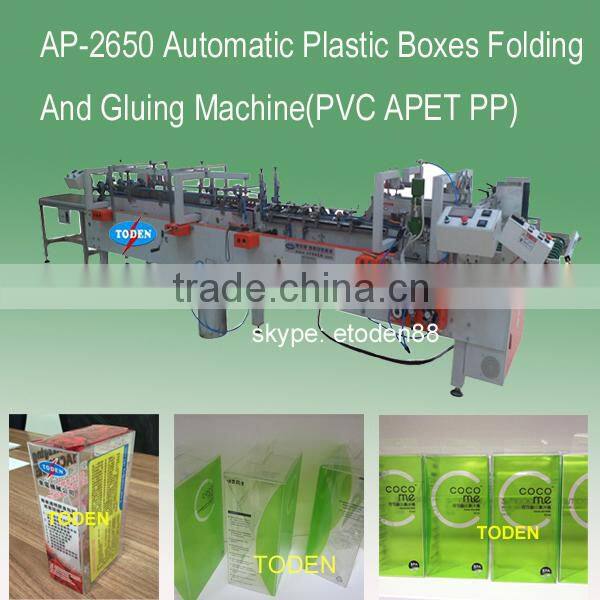

Automatic Boxes Folding And Gluing Machine

foling gluing rigid boxes machine

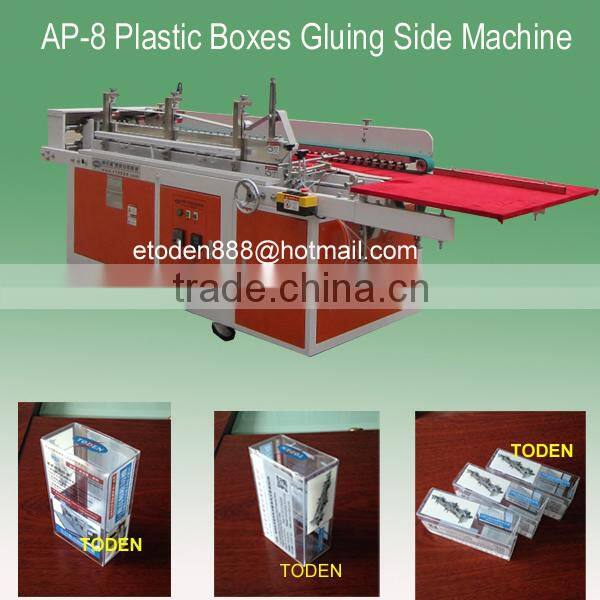

PVC boxes gluing machine

foling gluing rigid boxes machine



PVC PET PP Boxes view

foling gluing rigid boxes machinefoling gluing rigid boxes machine







Company Information

 About toden ,boxes machinery manfacturer in PVC PET boxes gluing machine ,pvc pet boxes folding machine

foling gluing rigid boxes machine







Factory view:

foling gluing rigid boxes machine

Our team

foling gluing rigid boxes machinefoling gluing rigid boxes machine

Machine exporting :

foling gluing rigid boxes machine



Machien pacakges:

foling gluing rigid boxes machine

Contact information:

foling gluing rigid boxes machine
