5-1000MHz 2-Way Splitter
- 100000 Piece / Pieces per Month
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | CINACOM | |
| Model Number | CNFP-204 |
Product Description

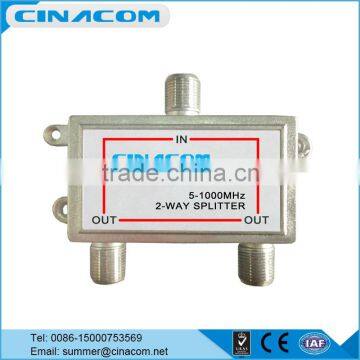

5-1000MHz 2-Way Splitter
CNFP-204
CNFP indoor integrated splitters launched by CINACOM are passive distribution transmission devices with high quality, suitable for 5-1000 MHZ bidirectional transmission system. These series of products are with low insertion loss, small branch deviation , low dissipation, high port isolation degree charaterstics. The adopting of zinc alloy integration shell and tin sealing back cover greatly improve the shielding index, meeting the international standard. The products enforce GY/T 137-137 standard.
Item | Unit | Technical Parameter | ||||||||
| 2 BR | 3 BR | 4 BR | 6 BR | 8 BR | 10 BR | 12 BR | 14 BR | |||
| splitting loss | 5—65 MHz | dB | <=3.6 | <=5.8 | <=7.0 | <=9.3 | <=10.5 | <=12.3 | <=13.2 | <=14.2 |
| 65—550 MHz | dB | <=3.6 | <=5.8 | <=7.0 | <=9.8 | <=11.0 | <=12.5 | <=13.5 | <=14.4 | |
| 550—750 MHz | dB | <=3.8 | <=6.0 | <=7.5 | <=9.8 | <=12.0 | <=13.0 | <=14.0 | <=14.5 | |
| 750—1000 MHz | dB | <=4.0 | <=6.2 | <=8.0 | <=10.5 | <=12.0 | <=13.5 | <=14.5 | <=14.8 | |
| mutual isolation | dB | ≥25 | ||||||||
| return loss | dB | ≥18 | ||||||||
| electromagnetic shielding | dB | ≥100 | ||||||||
| connector | metric F type | |||||||||
