OEM/ODM Optical receiver/ftth catv optical receiver
- 10000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | CINACOM | |
| Model Number | CNOR300-H1 |
Product Description

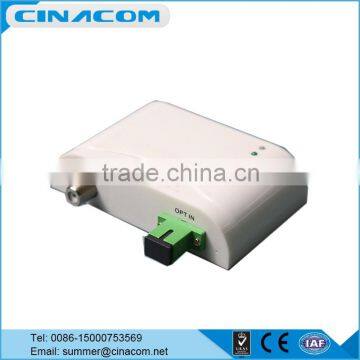

CNOR300-H1
CATV FTTH AGC Optical Receiver
CNOR300-H1 mini optical receiver is a product for FTTH (fiber to the home) developed by CINACOM. Its low power consumption, good heat dissipation, extra-low optical power receiving, convenient maintenance and low price enable it to be the prior choice of users.
- Bandwidth: 47~1003MHz
- Input optical power: +1 ~-15dBm
- Output impedance: 75Ω
- Adopting GaAs synthesis technology
- +5V power adapter
- Mini size
Item | Unit | parameters | |
Input power | dBm | -15 ~ +1 | |
Return loss | dB | > 45 | |
Wavelength | nm | 1100 ~ 1600 | |
Connector | SC/APC | ||
Fiber type | Single mode | ||
C/N | dB | ≥ 45 | -11dBm receiving power |
C/CTB | dB | ≥ 60 | |
C/CSO | dB | ≥ 60 | |
Frequency range | MHz | 45 ~ 862/1003 | |
Flatness | dB | ±1 | |
Standard output level | dBμV | ≥ 72 (-1dBm receiving power) | |
Output return loss | dB | ≥ 16 | |
Output impedance | Ω | 75 | |
Consumption | W | <2 | |
Work temp | ℃ | -20 ~ +55 | |
Size | mm | 95*75*24 | |
