Outdoor Optical Receiver Made in China

FOB Price

USD $94.36 - $94.36 / Piece

10 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	CINACOM
Model Number	CNOR300-B4

Product Description

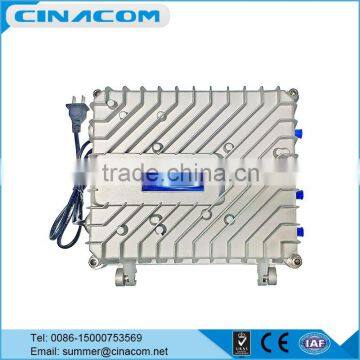

CNOR300-B4

Good Quality 4 Outputs Optical Receiver

Product Description

CNOR300 - B4 is a type of high-grade outdoor optical receiver with AGC, network management, bi-direction. All the working parameters are controlled by a microprocessor and displayed by LED. The internal keys can adjust and set EQ, ATT. It has optional network management transponder, implementing remote network management. That large dynamic range of AGC feature and four-way high level output CNOR300 - B4 is suitable for FTTC, FTTN optical fiber access network. As receiving unit of CATV network, it is a high performance, high flexibility, high ratio of CATV optical receiver.

Product Features

1. Stable output level in the range of -8 ~ + 2 dBm
2. All parameters are controlled by a microprocessor, LED display
3. Output level and slope is adjusted and setted by microprocessor
4. Ultra-low power receiving - 10 ~ + 2 dBm
5. Unique potassium arsenide synthesis technology, with high performance,

high level and low distortion, low power consumption
6. Advanced two lightning protection processing technology and unique surge suppression circuit
7. With the bi-directional transmission

Main Application

• FTTB,FTTC

• HFC

Technical Index

Item	Unit	Performance Index
AGC control range	dBm	-8~ +2
optic fiber connector		SC/APC or FC/APC
flatness	dB	≤±1.0
output level	dBμV	104 ±1.0
output level adjust	dB	-20~0
output slope adjust	dB	-10~0
return loss	dB	≤14
CNR	dB	≥52
CTB	dB	≤-65
CSO	dB	≤-60
power consumption	W	≤15
