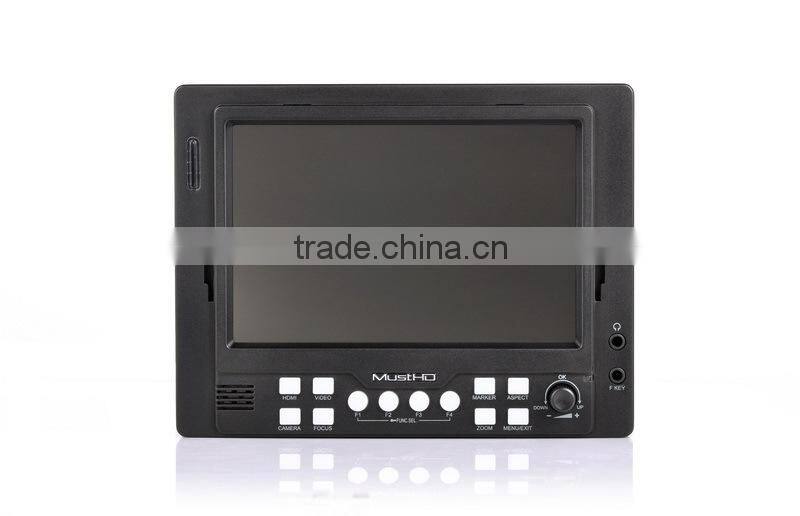

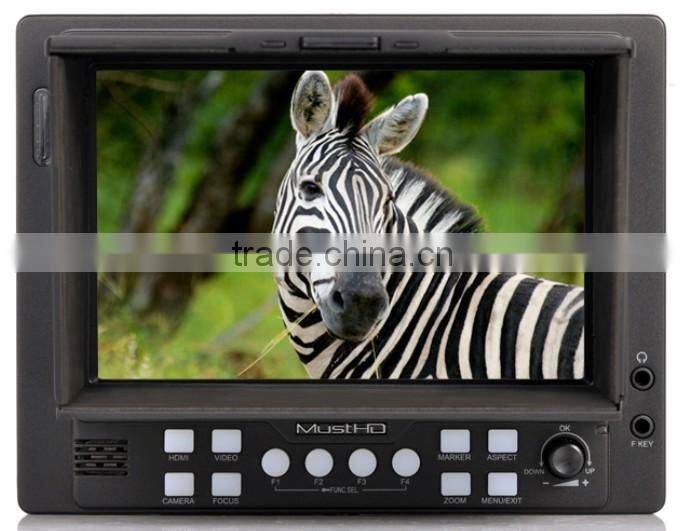

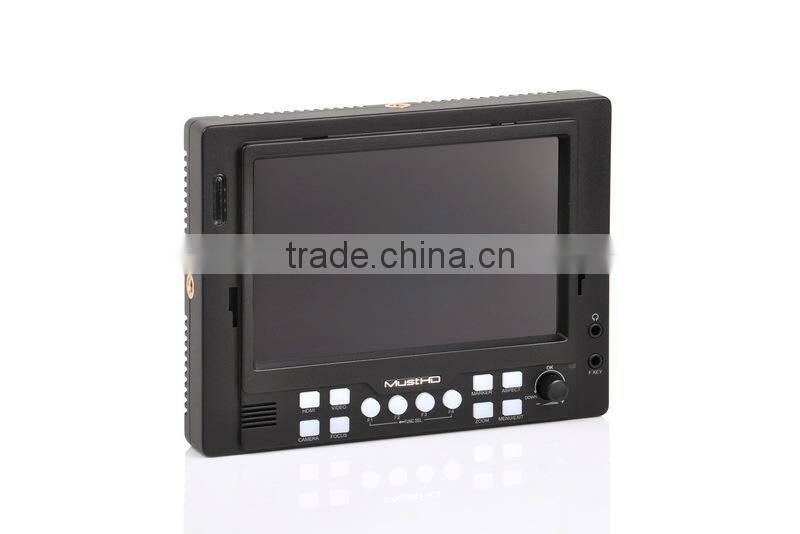

5.6 Inches 1080p Cheap Lcd Monitor With Hdmi Input Tally Focus Assist Marker False Color

Overview:

The MustHD 5.6 inch 1080p cheap lcd monitor with hdmi is designed to help photographers or film makers to get better focus and thus better pictures and videos with DSLR camera!

The MustHD 5.6 inch cheap lcd monitor with hdmi presents crystal clear image of what you are shooting directly onto a large 1280*800 LCD screen, meaning you never have to strain your eyes to see any image again. Ideal for armatures as well as professionals who need to view images all day long! Make focusing, framing your picture and previewing quicker and clearer. Place the 5 inch monitor for your DSLR camera at varied angles without worrying about keeping your eyes level with the miniature in-built camera screen.

What makes the 5.6 inch 1080p cheap lcd monitor with hdmi better than other similar products in the market are largely from its excellent menu design; custom preset button, knob-control mechanism, unique sun-hood and battery plate. Users can scroll up and down easily to view the menu confirmation, customize regularly-used function to 6 buttons. Users can install/uninstall, open/close the sun-hood easily, so are the battery plate.

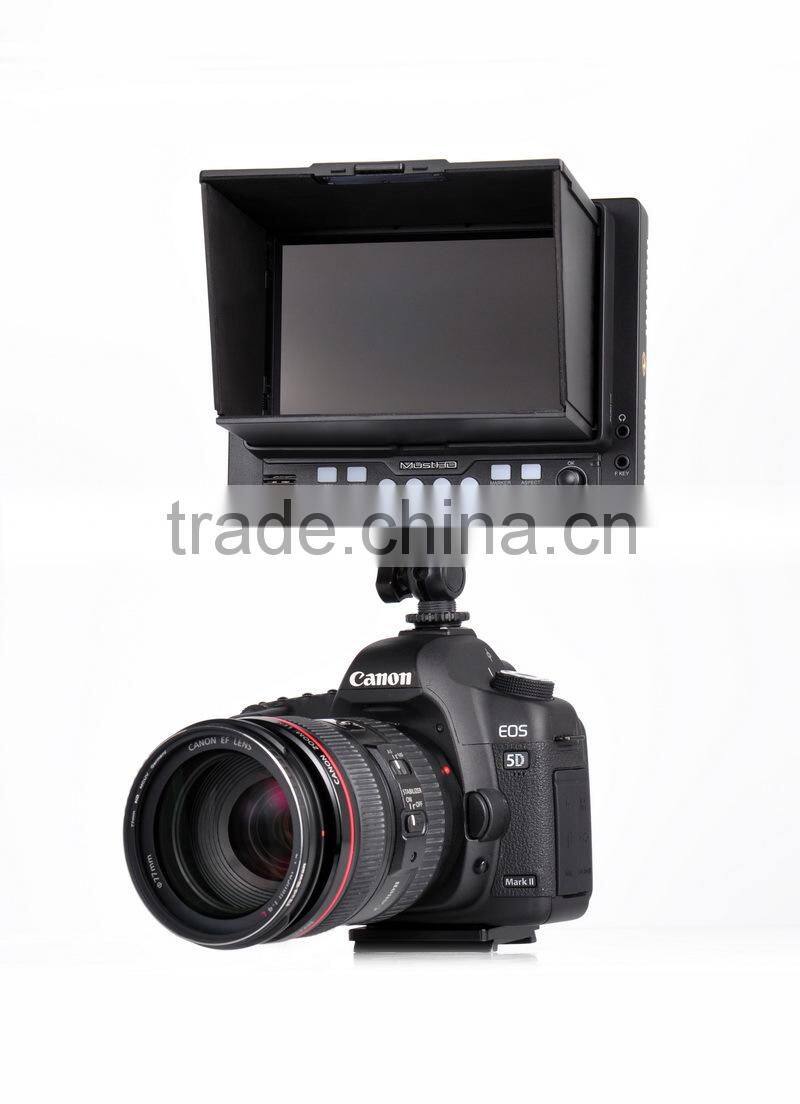

This 5.6 inch 1080p cheap lcd monitor with hdmi with a hot shoe mount and a handy HDMI cable so that you can simply take it out of the box, plug it in and away you go! Producing a fine and clear picture with a bright and full color display! Even when used in the sunlight this DSLR monitor is easy to view, using the sun-hood of unique design (which features easy install/uninstall, open/close). It can get power source by the attachable battery plate or DC-power adaptor (supplied).

Major Features:

5.6" LCD, 1280*800

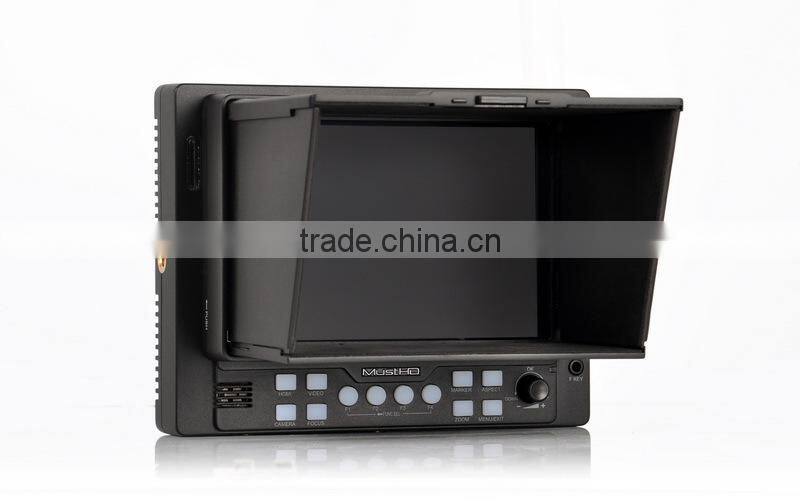

Unique Sun-Hood

HDMI Head Locker

Camera Button

Knob Control

Tally

Custom Preset Button

Battery Plate (easy to lock)

Focus Assist

Fit Marker

H/V Delay

Aspect

Over-scan

Exposure

False Color

Black and White

Blue only

Pixel to Pixel

Zoom

Freeze

Specifications:

LCD Size: 5.6 inches

Resolution: 1280*800

Pixel Pitch: 0.0945(H)x0.0945(W) mm

Color Depth: 262 K (6bit)

Viewing Angle: H: 170 degrees / V: 170 degrees

Luminance of white: 300cd (Center)

Contrast Ratio: 500:1

Display Area: 120.96 (H) x 75.60 (V)mm

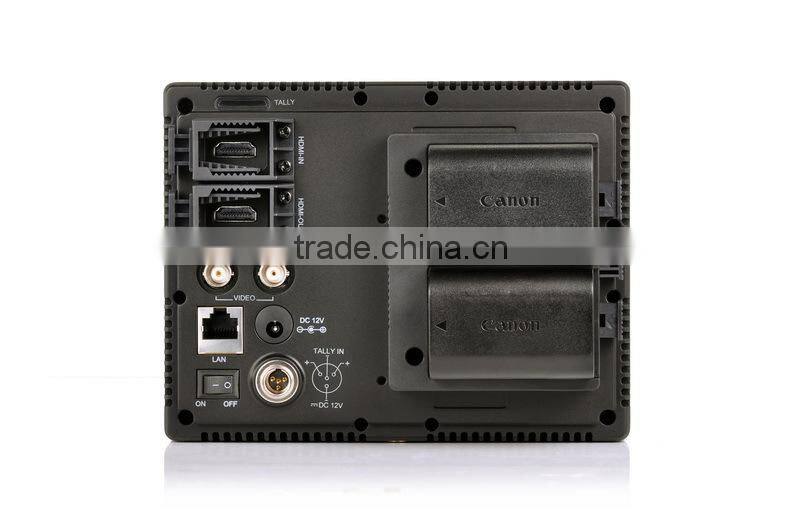

Input Connector:

1 x BNC - Video Input

1x HDMI - HDMI input

1x LAN(RJ45) - TALLY

Output Connector:

1 x BNC  Video output

1x HDMI HDMI output

Input Signal:

Analog: Video

HDMI: 480i/480p/576i/576p/720p/1080i/1080p

Audio Out: Analog Stereo (phone jack)

Internal speaker: (Mixed Mono)

Power: DC 6-20V

Power Consumption (Approx): 8 Watts (typical)

Operating Temperature: 0°C to 45°C (32°Fto 113°F)

Storage Temperature: -20°C to 60°C (14°Fto 140°F)

Main Body Dimension (mm/inch): 166x128x50.2 / 6.53x5.03x1.98

Weight: 695g / 1.53lbs

Box contents:

1. cheap lcd monitor with hdmi with sun-hood (detachable)

2. AC adaptor

3. User manual

4. F Key Cable Control

5. Shoe mount adaptor

6. Screws (for fixing the battery plate more tightly)

7. HDMI cable

8. Battery Plate-LP-E6

9. Battery Plate-F970 (optional)

10. Battery-D28S (optional)

11. Carry bag (optional)

Warranty:

2-years

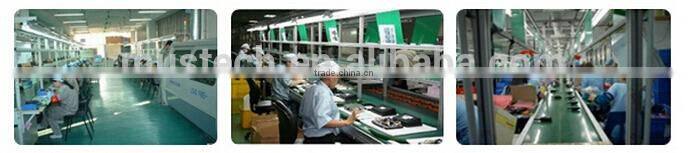

Production Line:

Why Us:

Original developer and manufacturer

8 years Experience in developing/ manufacturing/ OEM

Good materials, Strict quality Control

Competitive and Reasonable price

Short Leadtime

Best service and efficient communication

12 months warranty

CE, RoHS compliance

Our Team:

Please contact me freely if any question about this 5.6 inches LCD monitor with HDMI, or further information needed. We'll surely reply to you within 24 hours in working days.
