Idler

Idler photo-1
US$ 15 - 400 MOQ: 10 Units
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, conveyor idler roller
Material:
Other, Carbon steel
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI / TIANJIN / QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, conveyor idler roller
Material Other, Carbon steel
Material Feature Heat Resistant
Structure Roller Conveyor
Place of Origin China
Brand Name Creation
Model Number Creation
Voltage 220V
Power(W) 710kw
Dimension(L*W*H) 700*159*30
Certification BV / SGS
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Over 50 years engineering experience;
2. less resistance,longer life
3. ISO & CE certificate
4. DIN, EN, ISO, ASTM, GB



Conveyor spiral roller of belt conveyor steel rollers, carrier roller hot sale !



Jiaozuo Creation is special for belt conveyors, pipe conveyor, long-distance curved conveyor, mining conveyor, experienced technology and system solution in develop, engineering, manufacturing, installation, commission and EPC project. Over 50 years, Jiaozuo Creation is always developing in "professional, dedicated, innovation, excellence" business philosophy, one of leaders of the “Made-in-China” in the bulk material handling system such as metallurgy, electric power, ports, coal, mining, food and other industries. Jiaozuo Creation provided all kinds of belt conveyor about 3000 km, and over 20 EPC projects.

Jiaozuo Creation’s proud in this impressive numbers; our high quality, efficient, safe and reliable bulk conveying system is a positive energy for realizing powerful nation dream, and a reliable reputation in the industry.



So far, Jiaozuo Creation product services throughout the country, exported to the United States, Canada, Brazil, Peru, Indonesia, India, Australia, the Philippines, Vietnam, Myanmar, Russia, Germany, the united Arab emirates and other countries.



Over 50 years experience, outstanding performance, dedicated professional team, advanced engineer and manufacturing technology, excellent facilities and test methods, modern management and operative mechanism, which make our enterprise always full of vigor and vitality. As a national high-tech enterprise, Jiaozuo Creation is a conveying machinery enterprise technology center in Henan province, the standing director of China Heavy Machinery Association, material handling association director of Henan province, the head of south central committee of China Belt Conveyor Association; Jiaozuo Creation is the editor of belt conveyor design and one of the constitutors of the national BC standard. Jiaozuo Creation has obtained certificates including ISO9001-2000, ISO14001, OHSA18001, mining products safety certificate, national electric power industry electrical product certification and CE certification, etc.



Our main products: belt conveyor,pipe conveyor, sidewall belt conveyor, bucket elevator, vertical belt conveyor, mobile transfer conveyor, steel structure, conveyor tripper, pulley ,idler, belt cleaner,coal plow, we also have lots of experienced enginnering for designing the bulk handling system EPC priject for steel mill, coal handling system, bulk port and bulk material handling system, power station and cement plant.

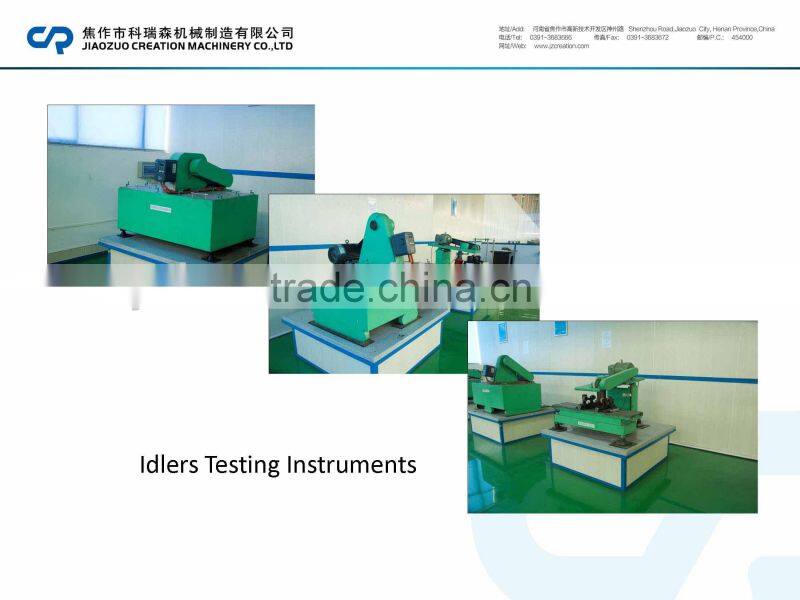

We have all kinds of advanced manufacture equipment more than 300 sets such as special roller and pulley manufacturing line, steel auto-shot-blasting and painting line and structure post-processing line and other large critical equipment, we also set up roller, pulley quality test center in advanced detection instruments, inspection is completed as the specification, enough experience design, manufacturing and packaging which ensure our product quality excellent, service high quality and efficient.





 Idler






Product Properties




Total Indicator Run out     :
Idler diameter 60 mm - 127 mm

Lengths (L) < 750 mm, TIR <  0.35 mm

Lengths (L) > 750 mm, TIR  <  0.00073 x L
  Idler diameter 133 mm – 178 mm
  Lengths (L) < 750 mm, TIR < 0.60 mm
  Lengths (L) > 750 mm, TIR < 0.001 x L
  Impact  Roller   , TIR < 1.0 mm
Dynamic Balance             :
ISO 1940

General roller : Max G 40

Weight roller   : Max G 6.3
Rolling Resistance          :
Carrier  (Belt speed 7 m/s)   : Froll Max 5.0 kN


Return (Belt speed 7 m/s) : Froll Max 3.5 kN

Surface Protection : Powder Coating   50 µ ~ 80 µ
Water Proof
:
Resist water pressure  (2 Bar)
Dust Proof : Resist dust infiltration (Min  200 µ)







Idler

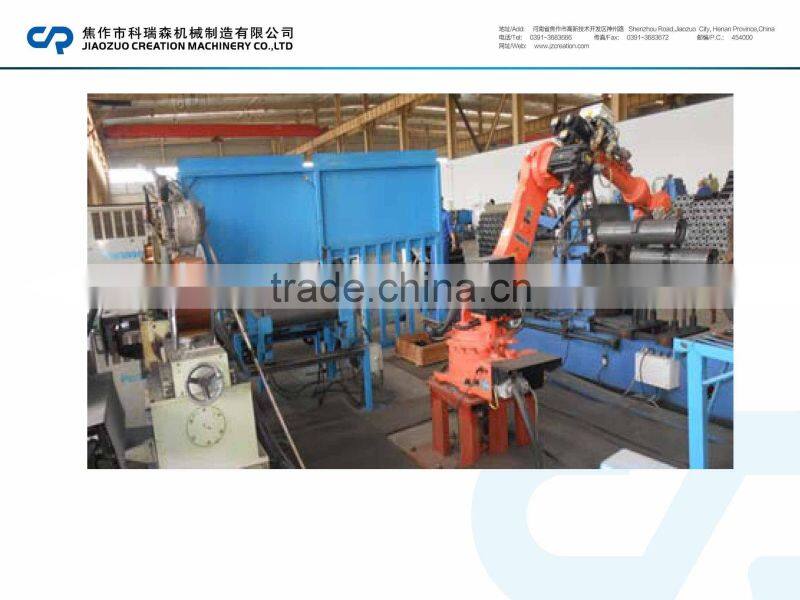

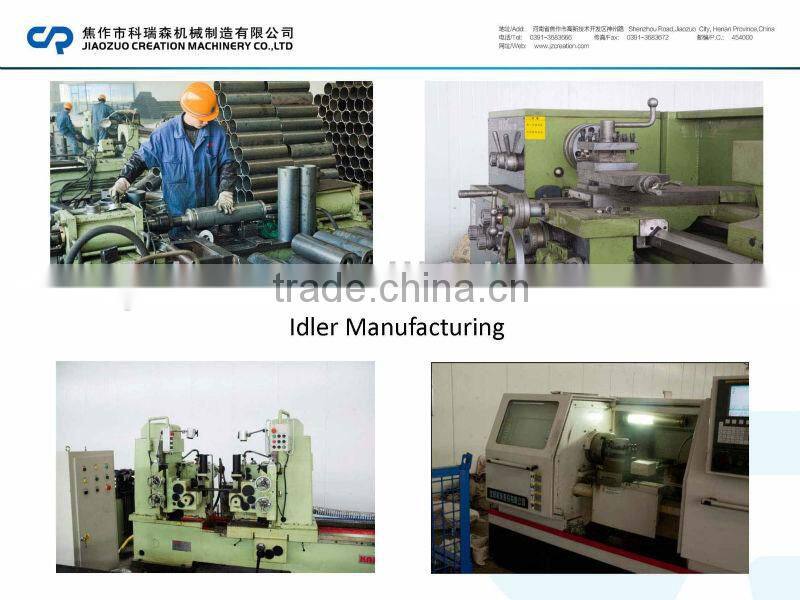

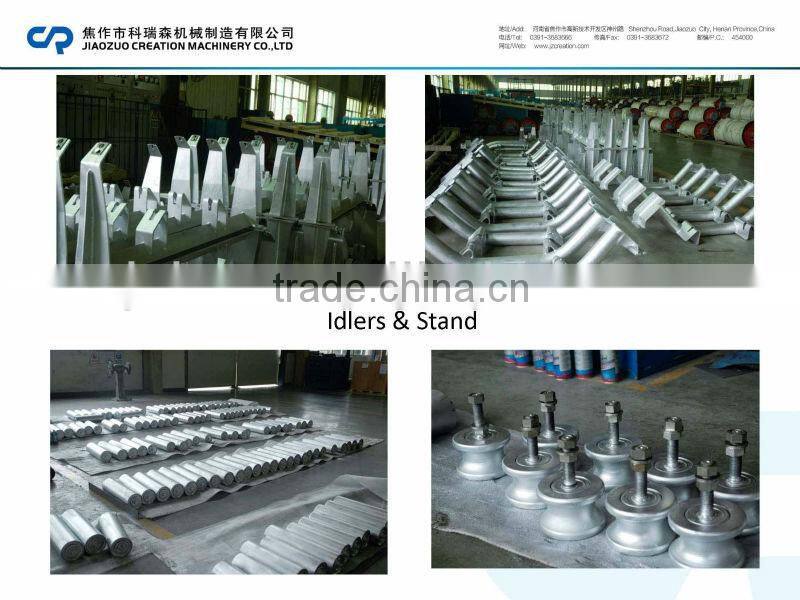

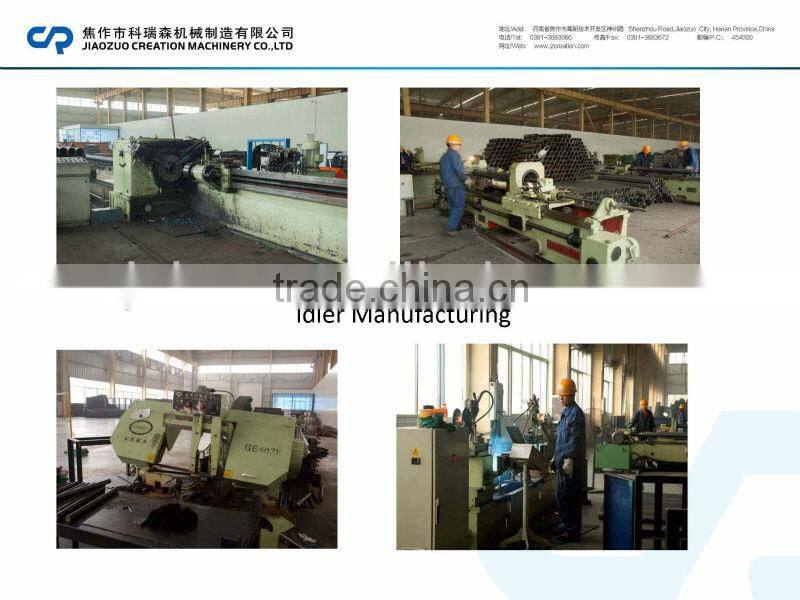

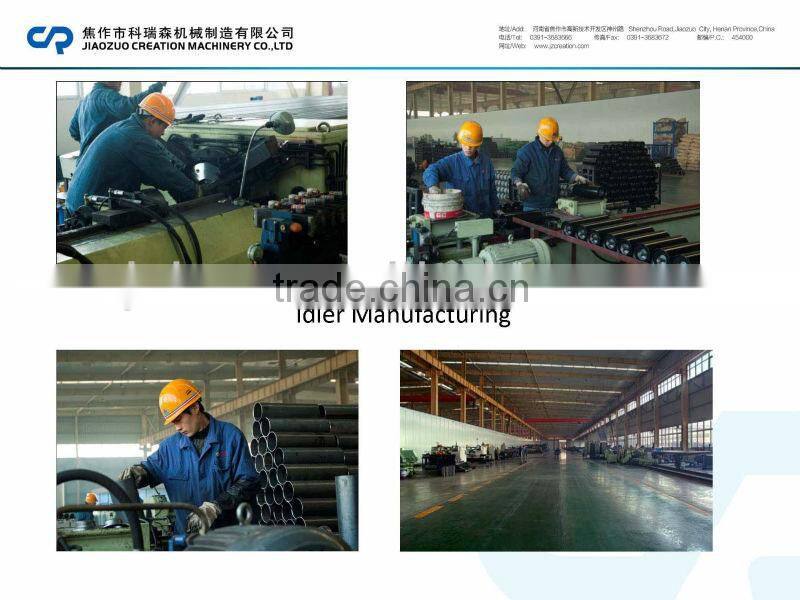

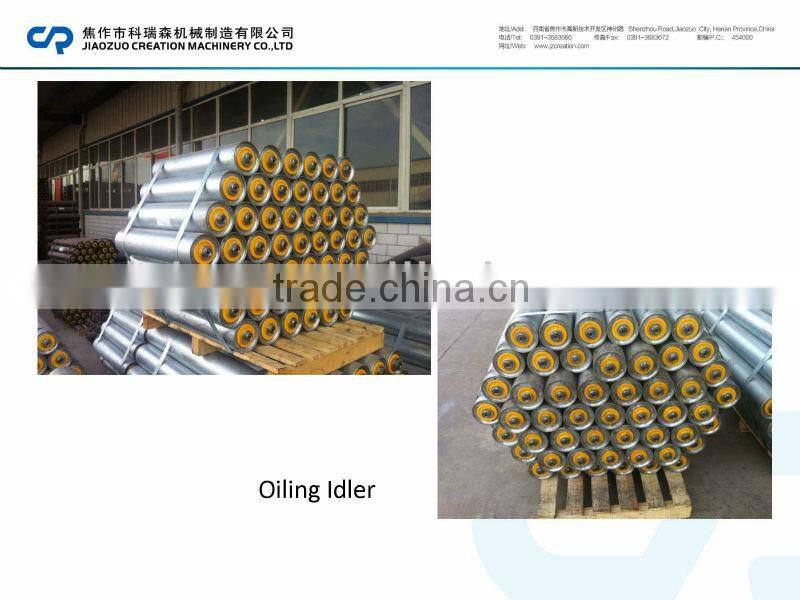

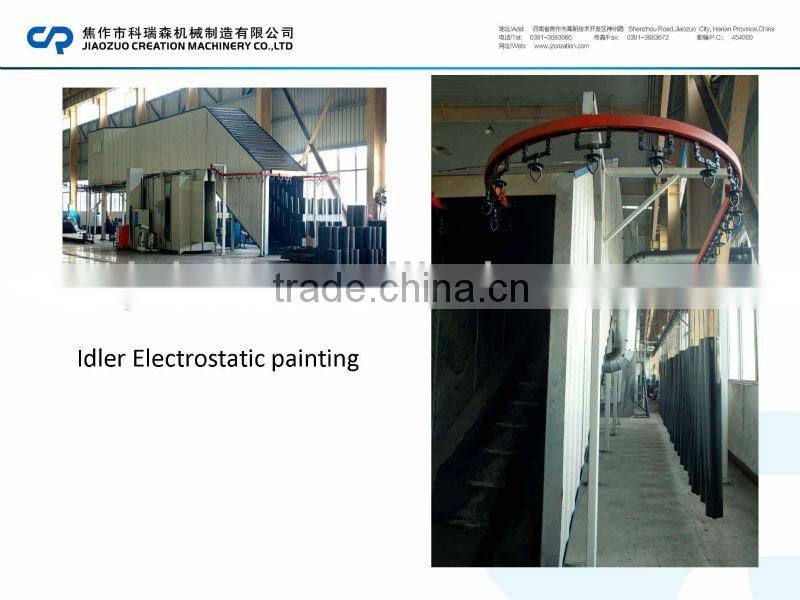

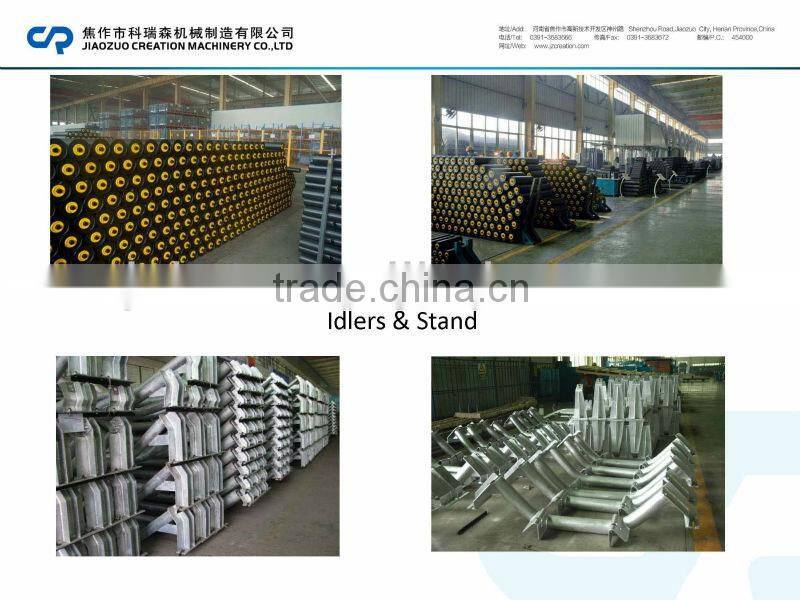

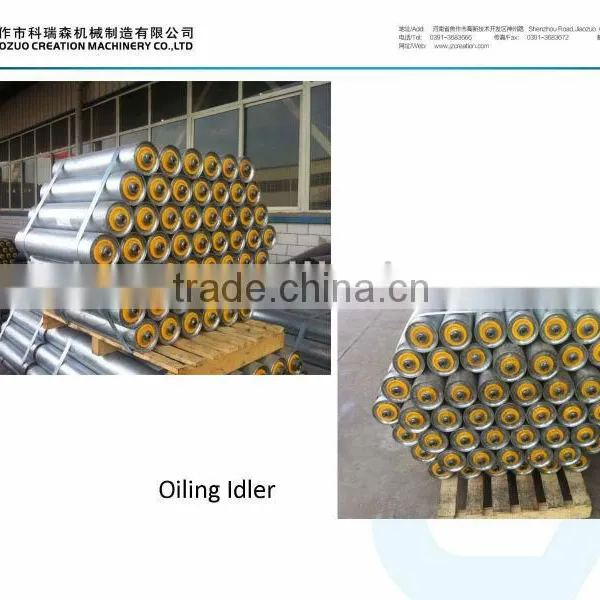

 Jiaozuo Creation C Manonveyor idler Manufacturing Photos



 IdlerIdlerIdlerIdlerIdlerIdler





IdlerIdler



 Idler

 IdlerIdler

             Certificate Honor

         Idler

         Idler
